INSTRUCTIONS FOR

2100W 230V 230mm

Angle Grinder

Stock No.83607

Part No.AG2100

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND

EFFECTIVE USE OF THIS PRODUCT.

GENERAL INFORMATION

These instructions accompanying the product are the original instructions. This document is part of the product, keep it

for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before

assembling, operating or maintaining this product.

This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and

contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions

contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.

AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy

of continuous improvement determines the right to make modifications without prior warning.

Table of Contents

Need help?

Do you have a question about the AG2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper AG2100

Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE .........6 SPECIFIC SAFETY INSTRUCTIONS FOR GRINDER USE...........7 SAFETY RECOMMENDATIONS FOR THE CORRECT USE OF SUPERABRASIVES ..8 CONNECTION TO THE POWER SUPPLY..............9...
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
Page 5: Introduction
This hand held power tool uses abrasive discs to grind metals or masonry. It is intended for D.I.Y and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock no ........................... 83607 Part no .......................... AG2100 Motor: Rated voltage ......................230V Rated frequency ....................50Hz Rated input ......................
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.
Page 7 HEALTH & SAFETY INFORMATION Ensure that mounted wheels and points are fitted in accordance with the manufacturer’s instructions; Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required; Ensure that the abrasive product is correctly mounted and tightened before use and run the tool at no-load for 30 seconds in a safe position, stop immediately if there is considerable vibration or if other defects are detected.
Page 8 HEALTH & SAFETY INFORMATION 10. Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other conditions that may affect its operation.
Page 9: Safety Recommendations For The Correct Use Of Superabrasives
HEALTH & SAFETY INFORMATION 5.4 SAFETY RECOMMENDATIONS FOR THE CORRECT USE OF SUPERABRASIVES. General. Superabrasives are breakable and shall therefore be handled with utmost care! The use of damaged or improperly mounted or used superabrasives is dangerous and can cause serious injuries. b.
Page 10 HEALTH & SAFETY INFORMATION 5.5 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. Caution: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug.
Page 11: Technical Description

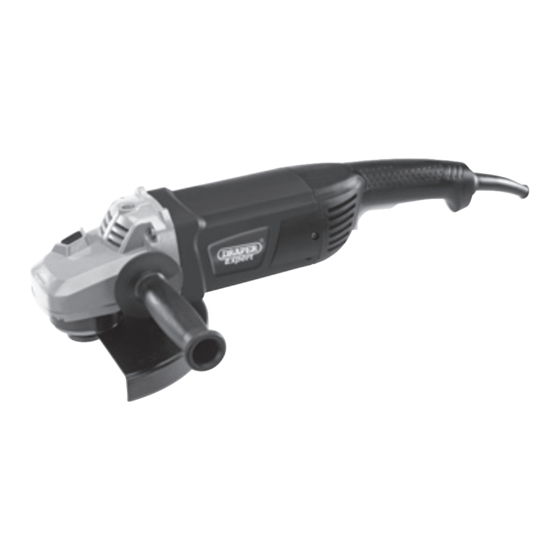

TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Switch lever Spindle lock button Hand grip Power Lead...
Page 12: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the grinder.
Page 13: Preparing The Grinder
NOTE: Never press the spindle lock button while the spindle is in motion. FIG.4 For cutting applications, and to comply to current legislation, it is necessary to replace the "grinding" guard supplied with this machine for the "cutting guard" *Stock number 18631 available from Draper.
Page 14: Basic Grinder Operations
BASIC GRINDER OPERATIONS 9.1 SWITCH - FIG. 4 FIG.4 The switch fitted to the grinder prevents accidental machine starting. 9.2 SWITCH OPERATING INSTRUCTIONS Lock "OFF The switch is protected against accidental starting by an interlocking lever (Fig.4) (lock off) which only allows the machine to operate under special conditions.
Page 15: Cutting
BASIC GRINDER OPERATIONS 9.5 CUTTING - FIG. 6 FIG.6 When cutting do not incline the grinder and do not jam the grinder on the work surface. The cutting edge of the disc must be in perfect condition (Fig.6). (For hard stone a diamond-tipped cutting wheel is recommended.) Cutting operations should only be attempted with the "cutting"...
Page 16: Optional Accessories
11. TROUBLESHOOTING 11.1 TROUBLESHOOTING WARNING: For your own safety, turn the switch off and remove the plug from the power supply socket. PROBLEM POSSIBLE CAUSE REQUIRED ACTION • Motor does not • Fuse. • 13 amp time delay fuse or start.
Page 17: Maintenance
12. MAINTENANCE 12.1 MAINTENANCE & PARTS REPLACEMENT Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets.
Page 18: Explanation Of Symbols
13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Warning! Warning! Read the instruction manual Wear dust mask. Warning! Warning! Wear ear defenders. Wear goggles. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Class II construction (Double insulated).
Page 19: Disposal
14. DISPOSAL 14.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDMKC0916...
