FA100-B7118
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA100-B7118 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN FA100-B7118

Summary of Contents for TYAN FA100-B7118

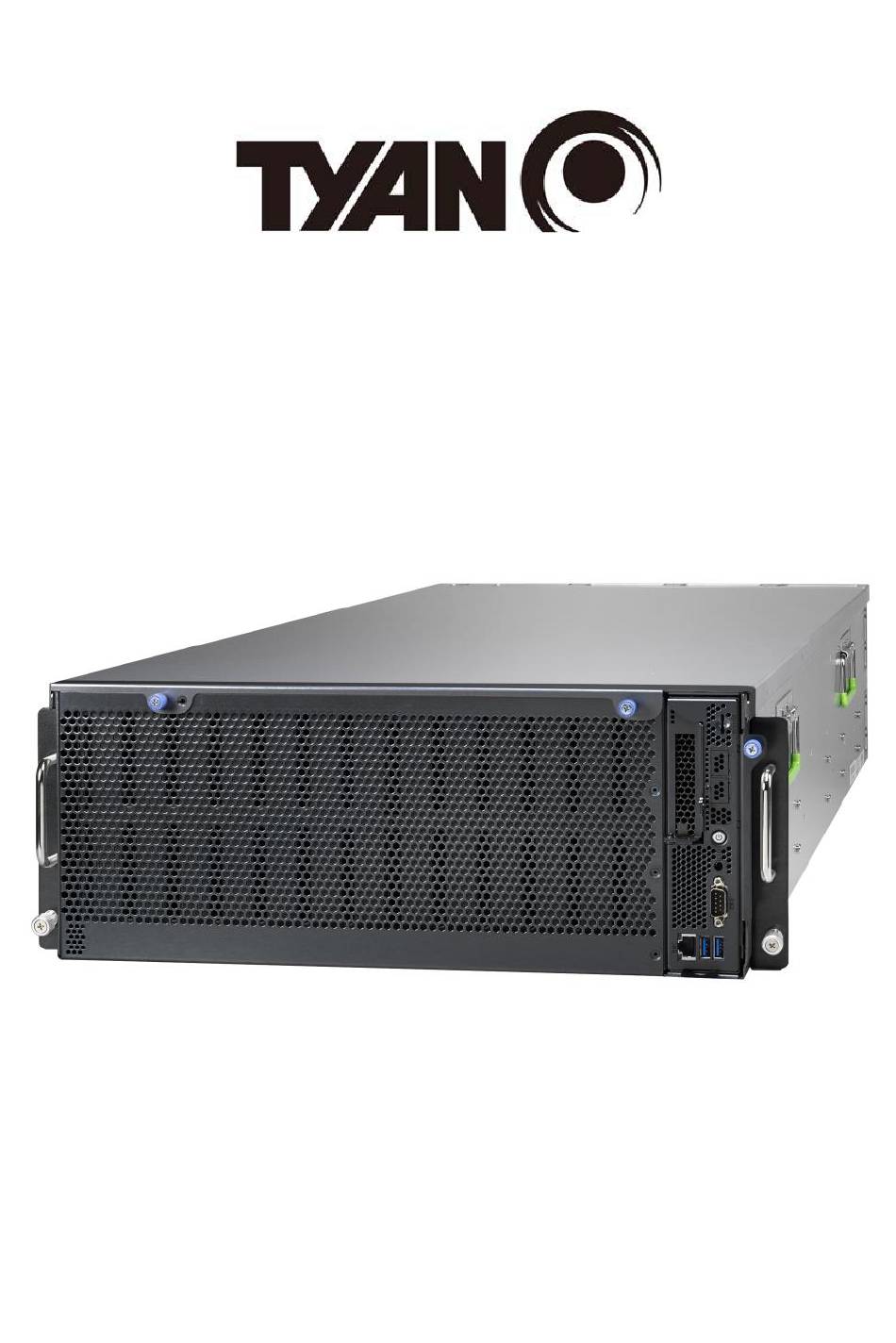

  • Page 1 FA100-B7118 Service Engineer’s Manual...
  • Page 2 TYAN products including liability or ® warranties relating to fitness for a particular purpose or merchantability. TYAN retains the right to make changes to produce descriptions and/or specifications at ® any time, without notice. In no event will TYAN...
  • Page 3 This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Notice for Europe (CE Mark) ● This product is in conformity with the Council Directive 2014/30/EU. http://www.tyan.com...
  • Page 4 Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. VCCI-A ● この装置は、クラスＡ情報技術装置です。この装置を家庭環境で使用すると電波妨 害を引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要 求されることがあります。 VCCI-A Safety: IEC/EN 60950-1 ● This equipment is compliant with CB/LVD of Safety: IEC/EN 60950-1. http://www.tyan.com...
  • Page 5 Chapter2: Setting Up This chapter Covers procedures on installing the CPU, memory modules, add on card and hard drives. Give an overview about the FA100-B7118 barebone from an overall angle. Chapter 3: Replacing the Pre-installed Components This chapter covers the removal and replacement procedures for pre-installed components.
  • Page 6 Safety and Compliance Information Before installing and using TYAN FA100-B7118, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.
  • Page 7 You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Do not attempt to move a fully loaded rack. Remove equipment from the rack before moving it. · Do not attempt to move a rack on an incline that is greater than 10 degrees from the horizontal. http://www.tyan.com...
  • Page 9 This will reduce the risk of personal injury, fire, or damage to the equipment. The total rack load should not exceed 80 percent of the branch circuit rating. Consult the electrical authority having jurisdiction over your facility wiring and installation requirements. http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...

  • Page 12: Table Of Contents

    Table of Contents Chapter 1: Overview ..............14 About the TYAN FA100-B7118 ........... 14 Features................15 Standard Parts List .............. 18 1.3.1 Box Contents ..............18 1.3.2 Accessories ..............18 About the Product ..............19 1.4.1 System Front View ............19 1.4.2...
  • Page 13 Appendix III: PCIE Slot Location and Setup Items Corresponding List ....................183 Appendix IV: Fan and Temp Sensors ........184 Appendix V: Cable Connection Tables ........189 Appendix VI: FRU Parts Table ........... 190 Appendix VII: Glossary ............... 191 Appendix VII: Technical Support ..........197 http://www.tyan.com...

  • Page 14: Chapter 1: Overview

    ® TYAN also offers the FA100-B7118 in a version that can support up to one hundred 2.5”/3.5” hot-swap SATAIII HDDs.FA100-B7118 uses rack-mountable 4U chassis featuring a robust structure and a solid mechanical enclosure. All of this provides FA100-B7118 the power and flexibility to meet the needs of nearly any server application.

  • Page 15: Features

    PFC, 80 plus Platinum Redundancy Socket Type / Q'ty LGA3647/ (2) Supported CPU Intel Xeon Scalable Processor Series Thermal Design Processor Max up to 165W Power (TDP) wattage Up to 10.4/9.6 GT/s with Intel System Bus UltraPath Interconnect (UPI) support http://www.tyan.com...
  • Page 16 Chipset Aspeed AST2500 Monitors temperature for CPU & Temperature memory & system environment Monitors voltage for CPU, memory, Voltage System Monitoring chipset & power supply Over temperature warning indicator, Fan & PSU fail LED indicator Others Watchdog timer support http://www.tyan.com...
  • Page 17 RoHS 6/6 Compliant Manual (1) Quick Installation Guide Package Contains Installation CD (1) TYAN Device Driver CD Barebone (1) FA100-B7118 Barebone NOTE: 1. The specifications are subject to change without prior notice. 2. Please visit our website for the latest specifications.

  • Page 18: Standard Parts List

    Standard Parts List This section describes FA100-B7118 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.3.1 Box Contents FA100-B7118 Chassis Kit  4U chassis ...

  • Page 19: About The Product

    About the Product The following views show you the product. 1.4.1 System Front View http://www.tyan.com...

  • Page 20: Led Definitions

    Blinking Green Solid Green Active Solid Green Solid Amber Link 1000 Mbps Blinking Green Solid Amber Active Solid Amber Solid Amber Link (10Gbps) Solid Amber Solid Amber Active 1.4.3 System Rear View 80x38mm hot-swap fans Power Supply2 Power Supply1 http://www.tyan.com...
  • Page 21 (PMBus reading), or hot spot temperature>95deg (PMBus reading), high power, high current, slow fan(<1200rpm). AC present Only 12VSB on(PS off) Blink GREEN or PS in Smart Redundant state Output ON and OK AMBER AC cord unplugged http://www.tyan.com...

  • Page 22: Internal View

    (1) M7118-3008-8I SAS IOC Mezzanine card System Fan Modules (with install 8 fans) 1600W Two Power Supply with pre-install (1) M1621F100-PDB Power Distribution Board (100) 3.5”/2.5” HDDs tray with pre-install (1) M1288F100-BP12-39 HDD Backplane Board (1) M1289F100-BP12-61 HDD Backplane Board http://www.tyan.com...

  • Page 23: Mb Module Internal View

    1.4.5 MB Module Internal View Explanation PCIE Module CPU Sockets Memory Slots OCP_LAN2/OCP Slot(B) OCP_LAN1/OCP Slot(A) PCIE 3.0 Slot x16 http://www.tyan.com...

  • Page 24: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 25: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to FA100-B7118 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 26: 2.1 Installing Motherboard Components

    CPUs, memory modules and Add-on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove FA100-B7118 chassis cover. Remove the screw from the top cover. Release the two thumb screws on the front side as illustrated in the image.
  • Page 27 Pinch the two thumb screw to pull the cover in the direction of the arrow to remove the top cover. Unscrew the top cover and release the latches to remove the top cover from http://www.tyan.com...
  • Page 28 Release the thumb screw on the left side as illustrated in the image. Release the thumb screw on the left side as illustrated in the image. Pull out the MB Module in the direction of arrow as illustrated in the image. http://www.tyan.com...

  • Page 29: Installing The Cpu And Heat Sink

    Installing the CPU and Heat sink Follow the steps below on installing CPUs and CPU heat sinks. Locate the CPU socket. Started at CPU0 and remove the CPU protection cap. Put the Narrow-Fabric processor on the Carrier hook clips. http://www.tyan.com...
  • Page 30 Carrier hook clips is stuck in the heatsink. Align the heatsink on the CPU socket by the guide pins and make sure the gold arrow is located in the correct direction. Then place the heatsink onto the top of the CPU socket. http://www.tyan.com...
  • Page 31 FA100-B7118 has equipped with two kinds of heatsinks on the CPU socket. One is made of copper and the other is made of aluminum. To secure the heatsink, use a T30 Security Torx to tighten the screws in a sequential order (1->2 -> 3 -> 4). When disassembling the heatsink, loosen the screws in reverse order (4 ->...

  • Page 32: Installing The Memory

    Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. 2. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...

  • Page 33: Memory

    2.1.4 Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard.  Supports up to (8+8) R-DDR-4 up to 2666MHz memory ...
  • Page 34 - Use the same # of ranks per DIMM 4. Un-buffered DIMM can offer slightly better performance than registerd DIMM if populating only a single DIMM per channel. 5. Always install with CPU0 Socket and DIMM_A0 Slot first, following the alphabetical order. http://www.tyan.com...

  • Page 35: Installing Expansion Cards

    You can install an Add-On card into the expansion slot which is available with riser card. The following instructions are for Add-On card installation. You may refer to the procedures below for the installation. 1. Remove the two screws secured of PCI-E bracket. 2. Remove the screw to slide the PCIE bracket. http://www.tyan.com...
  • Page 36 3. Insert the Add-On card to the M2091-R riser card. 4. Reinstall the riser bracket to the chassis and secure 3 screws. http://www.tyan.com...
  • Page 37 http://www.tyan.com...

  • Page 38: Installing Hard Drives

    2.1.6 Installing Hard Drives The FA100-B7118 supports 100 3.5”/2.5” Hard Drives. Follow these instructions to install a hard drive. Installing 3.5” HDD Press Locking lever to release the 3.5”/2.5” HDD tray. Pull the 3.5”/2.5” HDD tray out of the chassis.
  • Page 39 4. Reinsert the HDD tray into the chassis. http://www.tyan.com...
  • Page 40 Installing 2.5” HDD Press Locking lever to release the 3.5”/2.5” HDD tray. Pull the 3.5”/2.5” HDD tray out of the chassis. Remove the screw in the red circle. http://www.tyan.com...
  • Page 41 Place a 3.5” hard drive into the drive tray. Secure the 2.5” hard drive onto the drive tray. http://www.tyan.com...
  • Page 42 Reinsert the HDD tray into the chassis. http://www.tyan.com...

  • Page 43: Rack Mounting

    Sliding Rail Kit (inner rail) NOTE: Before mounting the TYAN FA100-B7118 in a rack, ensure that the right or left inner rail have been installed correctly. If not, the power cable module cannot be installed on the chassis kit.

  • Page 44: Installing The Server In A Rack

    2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN FA100-B7118 into an industry standard 19" rack. NOTE: Before mounting the TYAN FA100-B7118 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis into the rack.
  • Page 45 Rack Mounting the Server Pull out the outer rail to the full length. Lift the unit and then insert the inner slide rails into the Outer rails. Secure the two rotary screws on the mounting ears of the unit to the rack. http://www.tyan.com...

  • Page 46: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the S7118GMR Motherboard, M2091-R PCI-E Riser Board, M1289F100-BP12-61/ M1288F100-BP12-39 HDD Backplane Board, M7118F100-EXP12-10 Expander Backplane Board, M7118-3008-8I SAS IOC Mezzanine Card,M1621F100-PDB Power Distribution Board, System Fan and Power Supply, etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 47: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Chapter 2.1.1 to remove the cover of FA100-B7118. Replacing the Power Supply To replace the power supply follow these instructions. Press the tab as in the diagram from down to up.
  • Page 48 Replace a new single power and reinsert it into the power socket following the above steps in reverse. http://www.tyan.com...

  • Page 49: Replacing Power Distribution Board

    M1621F100-PDB Power Distribution Board. 1. Rotate to release the M1621F100-PDB Power Distribution Board. 2. Remove the one screw on both sides. 4. Follow the steps described earlier in reverse order to reinstall the power distribution board into the chassis. http://www.tyan.com...

  • Page 50: Power Distribution Board Features

    Power Distribution Board Features Form Factor 158mmx123mm,T=2.4mm  Connectors (3) 12V/5V Power Connectors 3.5.2 Power Distribution Board Pin Definition ATX Power Connector: J1 Signal Signal +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN http://www.tyan.com...
  • Page 51 24-Pin ATX Power Connector: (PSU1 and PSU2) Signal Signal +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN PSU1_SDA PSU1_A0 PSU1_SCL PSU1_A1 PSU1_PSON_N +12VSB PSU1_ALERT PSU1SMART_ON PSU1_RETURN_S PSU1_12VLS PSU1_12VS+ PSU1_PRESENT_N PSU1_PWOK PSU1_PS_KILL http://www.tyan.com...

  • Page 52: Replacing Expansion Cards

    Replacing Expansion Cards The FA100-B7118 has one preinstalled M2091-R riser card. The following instructions are for expansion card uninstallation. You may refer to the procedures below for the uninstallation. Remove the two screws secured of PCI-E bracket. Remove the screw to release the M2091-R riser card.

  • Page 53: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace a new fan. 1. Press the tab as in the image. Pull out the system fan in the direction to replace a new one. http://www.tyan.com...
  • Page 54 3. Push to detach the fan mask. 4. Push the latch in the direction as the arrow shown to release the fan from the iron holder. Push to detach the rubber screw for the system fan. http://www.tyan.com...
  • Page 55 6. Remove the three screws and rubber screw from the other side. Push the rubber screws to pull them out as illustrated in the image. 8. Detach all the four rubber screws and fan cage. http://www.tyan.com...
  • Page 56 Replace a new system fan and follow the procedure mentioned in the reverse order to reinstall it into the fan cage. http://www.tyan.com...

  • Page 57: Replacing Expander Backplane Board

    Press the tab as in the image to release the expander backplane board. Pinch the tab as in the image to pull out the expander backplane board. Remove the 4 screws to release the M7118-3008-8I SAS IOC Mezzanine Card. http://www.tyan.com...
  • Page 58 Remove the 7 screws to release the M7118F100-EXP12-10 Expander Backplane Board. http://www.tyan.com...
  • Page 59 3.8.1 SAS IOC Mezzanine Card Features Front View Rear View Form Factor 115x95mm  (2) OCP Connector(J1/J2) Connectors  (2) LSI3008 X2 http://www.tyan.com...
  • Page 60 3.8.2 Expander Backplane Board Features 328mm*138mm,T=2.3mm Form Factor  6x SATA Connector(J22,J23,J24,J25,J26,J27)  1x PCIe Connector(J6)  1x JTAG Connector(JTAG1) Connectors  6x PWR Connector(PWR1/PWR2/ PWR4/PWR5/PWR7)  2x OCP Connector(J4/J5) http://www.tyan.com...

  • Page 61: Replacing Hdd Backplane Board

    Replacing HDD Backplane Board Follow these instructions to replace the M1289F100-BP12-61/ M1288F100-BP12-39 HDD Backplane Board. Remove the one screw on the left side. Remove the one screw on the rear side. Removing the one screw on the front side. http://www.tyan.com...
  • Page 62 Remove the 27 pcs screws to release the HDD backplane from the chassis. 5. Lift up the HDD bracket. 6. Unscrew the 2 screws. http://www.tyan.com...
  • Page 63 Lift the Fan power bracket. Lift the Fan power bracket. Disconnect the rear UID LED cable. http://www.tyan.com...
  • Page 64 10. Unscrew the two thumb screws. 11. Take out the HDD backplane board. http://www.tyan.com...

  • Page 65: Hdd Back Plane Board Features

    3.9.1 HDD Back Plane Board Features Form Factor: 558mm*415mm *3.5mm Thickness 3.5mm Layer: 12 layers  Integrated I/O 4x Cooledge Connector  39x HDD Connectors(HDD1~HDD39) http://www.tyan.com...
  • Page 66 12 layers  Integrated I/O 4x Cooledge Connector  6x SAS to Expander Connector (J22/J23/J24/J25/J26/J27)  4x FAN Connector  1x 92P PSU Connector(J11)  4x 4P*4 PSU Connector J30/J32 (VCC5 Power Connector) J31/J39 VCC12 Power Connector) 61x HDD Connectors(HDD40~HDD99) http://www.tyan.com...

  • Page 67: Replacing The Motherboard

    Replacing the Motherboard After removing all of the aforementioned cables, follow these instructions to remove the motherboard from the chassis. 1. According to the screw location picture to unscrew to replace a new motherboard as illustrated. There are totally ten screws. http://www.tyan.com...

  • Page 68: Chapter 4: Motherboard Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 69: Board Image

    Board Image S7118GMR Motherboard This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. Mainboard Mechanical Drawing http://www.tyan.com...

  • Page 70: Block Diagram

    Block Diagram S7118 Block Diagram http://www.tyan.com...

  • Page 71: Board Parts, Jumpers And Connectors

    Board Parts, Jumpers and Connectors http://www.tyan.com...
  • Page 72 Board to Expender (COM_11) Connector (J55) ID LED Button Power Connector (PWR1) (IDLED_BTN1) Power Button/LED Power Connector (PWR2) (J7) TYAN Module Header ID LED (ID_LED1) (DBG_HD1) Jumpers ME Firmware Update ME Recovery Mode Jumper Jumper (3PHD1) (3PHD2) SLOTS PCIE Slots 1(x 16) OCP2.0 Slot B(OCP_LAN2)/...
  • Page 73 DBG_HD1: TYAN Module Header Signal Signal P3V3 FRAME_N LAD0 LAD1 PLT_RST_N LAD2 LAD3 CLK_33M DBG_SERIRQ DBG_PRES_N VCC3_AUX TPM_ADDR_MB PCH_TPM_PP_EN 3PHD_2: ME Recovery Mode Jumper Signal Signal FM_ME_RCVR_N Pin 1-2 Closed: Normal Mode (Default) Pin 2-3 Closed: ME Recovery Mode ID LED_BTN1: ID LED Button Header...
  • Page 74 P3V3_AUX ID_SW_L State Color Description Blue System identified System not identified NOTE: The ID LED can be activated remotely using IPMI. Please visit the TYAN Web Site at http://www.tyan.com to download the latest IPMI Configuration Guide for more details. http://www.tyan.com...
  • Page 75 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 76: Chapter 5: Bios Setup

    Select the previous value/setting of the field <+> Select the next value/setting of the field <F8> Load Fail Safe default configuration values of the menu <F3> Load the Optimal default configuration values of the menu <F4> Save and exit <Enter> Execute command or select submenu http://www.tyan.com...
  • Page 77 BIOS menus are continually changing due to continual BIOS updates over the product lifespan of the motherboard. The BIOS menus provided are current as of the date when this manual was written. Please visit TYAN’s website at http://www.tyan.com for information on BIOS updates available for this specific motherboard.

  • Page 78: Main Menu

    Platform Information It displays Platform information. Memory Information This displays the total memory size. System Date Adjust the system date. MM (Months): DD (Days): YYYY (Years) System Time Adjust the system clock. HH (24 hours format): MM (Minutes): SS (Seconds) http://www.tyan.com...

  • Page 79: Advanced Menu

    This formset allows the user to manage Intel® Virtual RAID on CPU Trusted Computing Trusted Computing settings. ACPI Settings System ACPI Parameters. Onboard Device Configuration Onboard Device and Function Configuration. S5 RTC Wake Settings S5 RTC Wake Settings Serial Port Console Redirection Serial Port Console Redirection http://www.tyan.com...
  • Page 80 PCI, PCI-X and PCI Express Settings Network Stack Configuration Network Stack Settings CSM Configuration CSM Configuration, Enable/Disable Option ROM execution setting, etc USB Configuration USB Configuration Parameters. Hardware Health Configuration Hardware Health Configuration NVDIMM ADR Configuration NVDIMM ADR Configuration http://www.tyan.com...
  • Page 81 5.3.1 iSCSI Configuration iSCSI Name The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Range is from 4 to 223. http://www.tyan.com...
  • Page 82 / PStack1 (Slot 5~8) / PStack2 (Slot 9~12) Step 2. Suppose the card is installed in CPU0 Slot 3, then Intel® VMD for Volume Management Device for PStack0 will be set to [Enabled]. Step 3. Save changes and reboot. http://www.tyan.com...
  • Page 83 5.3.3 Trusted Computing Security Device support Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Disabled / Enabled http://www.tyan.com...
  • Page 84 ACPI Settings Enable ACPI Auto Configuration Enable or disable BIOS ACPI Auto Configuration. Disabled / Enabled Enable Hibernation Enables or disables System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some OS. Disabled / Enabled http://www.tyan.com...
  • Page 85 5.3.5 Onboard Device Configuration NMI Button Enable or disable NMI button. Disabled / Enabled http://www.tyan.com...
  • Page 86 5.3.6 S5 RTC Wake Setting http://www.tyan.com...
  • Page 87 ::min ::sec specified. Select Dynamic Time, System will wake on the current time+ increase minute(s) Disabled / Fixed Time / Dynamic Time NOTE: Submenu will appear when Wake system from S5 is not set to [Disabled]. http://www.tyan.com...
  • Page 88 The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. NOTE: Console Redirection Settings menu only appear when Console Redirection was set to [Enabled]. Legacy Console Redirection Setting Legacy Console Redirection Setting http://www.tyan.com...
  • Page 89 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 90 VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 Redirection After BIOS POST The settings specify if bootloader is selected than Legacy console redirection is disabled before booting to Legacy OS. Default value is always enable means Legacy. Always Enable / Bootloader http://www.tyan.com...
  • Page 91 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 92 VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 Redirection After BIOS POST The settings specify if bootloader is selected than Legacy console redirection is disabled before booting to Legacy OS. Default value is always enable means Legacy. Always Enable / Bootloader http://www.tyan.com...
  • Page 93 5.3.7.3 Legacy Serial Redirection Settings Legacy Serial Redirection Port Select a COM port to display redirection of Legacy, OS and Legacy OPROM Messages COM1 / COM2 http://www.tyan.com...
  • Page 94 ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS http://www.tyan.com...
  • Page 95 View and Set basic properties of the SIO logical device. Like IO base, IRQ Range, DMA Channel and Device Mode [* Active*] Serial Port 2 View and Set basic properties of the SIO logical device. Like IO base, IRQ Range, DMA Channel and Device Mode http://www.tyan.com...
  • Page 96 / IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;DMA / IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;DMA / IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;DMA / IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;DMA http://www.tyan.com...
  • Page 97 LSI SAS Card 2 Enable/Disable LSI SAS Card2, Enable Load Option ROM When Select Enabled, Disabled Load Option ROM when Select Disabled. Disabled / Enabled OCP Slot: Empty Enable or Disable Option ROM execution for selected Slot. Disabled / Enabled http://www.tyan.com...
  • Page 98 Enables or Disables 64bit capable Devices to be decoded in Above 4G Address Space(Only if System supports 64 bit PCI decoding). Enabled / Disabled SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support. Enabled / Disabled http://www.tyan.com...
  • Page 99 3.3.11 Network Stack Configuration Network Stack Enable / Disable UEFI Network Stack. Disabled / Enabled http://www.tyan.com...
  • Page 100 Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Video Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Other PCI devices Determines OpRom execution policy for devices other than network, storage, or video Do not launch / legacy / UEFI http://www.tyan.com...
  • Page 101 USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support Enabled / Disabled Port 60/64 Emulation Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Enabled / Disabled http://www.tyan.com...
  • Page 102 Maximum time the device will take before it properly reports itself to the Host Controller. ‘AUTO’ uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Auto / Manual http://www.tyan.com...
  • Page 103 Hardware Health Configuration Auto Fan Control Auto Fan Control help. Disabled / Enabled BMC Alert Beep Enable/Disable BMC Alert Beep. On / Off PMBus Support PMBus Support Disabled / Enabled Number of PSU Number of PSU 1 / 1+1 http://www.tyan.com...
  • Page 104 5.3.14.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. NOTE 1: SDR can not be modified. Read only. http://www.tyan.com...
  • Page 105 http://www.tyan.com...
  • Page 106 http://www.tyan.com...
  • Page 107 5.3.15 NVDIMM ADR Configuration Assert ADR on Reset Assert ADR on Reset Disabled / Enabled Assert ADR on Shutdown Assert ADR on Shutdown Disabled / Enabled http://www.tyan.com...

  • Page 108: Platform Configuration Menu

    Platform Configuration Menu PCH Configuration Displays and provides option to change the PCH Settings. Miscellaneous Configuration Miscellaneous Configuration Server ME Configuration Configure Server ME technology Parameters http://www.tyan.com...
  • Page 109 SATA devices and settings PCH sSATA Configuration sSATA devices and settings USB Configuration USB Configuration Settings PCH DFX Configuration PCH DFX Configuration Options PCH state after G3 Select S0/S5 for ACPI state after a S3 S0 / S5 / Last State http://www.tyan.com...
  • Page 110 Control the PCI Express Root Port Disabled / Enabled PCIE ASPM PCI Express Root port ASPM Setting Disable ASPM / ASPM L1 / ASPM Auto L1 Substates PCI Express L1 Substates settings. Disabled / L1.1 / L1.2 / L1.1 & L1.2 http://www.tyan.com...
  • Page 111 PCIe Speed PCI Express Root Port Completion Timer TO settings Auto / Gen1 / Gen2 / Gen3 Max Payload Size PCIE Max Payload Size Selection. MPL 128B / MPL 256B 5.4.1.2 PCH SATA Configuration Submenu http://www.tyan.com...
  • Page 112 http://www.tyan.com...
  • Page 113 Indentify the SATA port is connected to Solid State Drive or Hard Disk Drive AHCI / RAID SATA Port 0/1/2/3/4/5/6/7 Port 0/1/2/3/4/5/6/7 Disabled / Enabled Hot Plug Enable/Disable SATA Ports Hot Plug Support. Disabled / Enabled Configure as eSATA Configures port as External SATA (eSATA) Disabled / Enabled http://www.tyan.com...
  • Page 114 Indentify the SATA port is connected to Solid State Drive or Hard Disk Drive Hard Disk Drive / Solid State Drive SATA Topology Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2 Unknown / ISATA / Direct Connect / Flex / M2 http://www.tyan.com...
  • Page 115 5.4.1.3 PCH sSATA Configuration Submenu http://www.tyan.com...
  • Page 116 Indentify the SATA port is connected to Solid State Drive or Hard Disk Drive Hard Disk Drive / Solid State Drive SATA Topology Indentify the Secondary SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2 Unknown / ISATA / Direct Connect / Flex / M2 http://www.tyan.com...
  • Page 117 USB Configuration Submenu XHCI Idle L1 Enable XHCI Idle L1. Disabled to workaround USB3 hot plug will fail after 1 hot plug removal. Please put the system to G3 for the new settings to take effect. Disable / Enable http://www.tyan.com...
  • Page 118 Platform-POR / Enabled / Disabled Enable/Disable ADR Timer Held-off for DEBUG PURPOSES ONLY! Platform-POR / Enabled / Held-off ADR timer expire time Select proper ADR timer value: 25uS,50uS,100uS or 0. Platform-POR / 25 uS / 50 uS / 100 uS / 0 uS http://www.tyan.com...
  • Page 119 Select proper ADR timer multiplier: x1,8,24,40,56,64,72,80,88,96. x1 / x8 / x24 / x40 / x56 / x64 / x72 / x80 / x88 /x96 5.4.2 Miscellaneous Configuration Submenu Active Video Select active Video type Auto / Offboard Device / PCIE Device / Onboard Device http://www.tyan.com...
  • Page 120 5.4.3 Server ME Configuration Submenu Only Read http://www.tyan.com...

  • Page 121: Socket Configuration

    Displays and provides option to change the UPI Settings Memory Configuration Displays and provides option to change the Memory Settings IIO Configuration Displays and provides option to change the IIO Settings Advance Power Management Configuration Displays and provides option to change the Power Management Settings http://www.tyan.com...
  • Page 122 Disabled / Enabled Execute Disable Bit When disabled, forces the XD feature flag to always return 0. Disabled / Enabled Enable Intel(R) TXT Enables Intel(R) TXT Disabled / Enabled Enables the Vanderpool Technology, takes effect after reboot. Disabled / Enabled http://www.tyan.com...
  • Page 123 Lock or Unlock chipset Disabled / Enabled Hardware Prefetcher MLC Streamer Prefetcher (MSR 1A4h Bit [0]) Disabled / Enabled Adjacent Cache Prefetch MLC Spatial Prefetcher (MSR 1A4h Bit [1]) Disabled / Enabled Extended APIC Enable/disable extended APIC support Disabled / Enabled http://www.tyan.com...
  • Page 124 Per stack mmioh resource assignments are multiples of the granularity where 1 unit Per stack is the default allocation. 1G / 4G / 16G / 64G / 256G / 1024G Numa Enable or Disable non uniform Memory Access. (NUMA) Enabled / Disabled http://www.tyan.com...
  • Page 125 Enable – Set the c_L0p_en, Disable – Reset it, Auto – Auto decides based on Si Compatibility Disable/Enable/Auto Link L1 Enable Enable – Set the c_L1_en, Disable – Reset it, Auto – Auto decides based on Si Compatibility Disable/Enable/Auto http://www.tyan.com...
  • Page 126 5.5.3.1 UPI Status Configuration Submenu http://www.tyan.com...
  • Page 127 Maximum Memory Frequency Selections in Mnz. Do not select Reserved Auto / 1866 / 2133 / 2400 / 2666 Memory Topology Displays memory topology with Dimm population information Memory RAS Configuration Displays and provides option to change the Memory Ras Settings http://www.tyan.com...
  • Page 128 5.5.4.1 Memory Topology Configuration Submenu http://www.tyan.com...
  • Page 129 Partial mirror mode will enable the required size of memory to be mirrored. If rank sparing is enabled partial mirroring will not take effect. Mirror Enable will disable XPT Prefetch. Disabled / Enabled Memory Rank Sparing Enable/Disable Memory Rank Sparing Disabled / Enabled http://www.tyan.com...
  • Page 130 Selects the address mode between System Physical Address (or) Reverse Address Disabled / Enabled ADDDC Sparing Enable/Disable ADDDC Sparing Disabled / Enabled Patrol Scrub Enable/Disable Patrol Scrub Disable / Enabled 5.5.5 IIO Configuration Socket0 Configuration Socket 0 Configuration Socket1 Configuration Socket 1 Configuration http://www.tyan.com...
  • Page 131 Enable/Disable PCIe ACPI Hot Plug globally, or allow per-port control. When Disabled, MSI is generated on HP event. When Enabled, _HPGPE message is generated. Disabled / Enabled PCIe Access Control Services Enable or disable Access Control Services (ACS) in PCIe Downstream Switch Port. Disabled / Enabled http://www.tyan.com...
  • Page 132 Selects PCIe port Bifuncation for selected slot (s) X4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 / Auto Socket 0 PcieBr1D00F0 – Port 1A Settings related to PCI Express PortS (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A) Socket 0 PcieBr2D00F0 – Port 2A Settings related to PCI Express PortS (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A) http://www.tyan.com...
  • Page 133 This option disables the Link so that the no training occurs but the DFG space is still active Disabled / Enabled Link Speed Choose Link Speed for this PCIe port Auto / Gen1 (2.5GT/s) / Gen2 (5GT/s) / Gen3 (8 GT/s) http://www.tyan.com...
  • Page 134 HP capable. Disable is used to disable the port and hide its CFG space. Auto / Disabled / Enabled Hot Plug Capable This option specifies if the link is considered Hot Plug capable. Disabled / Enabled http://www.tyan.com...
  • Page 135 Auto / Gen1 (2.5GT/s) / Gen2 (5GT/s) / Gen3 (8 GT/s) PCI-E ASPM Support This option enables / disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled L0s Support When disabled, IIO never puts its transmitter in L0s state Disabled / Enabled http://www.tyan.com...
  • Page 136 Socket 1 PcieBr1D00F0 – Port 1A Settings related to PCI Express PortS (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A) Socket 1 PcieBr1D02F0 – Port 1C Settings related to PCI Express PortS (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A) Socket 1 PcieBr2D00F0 – Port 2A Settings related to PCI Express PortS (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A) http://www.tyan.com...
  • Page 137 HP capable. Disable is used to disable the port and hide its DFG space. Auto / Disabled / Enabled Hot Plug Capable This option specifies if the link is considered Hot Plug capable. Disabled / Enabled http://www.tyan.com...
  • Page 138 Auto / Gen1 (2.5GT/s) / Gen2 (5GT/s) / Gen3 (8 GT/s) PCI-E ASPM Support This option enables / disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled L0s Support When disabled, IIO never puts its transmitter in L0s state Disabled / Enabled http://www.tyan.com...
  • Page 139 This option disables the Link so that the no training occurs but the DFG space is still active Disabled / Enabled Link Speed Choose Link Speed for this PCIe port Auto / Gen1 (2.5GT/s) / Gen2 (5GT/s) / Gen3 (8 GT/s) http://www.tyan.com...
  • Page 140 HP capable. Disable is used to disable the port and hide its CFG space. Auto / Disabled / Enabled Hot Plug Capable This option specifies if the link is considered Hot Plug capable. Disabled / Enabled http://www.tyan.com...
  • Page 141 This option enables / disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled L0s Support When disabled, IIO never puts its transmitter in L0s state Disabled / Enabled 5.5.5.2.4 Socket1 - Port 2B Submenu http://www.tyan.com...
  • Page 142 Auto / Gen1 (2.5GT/s) / Gen2 (5GT/s) / Gen3 (8 GT/s) PCI-E ASPM Support This option enables / disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled L0s Support When disabled, IIO never puts its transmitter in L0s state Disabled / Enabled http://www.tyan.com...
  • Page 143 Choose Link Speed for this PCIe port Auto / Gen1 (2.5GT/s) / Gen2 (5GT/s) / Gen3 (8 GT/s) PCI-E ASPM Support This option enables / disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled http://www.tyan.com...
  • Page 144 Disabled / Enabled 5.5.5.3 Intel® VT for Directed I/O (VT-d) Submenu Intel® VT for Directed I/O (VT-d) Enable/Disable Intel® Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI Tables. Disabled / Enabled http://www.tyan.com...
  • Page 145 5.5.5.4 Intel® VMD technology Submenu http://www.tyan.com...
  • Page 146 5.5.5.4.1 Intel® VMD for Volume Management Socket0/1 Submenu VMD Config for PStack 0/1/2 Intel® VMD for Volume Management D Enable/Disable Intel® Volume Management Device Technology in this Stack. Disabled / Enabled http://www.tyan.com...
  • Page 147 P State Control Configuration Sub Menu, include Turbo, XE and etc. Hardware PM State Control Hardware P-State setting CPU C State Control CPU C State setting Package C State Control Package C State setting CPU T State Control CPU T State setting http://www.tyan.com...
  • Page 148 Max Performance / Max Efficient / Set by Intel Node Energy Efficient Turbo Energy Efficient Turbo Disable, MSR 0x1FC [19] Disabled / Enabled Turbo Mode Enable/Disable processor Turbo Mode (requires EMTTM enabled too). Disabled / Enabled CPU Flex Ratio Override Enable/Disable CPU Flex Ratio Programming Disabled / Enabled http://www.tyan.com...
  • Page 149 Disable: Hardware choose a P-state based on OS Request (Legacy P-States) Native Mode: Hardware choose a P-state based on OS guidance Out of Band Mode: Hardware autonomously choose a P-state (No OS guidance) Disable / Native Mode / Out of Band Mode http://www.tyan.com...
  • Page 150 Auto / Enable / Disable Enhanced Halt State (C1E) Enables the Enhanced C1E state of the CPU, takes effect after reboot Enabled / Disabled OS ACPI Cx Report CC3/CC6 to OS ACPI C2 or ACPI C3 ACPI C2 / ACPI C3 http://www.tyan.com...
  • Page 151 5.5.5.4 Package C State Control Submenu Package C State Package C State Limit C0/C1 state / C2 state / C6(non Retention) state / C6(Retention) state / No Limit / Auto http://www.tyan.com...

  • Page 152: Cpu T State Control Configuration

    CPU T State Control Configuration Software Controlled T-States Enable/Disable Software Controlled T-States Disabled / Enabled http://www.tyan.com...

  • Page 153: Server Mgnt Configuration

    OS Watchdog Timer If enabled, starts a BIOS timer which can only be shut off by Intel Management Software after the OS loads. Helps determine that the OS successfully loader or follows the OS Boot watchdog Timer policy. Disabled / Enabled http://www.tyan.com...
  • Page 154 Do Nothing / Reset / Power Down / Power Cycle BMC Logo Enable or Disable BMC Logo Disabled / Enabled System Event Log Press < Enter> to change the SEL event log configuration. BMC network configuration Configure BMC network parameters http://www.tyan.com...
  • Page 155 Choose options for reactions to a full SEL. Do Nothing / Erase Immediately Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Both / Disabled / Error Code / Progress Code http://www.tyan.com...
  • Page 156 5.7.2 BMC Network Configuration http://www.tyan.com...
  • Page 157 Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp Configure IPV6 Support Management Port 1 IPV6 Support Enable or Disable LAN1 IPV6 Support Disabled / Enabled Management Por 2 IPV6 Support Enable or Disable LAN1 IPV6 Support Disabled / Enabled http://www.tyan.com...

  • Page 158: Security

    Administrator Password Install or change the password. User Password Install or change the password. Security Frozen Mode Enable or disable HDD security freeze lock. Disable to support secure erase function. Disabled / Enabled Secure Boot Customizable Secure Boot settings http://www.tyan.com...
  • Page 159 System mode is User/Deployed, and CSM function is disabled Enabled / Disabled Secure Boot Mode Secure Boot mode selector. ’Custom’ mode enables users to change Image execution policy and manage secure boot keys. Standard / Custom Key Management Enables experienced users to modify Secure Boot variables http://www.tyan.com...
  • Page 160 Allow the image to run in Secure Boot mode. Enroll SHA256 hash of the binary into Autorized Signature Database (db) Platform Key (PK) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256,384,512 2. Authenticated UEFI Variable http://www.tyan.com...
  • Page 161 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Authorized TimeStamps Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) http://www.tyan.com...
  • Page 162 Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256,384,512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test http://www.tyan.com...

  • Page 163: Boot

    Wait For “ESC” If Error Wait for “ESC” key to be pressed if error occurs. Disabled / Enabled Endless Boot Enable or disable Endless Boot. Disabled / Enabled Boot Option #1/#2/#3/#4/#5/#6 Select the first boot device. Device Name / Disabled http://www.tyan.com...
  • Page 164 Set the order of the legacy devices in this group 5.9.1 Add New Boot Option Configuration Add boot option Specify name for new boot option Path for boot option Enter the path to the boot option in the format Fsx:\path\filename.efi Create Creates the newly formed boot option http://www.tyan.com...
  • Page 165 5.9.2 Delete Boot Option Configuration Delete Boot Option Sets the system boot order. Device Name / Select one to Delete http://www.tyan.com...

  • Page 166: Save & Exit

    Discard Changes and Reset Reset system setup without saving any changes. Save Options Read only. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard changes done so far to any of the setup options. http://www.tyan.com...
  • Page 167 Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Device Name http://www.tyan.com...

  • Page 168: Chapter 6: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 169: Amibios Post Code (Aptio)

    Description 0x00 Note used Progress Codes 0x01 Power on. Reset type detection (soft/hard). 0x02 AP initialization before microcode loading 0x03 North Bridge initialization before microcode loading 0x04 South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading http://www.tyan.com...
  • Page 170 Pre-memory CPU initialization (CPU module specific) 0x15 Pre-memory North Bridge initialization is started Pre-Memory North Bridge initialization (North Bridge module 0x16 specific) Pre-memory North Bridge initialization (North Bridge module 0x17 specific) Pre-Memory North Bridge initialization (North Bridge module 0x18 specific) http://www.tyan.com...
  • Page 171 CPU post-memory initialization. System Management Mode 0x36 (SMM) initialization 0x37 Post-Memory North Bridge initialization is started. Post-Memory North Bridge initialization (North Bridge module 0x38 specific) Post-Memory North Bridge initialization (North Bridge module 0x39 specific) Post-Memory North Bridge initialization (North Bridge module 0x3A specific) http://www.tyan.com...
  • Page 172 Reset PPI is not available. 0x5C – 0x5F Reserved for future AMI error codes S3 Resume Progress Codes S3 Resume is started (S3 Resume PPI is called by the DXE 0xE0 IPL). 0xE1 S3 Boot Script execution 0xE2 Video repost http://www.tyan.com...
  • Page 173 Recovery capsule is not found. 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes PEI Beep Codes # of Beeps Description Progress Codes Memory not installed Memory was installed twice (installPEIMemory routine in PEI Core called twice). Recovery started http://www.tyan.com...
  • Page 174 North Bridge DXE initialization (North Bridge module specific) 0x6F North Bridge DXE initialization (North Bridge module specific) 0x70 South Bridge DXE initialization is started. 0x71 South Bridge DXE SMM initialization is started. 0x72 South Bridge devices initialization 0x73 South Bridge DXE initialization (South Bridge module http://www.tyan.com...
  • Page 175 Console output devices connect 0x98 Console Input devices connect 0x99 Super IO initialization 0x9A USB initialization is started. 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started http://www.tyan.com...
  • Page 176 PCI bus hot plug 0xB6 Clean-up of NVRAM 0xB7 Configuration Reset (reset of NVRAM settings) 0xB8 – 0xBF Reserved for future AMI codes 0xC0 – 0xCF OEM BDS initialization codes DXE Error Codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error http://www.tyan.com...
  • Page 177 Platform PCI resource requirements cannot be met. ACPI/ASL Checkpoints Status Code Description 0x01 System is entering S1 sleep state. 0x02 System is entering S2 sleep state. 0x03 System is entering S3 sleep state. 0x04 System is entering S4 sleep state. http://www.tyan.com...
  • Page 178 System is waking up from the S3 sleep state. 0x40 System is waking up from the S4 sleep state. System has transitioned into ACPI mode. Interrupt controller 0xAC is in APIC mode. System has transitioned into ACPI mode. Interrupt controller 0xAA is in APIC mode. http://www.tyan.com...

  • Page 179: Appendix I: How To Recover Uefi Bios

    UEFI recovery bootloader that would prevent the recovery process itself from working. In no event shall Tyan be liable for direct, indirect, incidental, special or consequential damages arising from the BIOS update or recovery.
  • Page 180 “Flash update completed. Press any key to reset the system” displayed on screen. Remove the USB disk and reboot. If your system does not have video output or the POST code halts at “FF” on the right-lower portion of the screen, please contact Tyan representatives for RMA service. http://www.tyan.com...

  • Page 181: Appendix Ii: Installing Io Plate For Ocp Card

    Appendix II: Installing IO Plate for OCP Card Follow these instructions to install the IO Plate for OCP Card. Here shows how to install the IO Plate for the dual-port LAN card M7106-X557-2T2E. Unscrew the riser card bracket. Remove the riser card bracket from the chassis. http://www.tyan.com...
  • Page 182 3. Use a screwdriver to break the semi-shearing for the OCP card slot. Discharge the metal slug. The IO plate for LAN card has already secured on the OCP card slot. 7. Insert the LAN card into the OCP slot. 8. Secure the LAN card to the chassis http://www.tyan.com...

  • Page 183: Appendix Iii: Pcie Slot Location And Setup Items Corresponding List

    PCIE slot populates riser card BIOS Setup- IIO PCIE Reference on PCIE Slot Location Configuration PORT Socket0 IOU0(IIO Chapter 4.4 OCP_LAN1,OCP_LAN2 Configuration PCIe Br1) Board Parts, Jumpers and Socket0 IOU0(IIO PCIE_1 Connectors Configuration PCIe Br2) Socket1 IOU1(IIO Motherboard Configuration PCIe Br2) Components http://www.tyan.com...

  • Page 184: Appendix Iv: Fan And Temp Sensors

    (rpm) Temp Sensor: SYS_Air_Outlet(RT3) P1_MOS_Area(RT2) CPU0_FAN/CPU1_FAN. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. http://www.tyan.com...
  • Page 185 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 186 http://www.tyan.com...
  • Page 187 http://www.tyan.com...
  • Page 188 Fan speed of SYS_FAN_1 SYS_FAN_2 Fan speed of SYS_FAN_2 SYS_FAN_3 Fan speed of SYS_FAN_3 SYS_FAN_4 Fan speed of SYS_FAN_4 SYS_FAN_5 Fan speed of SYS_FAN_5 SYS_FAN_6 Fan speed of SYS_FAN_6 SYS_FAN_7 Fan speed of SYS_FAN_7 SYS_FAN_8 Fan speed of SYS_FAN_8 http://www.tyan.com...

  • Page 189: Appendix V: Cable Connection Tables

    M1289F100-BP12-61 HDD BP to FAN Holder HDD BP Connect to FAN holder → FAN15 FAN48 → FAN26 FAN37 → FAN37 FAN26 → FAN48 FAN15 2. FA100-B7118 LED Cable M1289F100-BP12-61 HDD BP to Case Case Connect to HDD BP → Case ID_LED http://www.tyan.com...

  • Page 190: Appendix Vi: Fru Parts Table

    Appendix VI: FRU Parts Table FA100-B7118 FRU Parts Item Model Number Part Number Picture Description FRU-CS-0330 332810000514 A/C Power Cord, L=1800mm, US type Cable FRU-CS-0460 332810000515 A/C Power Cord, L=1800mm, EU type M2091-R, 1U Riser Card w/ PCI-E x16 Riser...

  • Page 191: Appendix Vii: Glossary

    CPU can manipulate data in a buffer before copying it to a disk drive. While this improves system performance (reading to or writing from a disk drive a single time is much faster than doing so repeatedly) there is the possibility of losing your data http://www.tyan.com...
  • Page 192 (like soundcards or keyboards) to access the main memory without involving the CPU. This frees up CPU resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plug-n-Play devices will take care of this for you. http://www.tyan.com...
  • Page 193 ROM chip which can, unlike normal ROM, be updated. This allows you to keep ® ’s up with changes in the BIOS programs without having to buy a new chip. TYAN BIOS updates can be found at http://www.tyan.com ESCD (Extended System Configuration Data): a format for storing information about Plug-n-Play devices in the system BIOS.
  • Page 194 Plug-n-Play require you to reconfigure your system each time you add or change any part of your hardware. PXE (Preboot Execution Environment): one of four components that together make up the Wired for Management 2.0 baseline specification. PXE was http://www.tyan.com...
  • Page 195 Sleep/Suspend mode: in this mode, all devices except the CPU shut down. SDRAM (Static RAM): unlike DRAM, this type of RAM does not need to be refreshed in order to prevent data loss. Thus, it is faster and more expensive. http://www.tyan.com...
  • Page 196 CPUs without damaging the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and a lever is pulled down. This shifts the processor over and down, guiding it into the board and locking it into place. http://www.tyan.com...

  • Page 197: Appendix Vii: Technical Support

    TYAN serves multiple market segments with the industry's most competitive services to support them. "TYAN's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general" - Anandtech.com ® You can contact TYAN Technical Support by using our Online Support System: http://12.230.196.231/helpstar/hsPages/login.aspx?ReturnUrl=%2fhelpstar%2fhsP...
  • Page 198 Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping ® carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you ®...

Table of Contents
