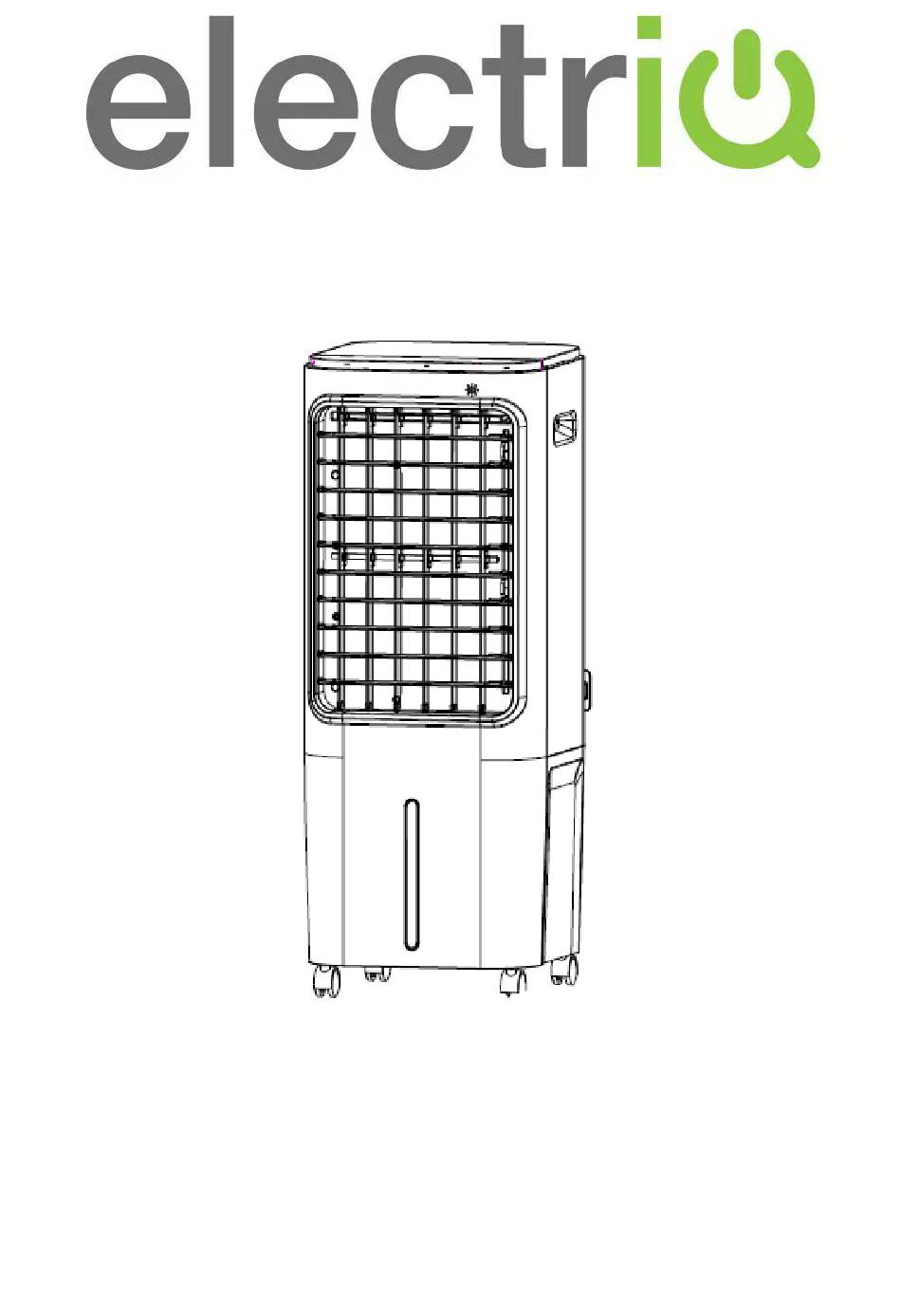

- Page 1 USER MANUAL ECOCOOL12i EVAPORATIVE COOLER Thank you for choosing electriQ Please read this user manual before using this innovative Air Cooler and keep it safe for future reference.
- Page 2 Page 2 of 12...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS FEATURES HOW EVAPORATIVE AIR COOLERS WORK DIAGRAM INSTALLATION CONTROL PANEL OPERATION REMOTE CONTROL FILLING THE WATER TANK MAINTENANCE TROUBLE SHOOTING APPENDIX TECHNICAL DATA SUPPORT Page 3 of 12... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! • Carefully read the instructions before operating the unit. • This appliance is for indoor use only. Any outdoor use must be supervised and the unit must not be exposed to wet conditions such as rain. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. -
Page 5: Features
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS • Do not cover or restrict the airflow from the outlet or inlet grills. • For maximum performance the minimum distance from a wall or objects should be 50cm. • Please make sure, while in operation, the water in the water tank does not exceed the MAX level and does not fall below MIN. -
Page 6: How Evaporative Air Coolers Work
HOW EVAPORATIVE AIR COOLERS WORK The air cooler cools the air by means of evaporation. When water evaporates into the air, the result is a mixture of air and water molecules. This chemical change requires heat which is taken from the water molecules, resulting in a spot cooling effect. -
Page 7: Diagram
Top Cover DIAGRAM Top Water Tank Honeycomb Filter Handle Air Outlet Back Cover Main Water Tank Drain Plug Castor Water Level Indicator INSTALLATION This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. -
Page 8: Control Panel
CONTROL PANEL TIMER IONISER SWING MODE COOL SPEED POWER DISPLAY PANEL OPERATION Press to turn the air cooler On and Off POWER Press to change the fan speed between low , medium and high The LED indicators will show the currently selected fan speed. SPEED Press to activate the evaporative cooling, The COOL symbol will illuminate to... -
Page 9: Remote Control
REMOTE CONTROL The remote control enables you to control all the same functions as the control panel from a distance of up to 6 metres. The remote control should be pointed towards the receiver on the front of the air cooler. -
Page 10: Maintenance
MAINTENANCE CLEANING ATTENTION: Please turn off the appliance and disconnect from the mains before cleaning or performing any maintenance. CLEANING THE SURFACE • Clean the plastic housing with a duster or a soft wet cloth. • Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 11: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm. Issue Possible Reason Solution No power 1. Power cord is not plugged in 1. Connect the power cord 2. -
Page 12: Technical Data
280 x 290 x 730 Net weight Measurement standard for service value EN IEC 60879:2019 electriQ, Unit J6, Lowfields Way Elland, West Yorkshire, HX5 9DA. Contact details for obtaining more information BuyItDirect, The Black Church, St Mary’s Place, Dublin 7.
