Cooper Lighting Concourse III UCS10SR223D4 Specification Sheet

A R E A

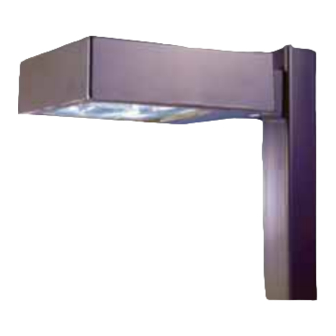

UCS CONCOURSE III
A R C H I T E C T U R A L A R E A L U M I N A I R E
STREETWORKS ™
L AT C H E S O R D E R I N G I N F O R M AT I O N
Two spring-steel quick release
S A M P L E N U M B E R
latches on housing for toolless
entry.
PRODUCT
FAMILY
S O C K E T
UCS=Concourse III
Porcelain mogul-base lamp socket
with spring-loaded center contact.
H O U S I N G
One-piece, die-cast aluminum
housing features aesthetically
pleasing soft-corner design.
ANSI wattage/source label.
G A S K E T I N G
Closed cell gas-filled high
O P T I O N S + A C C E S S O R I E S
temperature silicone gasketing
completely seals optical system from
OPTIONS (add as suffix)
dirt, bugs or other foreign material.
1=Single Fused, Internally Mounted (120 or 277V)
2=Double Fused, Internally Mounted (208, 240, or 480V)
L E N S
4=Photocontrol Receptacle
Thermal shock- and impact-
WH=White
resistant clear tempered glass.
BK=Black
AP=Grey
O P T I C S
DP=Dark Platinum
One-piece hydroformed anodized
GM=Graphite Metallic
aluminum reflectors provide five
H=Plug-in Starter Receptacle
different optical distributions and
K=Level Indicator
sharp cutoff control. Optional high
P=Button Photocontrol
performance segmented optical
U=U.L. Listed
modules available. Also available
V=Vandal Shield
with the "SL" Spill Light Eliminator
optic for house side light control.
O P T I O N A L C O L O R S
M O U N T I N G
Universal mounting clamp
concealed in housing fits 1 1/2" to
2 3/8" O.D. horizontal tenons
WH
without adapters. Provides a +5°
White
vertical leveling adjustment.
B A L L A S T
Easily removable high power factor
ballast is standard.
F I N I S H
Standard polyester powder coat
finish in bronze. For more color
options see optional colors or
consult your Streetworks
represenatitive for more
information.
S H I P P I N G D ATA
Approximate Net Weight:
NOTE: 1 150W units are for S55 Lamps. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 Takes ED28 lamp in 400W. 4 Not available with segmented reflectors.
34 lbs. (15.42 kgs.)
106 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s
: U C S 1 0 S R 2 2 3 D 4
LAMP WATTAGE LAMP
70=70W
TYPE 2
10=100W
S=High Pressure
15=150W 1
Sodium
24=250/400W
V=Mercury
25=250W
M=Metal Halide
40=400W
R=SMH
42=400/250W
[ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
4
[ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
BK AP
Black Grey
BALLAST TYPE 2 VOLTAGE
H=Reac./HPF
2=120V
N=Hi. Reac./NPF 0=208V
P=Hi. Reac./HPF 4=240V
R=Reac./NPF
7=277V
W=CWA 8=480V
3
C=CWI W=Multi-Tap wired 120V
K=10KV CWA
N=Multi-Tap wired 277V
V=Multi-Tap wired 240V
ACCESSORIES (order separately)
OA/RA1016=105V-285V Photocontrol
OA1013=Shorting Cap
CA11=House Side Shield Type II & III
CA18=House Side Shield Type IV
OA1221=TufGuard Vandal Shield
DP GM
Dark Platinum Graphite Metallic
MH/HPS/SMH/MERCURY
19 3/4" [502mm]
5 5/8"
[143mm]
14 7/8" [378mm]
2 DISTRIBUTION
2D=Type II MCO
3D=Type III MCO
4D=Forward Throw
5D=Type V MCO
2S=Type II Segmented
3S=Type III Segmented
4S=Type IV Segmented
5S=Type V Segmented
SL=Spill Light Eliminator
C o o p e r L i g h t i n g
70-400W
Round Pole
6 3/8" [162mm]
or
Square Pole
6 1/4" [159mm]
OPTIONS +
ACCESSORIES
(See Below)
