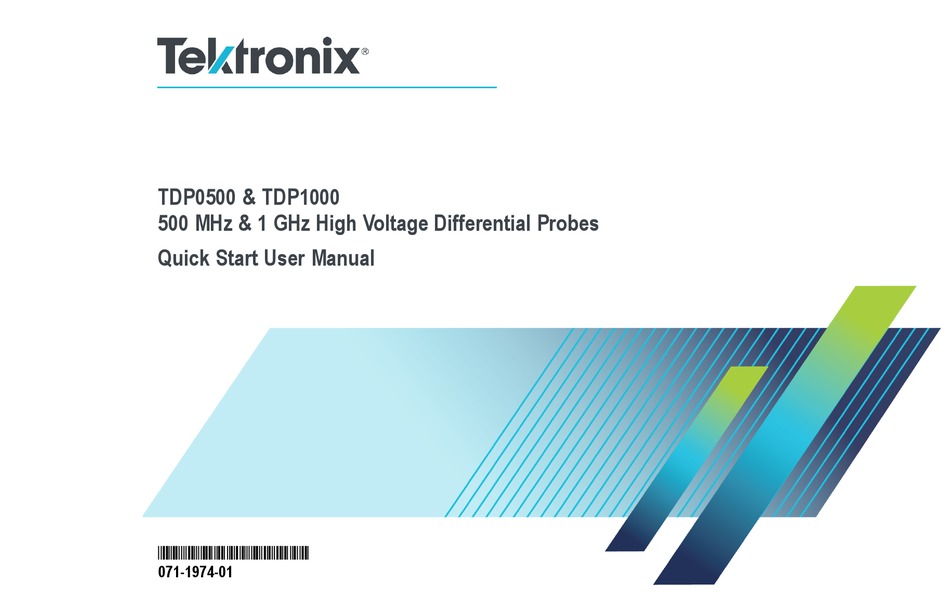

TDP0500 & TDP1000
500 MHz & 1 GHz High Voltage Differential Probes
ZZZ
Quick Start User Manual
*P071197401*
071-1974-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDP1000TDP1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix TDP1000TDP1500

Summary of Contents for Tektronix TDP1000TDP1500

  • Page 1 TDP0500 & TDP1000 500 MHz & 1 GHz High Voltage Differential Probes Quick Start User Manual *P071197401* 071-1974-01...
  • Page 3 TDP0500 & TDP1000 500 MHz & 1 GHz High Voltage Differential Probes Quick Start User Manual www.tek.com 071-1974-01...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

  • Page 7: Table Of Contents

    Table of Contents Table of Contents General safety summary ........................Environmental considerations .
  • Page 8 Table of Contents Probe input......................... . . Probe offset and AutoZero.

  • Page 9: General Safety Summary

    General safety summary General safety summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. Only qualified personnel should perform service procedures. While using this product, you may need to access other parts of a larger system.
  • Page 10 General safety summary Avoid exposed circuitry. Do not touch exposed connections and components when power is present. Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Terms in this manual These terms may appear in this manual: WARNING.
  • Page 11 General safety summary The following symbol(s) may appear on the product: TDP0500 & TDP1000 Quick Start User Manual...

  • Page 12: Environmental Considerations

    This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). TDP0500 & TDP1000 Quick Start User Manual...

  • Page 13: Preface

    This manual describes the installation and operation of the TDP0500 and TDP1000 High Voltage Differential probes. Basic probe operations and concepts are presented in this manual. You can also check the Tektronix Web site for this document and other related information.

  • Page 14: Returning The Probe For Servicing

    Preface Returning the probe for servicing If your probe requires servicing, you must return the probe to Tektronix. If the original packaging is unfit for use or not available, use the following packaging guidelines: Preparation for Shipment 1. Use a corrugated cardboard shipping...

  • Page 15: Key Features

    Key features The TDP0500 and TDP1000 High Voltage Differential probes enable you to make accurate differential measurements from DC to 500 MHz (TDP0500), or 1 GHz (TDP1000), using oscilloscopes featuring the new Tektronix TekVPI oscilloscope interface. Key features include: DC to 500 MHz bandwidth (TDP0500) or 1 GHz (TDP1000) Selectable ±42 V or ±4.25 V (DC +...

  • Page 16: Operating Considerations

    Operating considerations Operating considerations Table 1: TDP0500 & TDP1000 Characteristic Description Input Voltage Differential: ±4.25 V (DC + peak AC), 3 V RMS ±42 V (DC + peak AC), 30 V RMS Common Mode: ±35 V (DC + peak AC), 25 V RMS (Both ranges; input referenced to ground) Temperature Operating: 0 to +40 °C (+32 °F to +104 °F) Nonoperating: -55 °C to +75 °C (-67 °F to +167 °F)
  • Page 17 Operating considerations Figure 1: Voltage versus frequency derating curve TDP0500 & TDP1000 Quick Start User Manual...

  • Page 18: Installation

    Installation Installation Connecting to the host instrument WARNING. Your TekVPI instrument may require a firmware upgrade to support full functionality of the TDP0500 and TDP1000 probes. Before you connect the probe, check the version requirements. (See page 43, Host instrument firmware.) 1.

  • Page 19: Probe Controls And Indicators

    Installation Probe controls and indicators Range button and LEDs When the probe is powered on, all LEDs briefly light during the power-on self test routine, and then one of the Range LEDs remains lit. This indicates that the probe is in normal operating mode.
  • Page 20 Installation Bandwidth limit button and LEDs Press the Bandwidth Limit button to select one of four limit values. The corresponding LED lights to indicate the selected bandwidth limit. When no LED is lit, the probe is operating at full bandwidth. TDP0500 &...
  • Page 21 Installation DC reject button Press the DC Reject button to eliminate the DC component of the measured signal from the output of the probe. The LED lights to indicate that the DC Reject is enabled. DC reject is useful when you are measuring small amplitude signals superimposed on a large differential offset component.
  • Page 22 Installation Menu button 1. Press the probe Menu button to display the Probe Control screen on the oscilloscope. NOTE. Probe menu screens vary slightly between oscilloscope series; DPO7000 Series screens are shown here. This screen includes controls for probe functions that are not accessible on the probe, such as AutoZero and Offset.

  • Page 23: Functional Check

    Tektronix DPO7000 Series Y-lead adapter 0.25-in square pins for probe tip 196-3434-XX connections SMT KlipChip adapters (2) 0.25-in square pins-to-mini clips 206-0364-XX Nine-digit part numbers (xxx-xxxx-xx) are Tektronix part numbers. Standard probe accessory TDP0500 & TDP1000 Quick Start User Manual...
  • Page 24 Functional check Signal 1. Connect the probe to any channel of the oscilloscope and set the oscilloscope to display that channel. 2. Use the Y-lead Adapter and two SMT KlipChips to connect the probe tip to the PROBE COMP terminals on the oscilloscope.

  • Page 25: Calibration

    Calibration Calibration The probe calibration routine minimizes your measurement errors by optimizing the gain and offset of the probe and oscilloscope combination. We recommend that you repeat the probe calibration on each channel that you use. Individual calibration constants are stored for each probe on each channel. Probe calibration functions are not available on all oscilloscope models.

  • Page 26: Test Procedure

    Calibration Test procedure Check the Calibration Status of the instrument: 1. From the Utilities menu, select Instrument Calibration. 2. In the Status box, check that pass is displayed. 3. If the Instrument Calibration Status is not pass, run the Signal Path Compensation routine: Disconnect all probes and signal sources from the oscilloscope, and select Calibrate.
  • Page 27 Calibration 4. Connect the probe to the oscilloscope PROBE COMP connector. 5. From the Vertical menu, select Probe Cal. TDP0500 & TDP1000 Quick Start User Manual...
  • Page 28 Calibration 6. When the Probe Setup screen appears, select Clear ProbeCal, and then select Calibrate Probe. The probe calibration routine begins. When the routine completes, a notifier appears. Close the notifier and begin using your probe. TDP0500 & TDP1000 Quick Start User Manual...

  • Page 29: Basic Operation

    Basic operation Basic operation Follow these operating guidelines to get optimum performance from your probe. Probe head assembly The probe head is designed for ease of use and high performance. Its small size makes it easy to handle in tight areas. 1.

  • Page 30: Probe Input

    Basic operation Probe input The probe is electrically protected against static voltage. However, if you apply voltages above its design limits you may damage the probe tip amplifier. The limits are shown in the 4.25 V and 42 V range graphs on the following pages. (See Figure 2 on page 17.) (See Figure 3 on page 18.) Common-Mode signal range The common-mode signal range is the maximum voltage that you can apply to each input, with respect to earth ground, without...
  • Page 31 Basic operation Figure 2: Dynamic and Offset Limitations, 4.25 V Range TDP0500 & TDP1000 Quick Start User Manual...
  • Page 32 Basic operation Figure 3: Dynamic and Offset Limitations, 42 V Range TDP0500 & TDP1000 Quick Start User Manual...

  • Page 33: Probe Offset And Autozero

    Basic operation Probe offset and AutoZero The probe offset is adjustable to permit operation within the linear range of the probe and to increase the sensitivity of the probe at higher DC measurement voltages. The AutoZero routine eliminates DC offset errors (drift) in the probe signal path, and aligns the offset value of the probe to the oscilloscope.
  • Page 34 Basic operation Offset To set the probe offset, follow these steps: NOTE. See your oscilloscope manual for specific instructions on using the offset control. 1. Use the vertical position control to set a zero reference level on the oscilloscope display. 2.
  • Page 35 Basic operation 3. Attach the probe to the circuit. 4. Adjust the offset to bring the trace to the oscilloscope zero reference. 5. If you change the volts/division setting, adjust the offset to keep the trace on the zero reference level. NOTE.

  • Page 36: Applications

    Applications Applications The following example shows a simplified AC/DC circuit diagram that uses the TDP0500 or TDP1000 probe and a DPO7000 oscilloscope. The oscilloscope is loaded with the DPOPWR power measurement software application to solve a typical test problem. Measure switching loss In this example, you want to minimize the power loss at the switching device to improve the efficiency of the power supply.
  • Page 37 Applications 1. Connect the differential probe across the switching device, and a current probe in series with the device. (See Figure 4.) Figure 4: Power supply test points 2. Run the DPOPWR application. 3. Select the Power Device tab. 4. Select Switching Loss option and press the Configure button. 5.
  • Page 38 Applications 7. Select Switching Loss measurement. 8. Select Run to acquire data and display the results. (See Figure 5 on page 25.) TDP0500 & TDP1000 Quick Start User Manual...
  • Page 39 Applications Figure 5: Switching loss results display TDP0500 & TDP1000 Quick Start User Manual...

  • Page 40: Accessories And Options

    1. Connect the Tip Saver to the probe. 2. Connect the probe tip accessory that you want to use. Two Tip Savers are included with the probe. Reorder Tektronix part number: 016-1781-XX qty. 2 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 41 You can use either end of the tip. Do not force the tip. 2. Probe your circuit. Eight probe tips are included with the probe. Reorder Tektronix part number: 016-1890-XX qty. 8 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 42 Do not force the tip. 2. Adjust the spacing between the pins to suit your needs. 3. Probe your circuit. Two adapters are included with the probe. Reorder Tektronix part number: 016-1780-XX qty. 5 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 43 500 MHz. 1. Solder the leads to the two test points. 2. Connect the adapter to the probe. Reorder Tektronix part numbers: 1 inch: 196-3504-XX qty. 1 3 inch: 196-3505-XX qty. 1 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 44 1. Push the adapter into the probe until it is seated. 2. Connect the adapter to your circuit or to another adapter, such as the SMT KlipChip. Two adapters are included with the probe. Reorder Tektronix part number: 196-3434-XX qty. 1 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 45 3. If necessary, bend the flexible sleeve of the KlipChip up to a 35 ° angle to reduce stress on the connection. Three adapters are included with the probe. Reorder Tektronix part numbers: 206-0364-XX qty. 1 SMG50 qty. 20 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 46 When selecting the grounding connection, maintain as short a ground path as possible. (See page 41, Probe grounding.) Two ground leads are included with the probe. Reorder Tektronix part number: 196-3437-10 qty. 2 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 47 2. Connect the probe to the channel that matches the color of the band. Five colored pairs are included with the probe. Reorder Tektronix part number: 016-1315-XX qty. 5 colored pairs TDP0500 & TDP1000 Quick Start User Manual...
  • Page 48 1. Place the probe, accessories, and manual in the carrying case. 2. Close the carrying case to transport the accessories to another location or for storage. Reorder Tektronix part number: 016-1952-XX TDP0500 & TDP1000 Quick Start User Manual...

  • Page 49: Optional Accessories

    Y-Lead Adapter or Ground wires. 1. Push the IC Micro-Grabber onto the wire lead. 2. Press the lever to open the contacts. 3. Attach the IC Micro-Grabber to your circuit. Order Tektronix part number: SMK4 qty. 4 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 50 Also, be careful not to injure yourself on the sharp points. 2. Adjust the spacing between the pins to suit your needs. 3. Probe your circuit. Order Tektronix part number: 016-1786-XX qty. 4 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 51 2. Touch the adapter to your integrated circuit leads. One side of the adapter pins are insulated to prevent short-circuiting to adjacent pins. Order Tektronix part number: 016-1785-XX qty. 4 TDP0500 & TDP1000 Quick Start User Manual...
  • Page 52 1. Connect the pin to the ground socket on the probe. 2. Probe your circuit. Order Tektronix part number: 016-1782-XX qty. 6 BNC-to-Probe tip adapter Use this adapter for the performance verification tests. The adapter provides connections for signal sources, terminations, and probe test points.
  • Page 53 It provides an SMA connector in the probe signal path for internal probe measurements. Instructions for use are included in the performance verification procedures. Order Tektronix part number: 067-1701-XX TDP0500 & TDP1000 Quick Start User Manual...

  • Page 54: Options

    Accessories and options Options Service options Option CA1. Provides coverage for a single calibration event Option C3. Calibration service 3 years Option C5. Calibration service 5 years Option D1. Calibration data report Option D3. Calibration data report, 3 years (with Option C3) Option D5.

  • Page 55: Probing Principles

    Probing principles Probing principles Read the helpful hints on the following pages to make probing easier and noise free. Probe grounding In addition to the (+) and (-) inputs on the probe head, there is also a ground (common) input. You can use the probe to take a differential measurement regardless of whether the ground is connected.

  • Page 56: Input Impedance And Probe Loading

    Probing principles Input impedance and probe loading When you connect the probe inputs to a circuit, you are introducing new resistance, capacitance, and inductance into the circuit. Each input of the differential probe has a characteristic input impedance of 500 kΩ to ground in parallel with less than 2 pF. For signals with low source impedance and frequency, the 500 kΩ...

  • Page 57: Maintenance

    To check the firmware version on Windows-based instruments, from the menu bar, click Help/About TekScope. On Linux-based instruments, press the Utilities button on the front panel. If you need to upgrade your instrument firmware, go to www.tektronix.com/software to download the latest firmware. Error condition If one of the Range LEDs does not remain lit after you connect the probe, an internal probe diagnostic fault exists.

  • Page 58: Replacement Parts

    Maintenance Replacement parts There are no user-replaceable parts within the probe. Refer to the accessory list for replaceable accessories for your probe. Cleaning Protect the probe from adverse weather conditions. The probe is not waterproof. To prevent damage to the probe, do not expose it to sprays, liquids, or solvents. Avoid getting moisture inside CAUTION.

  • Page 59: Index

    Index Index Cleaning the probe, 44 Connecting the probe, 4 Accessories Input limitations, 16 optional, 35 Instrument Firmware, 43 standard, 26 Adapter, fixed Documentation, vii, 40 BNC-to-probe tip, 38 Maintenance, 43 straight pin tips, 27 tip saver, 26 TwinFoot, 37 Environmental considerations, vi Adapter, test Error condition, 43...
  • Page 60 Index Returning the probe, viii Signal path compensation, 12 Range LED, 43 Related documentation, vii Replacement parts, 44 Safety Summary, iii TekVPI, 4 TDP0500 & TDP1000 Quick Start User Manual...
