7. Physical Dimensions and PCB Land Pattern
7.2 Recommended PCB Land Pattern
Unit: mm
Via for thermal pad
Copper
18.00
42x1.50
Antenna Area
1
42
4.10
0.40
1.10
7.81
0.50
17
26
1.50
2.25

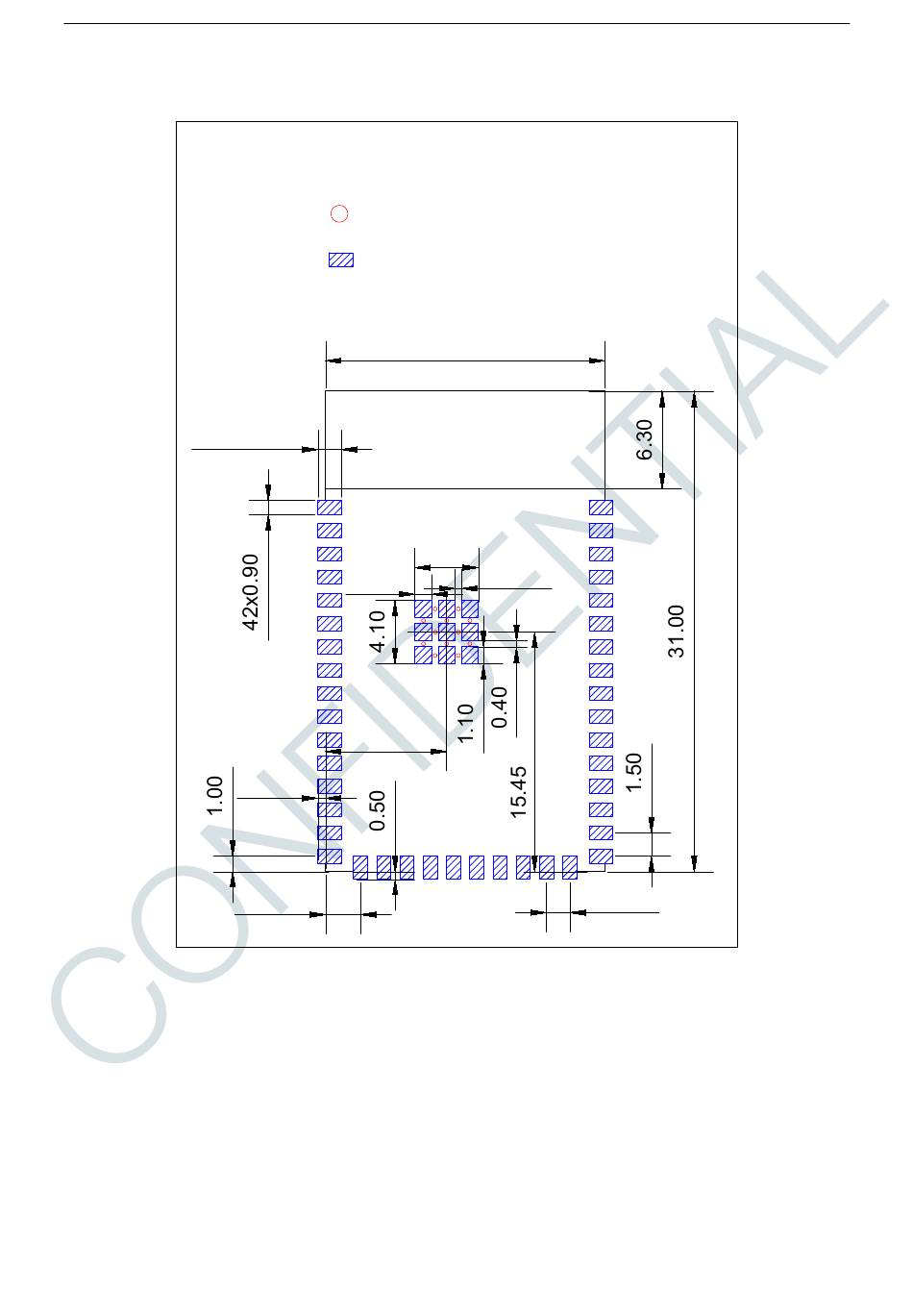

Figure 6: Recommended PCB Land Pattern
16
ESP32-S2-WROVER User Manual V0.1
Espressif Systems
