- Page 1 HE 5710 / HE 5711 Solenoid valve controller Operating instructions (Translation of Original German version) # 371814 / Version 1.4...
- Page 2 Published by: AXXERON HESCH electronics GmbH, Documentation department Copyrights © Copyright 2023 AXXERON HESCH electronics GmbH. All rights reserved. The content including pictures and the design of these operating instructions are subject to copyright protection and other laws for the protection of intellectual property.
-
Page 3: Table Of Contents
TABLE OF CONTENTS LEGAL PROVISIONS ........................... 5 SAFETY INFORMATION ..........................6 ...................... 6 YMBOLS AND ASIC AFETY NSTRUCTIONS ............................6 IGNAL WORDS ....................7 AFETY IN THE INDIVIDUAL OPERATING PHASES ..........................9 EVICE DENTIFICATION DEVICE DESCRIPTION ..........................10 ..............................10 VERVIEW ...................... - Page 4 Document history Version Date Description Author 12/2013 First version 04/2014 Chapter 3.1, 3.2, 3.3, 5.2: Changed value for wide- range power supply (100 – 240 VAC) chapter 7: Declaration of conformity added 03/2017 Smaller corrections, device identification updated, declaration of conformity removed 12/2019 Bilingual name plates added 03/2023...
-
Page 5: Legal Provisions
Legal Provisions Manufacturer AXXERON HESCH electronics GmbH, Boschstraße 8, 31535 NEUSTADT, GERMANY Intended use The solenoid valve controller HE 5710 / HE 5711 serves for cleaning industrial filtration plants. The device can be operated within the operating and environmental conditions approved in this operating instructions without impairing its safety. -
Page 6: Safety Information
Safety Information Symbols and Basic Safety Instructions This chapter contains important safety regulations and notes. To protect against personal injury and material damage, it is necessary to read this chapter carefully before working with the device. Symbols used The following symbols are used in this manual. All safety instructions have a uniform structure. Personal injury warning! The severity of the danger is indicated by the respective signal word. -
Page 7: Safety In The Individual Operating Phases
Safety in the individual operating phases When installing the control unit and during operation, the following safety instructions must be observed. Danger of Electrocution! Before working on the device, switch off all power supplies used. The electrical cables must be laid according to the respective national regulations (in Germany VDE 0100). - Page 8 Explosion Prevention! (for ATEX approved devices only!) This device (the version with the Makrolon housing) is suitable for operation in explosion Zone 22 with the lid closed (where an explosive atmosphere may arise due to electrically conductive dusts). Prior to opening the device, one must ensure that there are no explosive ambient conditions, such as dust formation.
-
Page 9: Device Identification
Device Identification Note! The devices are available with ATEX approval for use in EX zone 22 as well as without ATEX approval. If you have ordered an ATEX- approved device, you must necessarily observe the safety instructions for explosion prevention, the indication on the name plate as well as the special regulations in chapter 2.4 Device Identification. -
Page 10: Device Description

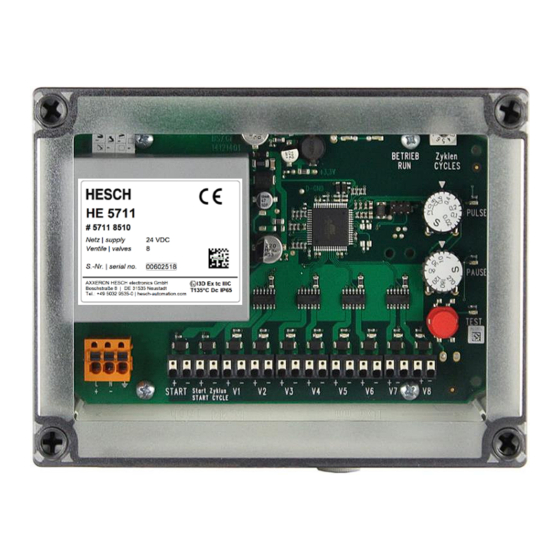

Device Description Overview Name plate Connections Overview (exemplary on HE 5710) Name plate for ATEX approved devices: Name plate for devices without ATEX approval: Name plates HE 5710 / 5711 Operating Instructions # 371814 | Version 1.4... -
Page 11: Display And Operating Elements
Display and Operating Elements Name plate Display and Operating Elements Symbols Meaning LED green Lights up, if the operating voltage is applied and the processor is active CYCLES Rotary coding switch Determines the number of cycles (1…9). The rotary coding switch setting 0, deactivates the cyclic cleaning. -
Page 12: Technical Data
Technical Data Technical Data Intended use: -solenoid valve controller for cleaning industrial filtration plants -100…240 V AC, 50…60 Hz Supply voltage: -24 V DC ± 10% (option) (safety extra-low voltage SELV) Power consumption: 30 VA, self-consumption about 3 kW LED: - HE 5710: 4 for valve control, red - HE 5711: 8 for valve control, red -RUN, green... -
Page 13: Installation
Operating instructions Note! Upon receipt, check the delivery for completeness and for visible defects. In case of complaint, contact your responsible representative of AXXERON HESCH electronics GmbH immediately. HE 5710 / 5711 Operating Instructions # 371814 | Version 1.4... -
Page 14: Electrical Commissioning
Electrical Commissioning Before switching on the device, observe the following points: Connect the cables firmly to the glands. The voltage supply must correspond to the indication on the name plate. The device may be operated with closed cover only. ... -
Page 15: Supply Voltage
Supply voltage Name plate Supply voltage 1. Loosen the screws of the housing cover and open the cover. 2. Look at the indication of the correct supply voltage on the name plate (e.g. 100…240 V AC or 24 V DC mains voltage). 3. -
Page 16: Connection Diagram
Connection diagram Name plate Connection diagram Terminal Meaning Supply voltage L, 100…240 V AC or (+) 24 V DC L (+) Supply voltage L, 100…240 V AC or (-) 24 V DC N (-) Protective earth + START [Start] Input cleaning start (+), Active Low - START [Start] Input cleaning start (GND) + START CYCLE... -
Page 17: Inputs
Note! The terminals V5 (+ and -) to V8 (+ and -) for HE 5711 only! Inputs The solenoid valve controller has two inputs: START and START CYCLE The inputs are internally supplied with +24 V DC and are active when they are switched to (-) with a potential- free contact. -
Page 18: Setting
Setting Number of valves The number of valves is determined automatically by the controller. Detected valves are indicated by lit LEDs. Number of full cleaning cycles Set the number of cycles (1…9) via the rotary coding switch CYCLES. If the rotary coding switch is on 0, the cyclic cleaning is deactivated. -
Page 19: Maintenance And Service
Disposal Dispatch metals and plastics for recycling. Electrical and electronic components must be collected separately and disposed of properly. Dispose of equipped circuit boards properly. Service AXXERON HESCH electronics GmbH Boschstraße 8 31535 NEUSTADT, GERMANY Phone: +49 5032 9535-0 Web: www.hesch-automation.com...
