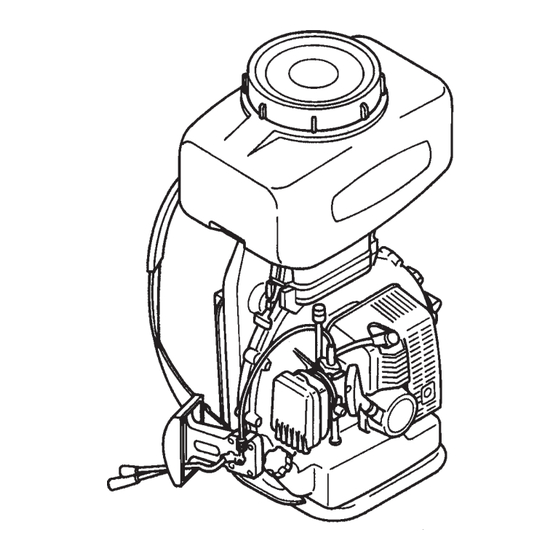

- Page 1 ENGLISH (Original instructions) OPERATOR’S MANUAL KNAPSACK TYPE DUSTER/MIST BLOWER DM-4610 WARNING DANGER READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR SAFE OPERATION. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY. X750-002 155 X750102-5005 © 2000 Printed in Japan 1001Ak 0897 ES...
-
Page 2: Table Of Contents
Locate this safety decal on your unit. The complete unit illustration found in the “DESCRIPTION” section, will help you locate them. Make sure the decal is legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. Part number X505-002310... -
Page 3: Rules For Safe Operation
• Check the shoulder harnesses are not tangled with any control levers when you put the unit on your back. • This unit is designed for upright use only, do not lay down or lean excessively to avoid leakage of chemicals when operating and transporting. DM-4610... - Page 4 EYE, BREATHING AND HEARING PROTECTION • Wear eye protection goggles. • Wear breathing protection such as officially approved toxic dust and mist respirator. • Wear hearing protection. If this guideline is not followed, hearing loss can occur. DM-4610...
- Page 5 • Do exercises to strengthen hand and arm muscles. • See a doctor if you feel tingling, numbness or pain in your fingers, hands, wrists or arms. The sooner RSI is diagnosed, the more likely permanent nerve and muscle damage can be prevented. DM-4610...
-
Page 6: Description
DESCRIPTION ENGLISH (Original instructions) OPERATOR’S MANUAL KNAPSACK TYPE DUSTER/MIST BLOWER DM-4610 WARNING DANGER READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR SAFE OPERATION. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY. X750-002 154 X750102-5004 © 2000 OPERATORS MANUAL - Included with unit. Read... -
Page 7: Assembling
17. Outlet connector 18. Clamp 19. Packing 20. Flexible pipe 21. Packing 22. Clamp 23. Straight pipe 24. Rubber band 25. Straight pipe 26. Curbed pipe 27. Nozzle 28. Discharge tube 29. Valve ..secured by clamp 30. Hook Pipe/Tube connection DM-4610... - Page 8 Shutter shaft (19) and tighten the Shutter arm (18) with two screws. 11. Install Chemical tank assembly to the body. Chemical tank 12. Refer to page 15, set the Shutter control arm (21) and tighten with Nut (22). DM-4610...
- Page 9 Chemical tank assembly DUSTING PARTS 8. Screw 9. Holder 14. Plug 17. Bracket 20. Shutter assembly 21. Shutter control arm 22. Nut 23. Clamp 24. Flexible pipe 25. Clamp 26. Straight pipe 27. Straight pipe 28. Hook Pipe connection DM-4610...
-
Page 10: Operatlon
10 % of ethyl alcohol. • Recommended mixture ratio; 50 : 1 for ISO-L-EGD Standard (ISO/CD 13738), JASO FC,FD grade and ECHO Premium 50 : 1 oil and 25 : 1 for JASO FB grade oil. NOTE - Do not mix directly in engine fuel tank. - Page 11 WARNING DANGER Stop position IF ENGINE DOES NOT STOP, MOVE CHOKE LEVER UP TO CLOSE POSITION TO STALL ENGINE. HAVE YOUR ECHO DEALER INSPECT AND REPAIR. Throttle control lever Shutter control lever NOTE Carburettor has been correctly adjusted in factory. Do not readjust yourself unless it is necessary.
-
Page 12: Operating Mist Blower
70 cm CLEANING CHEMICAL TANK Chemical tank should be cleaned after each use. 1. Fill chemical tank with clear water and run engine. 2. Open valve to pour water out to clean internal parts of misting device. DM-4610... -
Page 13: Operating Duster
In a certain condition, when operating dust blower, you may feel shock of static electricity. Static electricity itself does not affect your health but stings uncomfortably. Optional ground chain and stranded wire are available through your ECHO dealer for eliminating static electricity. Ground chain DM-4610... -
Page 14: Maintenance And Care
• Inspect electrode for wear. • Inspect insulator for oil or other deposits. • Replace plug if needed and tighten to 15 - 17 N•m 0.6 mm to 0.7 mm (150 to 170 kgf•cm). NOTE Do not overtighten spark plug. DM-4610... - Page 15 Starter Rope Inspect/Replace • Fuel System Inspect • Screws, Bolts and Nuts Inspect, Tighten/Replace • IMPORTANT Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. Record dates of monthly and yearly inspections. DM-4610...
-
Page 16: Trouble Shooting
• Fuel filter clogged • Clean or replace cranks carburettor at carburettor • Fuel line clogged • Clean • Carburettor • Ask your ECHO dealer Fuel at No fuel • Carburettor • Ask your ECHO dealer cylinder at cylinder Muffler wet •... -
Page 17: Storage
(Original instructions) operator’s manual. • If this operator’s manual has become illegible through impairment or is lost, please purchase a new one from your ECHO dealer. • When renting a machine together with this OPERATOR’S MANUAL KNAPSACK TYPE operator’s manual provides explanation and... -
Page 18: Specifications
Two stroke, air-cooled engine oil. ratio 50 : 1 for ISO-L-EGD Standard (ISO/CD 13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil and 25 : 1 for JASO FB grade oil. fuel consumption at maximum engine power... -
Page 19: Declaration Of Conformlty
*the requirements of Directive 2000/14/EC Conformity assessment procedure followed ANNEX V Measured sound power level : 112 dB(A) Guaranteed sound power level : 115 dB(A) DM-4610 Serial Number 36002526 and up Tokyo, October 1st 2009 YAMABIKO CORPORATION The authorized representative in Europe who is authorized to compile the technical file. - Page 20 7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8760, JAPAN PHONE: 81–428–32–6118. FAX: 81–428–32–6145.
