Summary of Contents for Koopers ARMOUR

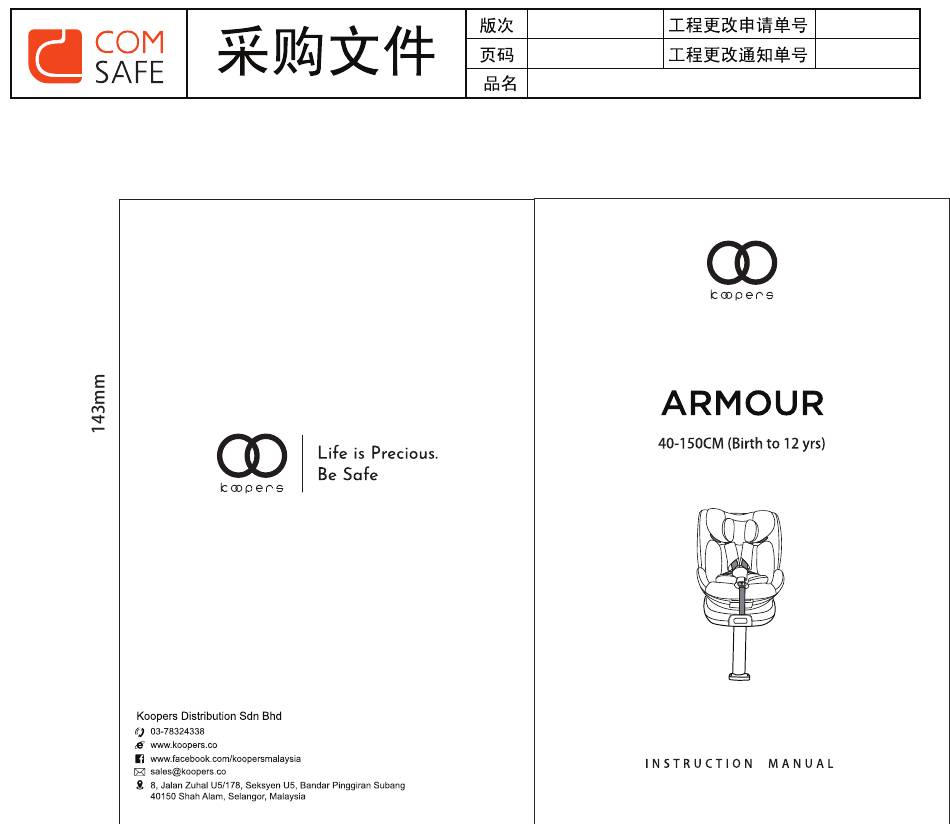

- Page 1 SM-K85-001 技术要求： 1.规格：95x143(±2）mm 2.材质：80g双胶纸 3.说明书共26页包括封面封底，骑马订 95mm...
-
Page 2: Table Of Contents
Contents Attention 1.Safety instructions.................... 1 2.Each component....................3 3.Notice for the vehicle use ................5 NOTICE 4.The adjustment and installation of child safety seat ......6 This is an I-Size Enhanced Child Restraint System. It is approved 4-1.The usage of buckle..................6 according to UN Regulation No. -
Page 3: Safety Instructions
Instruction 40-150cm. Manual 1. Safety instructions • The moving parts of the car seat should not be lubricated in any way. The baby car seat must not be used without the cover. Please use an original • Read this instruction manual carefully. •... -
Page 4: Each Component
Instruction 40-150cm. Manual 2. Each component The pictures are only for your reference H. indicator for rotation button O. adjustment button for the Support leg A.handle for the headrest I. Handle for adjusting the angle P. indicator for the Support leg B. -
Page 5: Notice For The Vehicle Use
Instruction 40-150cm. Manual 3. Notice for the vehicle use Read the car manual rst and check whether the car seat is equipped with ISOFIX attachment xed anchor points, and check the size of recommended ISOFIX attachment constraints on the system if it is matched our ISOFIX The baby car seat must not be used into the position of a seat where attachment size. -
Page 6: 4-2.Adjust The Safety Belt
Instruction 40-150cm. Manual 4-2 adjust the safety belt. 3. Insert the closed latches into the 1.Tighten your baby car seat belt slot of the buckle. (Figure 3) Pull the shoulder strap up to tighten the loose part of the leg belt. Then pull the adjustable belt to tighten the belt. -
Page 7: 4-3.Adjust The Height Of Headrest
Instruction 40-150m. Manual 4-3 adjust the height of headrest 4-4 adjust the angle reclining of car seat The child safety seat can be adjusted to di erent reclining positions. You can 1.Use the ve-point seat belt adjustment adjust the reclining angle of the seat even when your child is in it button under the front of the seat to loosen the seat belt, unlock the buckle, pull the headrest adjustment handle up, move the headrest to... -
Page 8: New Born Cushion
Instruction 40-150cm. Manual forward facing: 4-6 rotation function Press the base of the seat with one hand and pull the angle adjusting handle on the 1. Take the supporting leg out of the storage back of the seat with the other hand to at the bottom of the base;... -
Page 9: 5-Point Harness System To Install The Child
Instruction 40-150cm. Manual 4-7 5-point harness system to install the child 2. Rotate the Child Restraint System to the back and open the back cover (Figure 15). 1.Release the safety belt to the most loosely, then Figure 16 shows the internal unlock the buckle and place it on both sides of the state after opening. -
Page 10: 4-9.Installing Method For Isofix Attachment
Instruction 40-150cm. Manual 4-9 installing method for ISOFIX attachment Notice: Child safety seats can also be used with the ISOFIX attachment guider. 5.Press the red button to open the buckle. The installation is more convenient, please clip the ISOFIX attachment guide on the ISOFIX attachment anchor point on the ISOFIX attachment xed point of the automobile, and the make notch faces... -
Page 11: Installation Of Support Leg
Instruction 40-150cm. Manual 4-11 Remove ISOFIX attachment and hide the Support leg 4-10 Installation of Support leg 4-11-1 Removing the ISOFIX attachment 1.Take the Support leg out from the storage bin at the bottom of the base 1. Press the "ISOFIX attachment unlock 2.Press the expansion button to pull the button", and hear "click"... -
Page 12: Installation Method
Instruction 40-150cm. Manual 5.Installation method 5-2 Installing the child safety seat forward facing position by using ISOFIX attachment+ Support leg (suitable for children 5-1 Making rearward facing position by using ISOFIX attachment+ height from 76-105cm) Support leg (suitable for children height from40-105cm) 1.When installing the child safety seat in the forward facing position, take the Support leg out from the bottom of the seat according to... -
Page 13: Installing The Car Seat Forward Facing Position By Using
Instruction 40-150cm. Manual 5-3 Installing the car seat forward facing position by using 5-4. Use 3-point seat belt to install the child safety ISOFIX attachment+ 3-point seat belt (suitable for children seat in forward facing position height from100-150cm) (Suitable for children height from 100-150cm) 1.Remove the 5-point safety belt system before placing the child in this 1.Remove the 5-point safety belt system before placing the child in this way (see pic 4-8 for details) -
Page 14: Removal And Installation Of Cloth Cover
Instruction 40-150cm. Manual 6.Removal and installation of cloth cover 7. Cleaning and maintenance Removal of the cloth cover In the daily using, it is necessary to regularly check the child safety seat, In case of accident, the safety seat must be replaced. 1.
