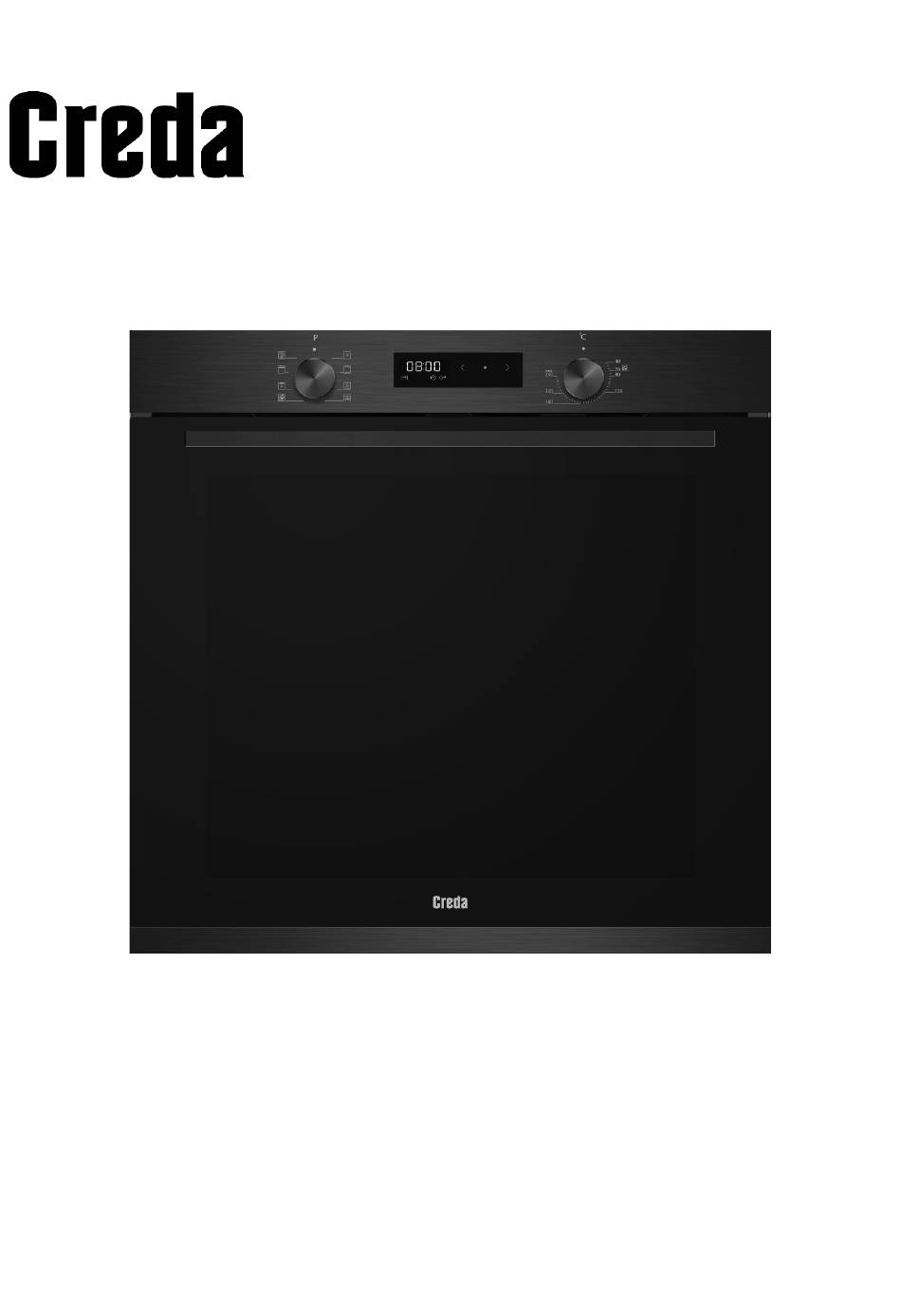

Page 1

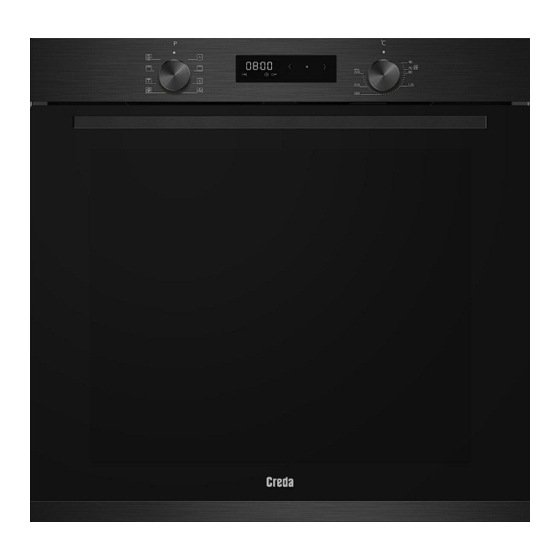

60CM BUILT IN 80L USER OVEN MANUAL MODEL/S C80BISMFBL C80BISMFX V 1.0 C80BISMFBX...
Page 2
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions, or online at www.creda.co.uk If you still require further assistance, call one of our experts on 01759 487836.
USER MANUAL Contents — PAGE Important warnings Electrical connection Introducing the appliance Accessories Technical specifications Installation of the appliance Control panel Operation of the oven Operation of the grill Booster operation Operation of the timer Program types Cooking recommendations Cooking table...
Page 4
USER MANUAL PAGE — Maintenance and cleaning Cleaning and assembly of the oven door Cleaning of the oven glass Steam cleaning Wire rack positions Replacement of the oven lamp Troubleshooting Handling rules Recommendations for energy saving Environmentally-friendly disposal Packaging information...
USER MANUAL IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2. Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner.
Page 6
USER MANUAL 39. When the door is open, do not place any heavy object on the door or allow children to sit on it. You may cause the oven to overturn or the door hinges to be damaged. 40. The packaging materials are dangerous for children. Keep packaging materials away from the reach of children.
USER MANUAL 5. Oven part of the unit may be used for thawing, roasting, frying and grilling food. 6. Operational life of the product you have purchased is 10 years. This is the period for which the spare parts required for the operation of this product as defined is provided by the manufacturer. Electrical Connection This oven shall be correctly installed and connected by the authorized service and according to the manufacturer’s instructions.
USER MANUAL Accessories Deep tray * Used for pastry, big roasts, watery foods. It can also be used as oil collecting container if you roast directly on grill with cake, frozen foods and meat dishes. Tray / Glass tray * Used for pastry (cookie, biscuit etc.), frozen foods.
USER MANUAL INSTALLATION OF APPLIANCE Check if the electrical installation is proper to bring the appliance in operating condition. If not, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons.
Page 12
USER MANUAL Installation Under Counter Cabinet shall conform with dimensions specified in fig. 2. A clearance with the dimensions specified in the figure shall be ensured at the rear compartment of the cabinet to provide the required ventilation. After installation, the clearance that shall be left between the bottom of the counter and the top of the appliance is indicated by “A”...
Page 13
USER MANUAL Assembly NOTE: At the front of the kitchen counter, a space at least 5 mm high from the bottom of the counter should be left.
USER MANUAL CONTROL PANEL Function button Digital timer Thermostat Thermostat Button: Used for determining the cooking temperature of the dish to be cooked in the oven. You may set it to the desired temperature after placing the dish inside the oven. Refer to relevant cooking chart for cooking temperatures of different dishes.
USER MANUAL Set the function button to the off position. WARNING: Keep the oven door closed while grilling. Booster (Quick Pre-Heating) Operation * This is the quick pre-heating function. After setting the thermostat of the appliance to the selected temperature, it is ensured that the internal temperature of the oven is quickly increased by bringing the cooking function to multifunctional cooking mode (3D) ( ).
Page 16
USER MANUAL Presentation This is an electronic timing module that allows your food in the oven to be ready for service at any time you want. You only need to program the cooking time and the time that you want your food to be ready. It may also be used as a minute programmable alarm clock independently of the oven.
Page 17
USER MANUAL When the Power is Interrupted and Restored In case of mains power failure, the oven will remain off for safety reasons. This is indicated with the flashing of the clock on the screen. Clock is displayed as 12:00 on the screen. In such a case, the clock shall be set. (See When the Power is Restored) Remark: Clock flashing on the screen indicates that the oven is deactivated and you shall switch to ‘‘manual mode’’...
USER MANUAL PROGRAM TYPES Function Button: Used for determining the heaters to be used for cooking the dish to be cooked in the oven. The heater program types in this button and their functions are described below. All heater types and program types consisting of these heaters may not be available at all models.
USER MANUAL COOKING RECOMMENDATIONS Below you may find the information about the food we have tested in our laboratories to determine their cooking times. Cooking times may vary as per mains voltage, quality, amount of the ingredients to be cooked, and the temperature.
Page 20
USER MANUAL MAINTENANCE AND CLEANING Periodical cleaning extends the appliance’s life and reduces frequent problems. WARNING: Unplug the appliance. Shock hazard. WARNING: Wait until the appliance cools down before cleaning it. Hot surfaces may cause burns. 1. Do not clean the interior parts, panel, trays and other parts of the appliance with sharp tools such as bristle brushes, steel wool or knives.
Page 21
USER MANUAL Cleaning and Assembly of The Oven Door Figure 7 Figure 8 Figure 7.1 Figure 7.2 Figure 8.1 Figure 8.2 Open the door As shown in figure 7.2, Then, close the oven To remove the oven door, completely by pulling bring the hinge lock to the door you have opened so hold the door with both...
Page 22
USER MANUAL Cleaning of the Oven Glass Open the oven door. Pull out the plastic latches on the right and left side as shown in figure 9 and pull out the profile towards yourself as shown in figure 10. Glass is free after the profile is removed as shown in figure 11. Carefully pull the glass that has become free toward you.
Page 23
USER MANUAL Replacement of the Oven Lamp WARNING: Disconnect power supply and wait for the oven to cool down to eliminate the risk of electrocution before replacing the oven lamp. Hot surfaces may cause burns. Remove the glass protector by rotating it. Using plastic gloves may help you if you have difficulty in rotating it. Then, remove the lamp by rotating it, and install the new lamp with the same specifications.
Page 24
USER MANUAL TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the oven, first check the table below and try out the suggestions. Problem Possible Cause What to Do...
Page 25
USER MANUAL Technical Specifications MGA1-8..: Lamp power 15-25 W 40-240 / Max °C Thermostat Bottom heater 1200 W Top heater 1200 W Turbo heater 1800 W Grill heater Small grill 1200 W Large grill 2400 W Supply voltage 220-240 V 50/60 Hz. MGA1-6..
Page 26
USER MANUAL HANDLING RULES 1. Do not use the door and/or handle to carry or move the appliance. 2. Carry out the movement and transportation in the original packaging. 3. Pay maximum attention to the appliance while loading/unloading and handling. 4.
Page 27
Local call rates apply* Lines open 9am-5:30pm Monday to Friday *Calls to Creda enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details.
Page 28
Call us now and activate your 3 years guarantee. Thank you for choosing Creda. Your new product is guaranteed against faults and breakdowns for 3 years. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.
Page 29
USER MANUAL Declaration of conformance to product standards This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK. Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
Page 30
USER MANUAL This page is intentionally blank.
Page 31
USER MANUAL This page is intentionally blank.
