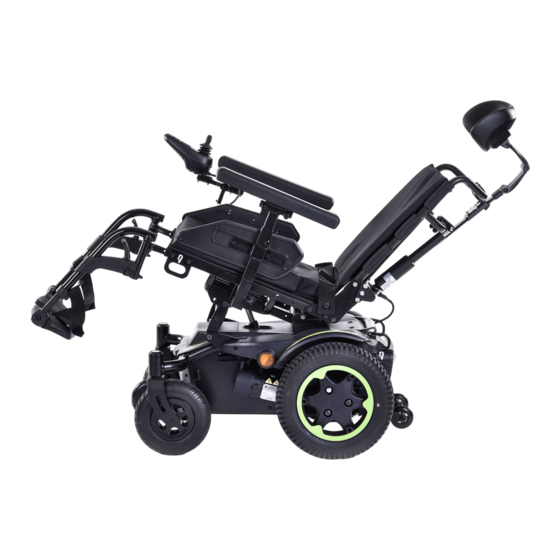

Sunrise Medical QUICKIE ZIPPIE Q200R Instruction Sheet

Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support at +1(800) 333-4000.
Parts included:
1. 1 ea Tilt Actuator (M)
2. 1 ea M8x75 HHCS Shoulder
bolt (C)
3. 1 ea M6x30 SHCS shoulder
bolt (K)
B
2
C
3
F
E
DEALER/TECHNICIAN WARNING
Attention dealers and qualified technicians, do not operate or service this wheelchair without first reading the owners manual. If
you do not understand the instructions and warnings in the owners manual please contact the Sunrise Medical Technical Service
Department before operating and/or servicing the Zippie wheelchair. Failure to do so may result in damage and/or injury.
Find more information and important warnings see the wheelchair owner's manual or at: www.SunriseMedical.com.
4. 1 ea M6 Nut (D)
5. 1 ea M8 Nut (L)
A
D
Note: place a rag between the
mudguard and the seat rails
Sunrise Medical 2842 N. Business Park Ave Fresno, CA 93727 USA
Customer service: +1(800) 333-4000
or visit www.SunriseMedical.com
TILT ACTUATOR REPLACEMENT
Q200R INSTRUCTION SHEET
Required tools:
1. 5mm hex key
2. 2x 13mm socket wrench or
wrench
1

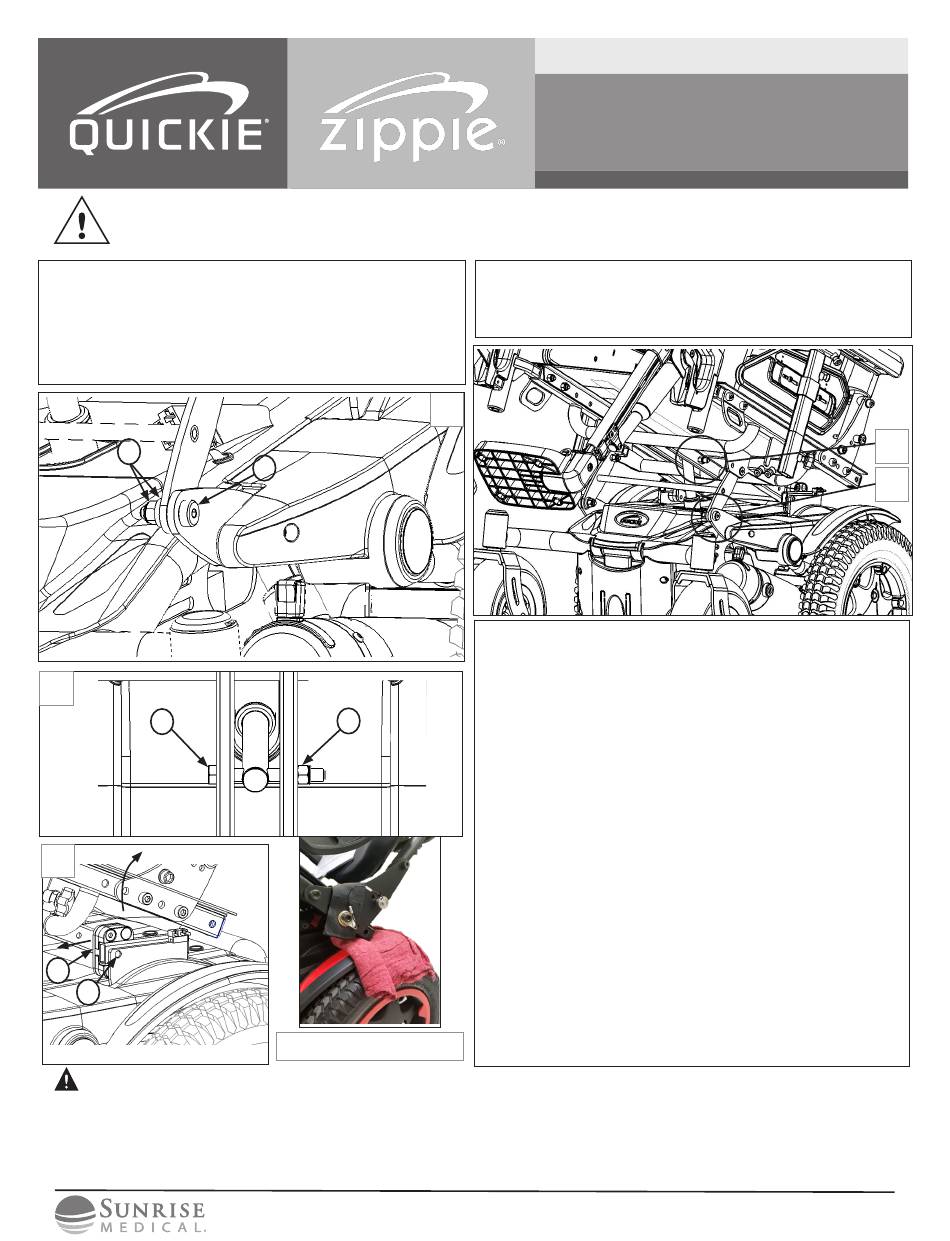

A. Replacing the Tilt Actuator on a Q200R
1. Remove Bolt (A), Washer and Nut (B) on both the left and right
sides. (Fig 1)
2. Remove Bolt (C) and Nut (D) from tilt actuator. (Fig 2)
Note: extending the tilt will help with accessing the bolts.
3. Manually tilt the seat frame back. Place a cloth on top of the
mudguard to protect the shroud and decal. Pull the seat for-
ward on the rear slide block (F) until it reaches the rear mount
stopping pin (E) as shown in figure 3.
3. 4mm hex key
4. 10mm socket wrench
5. Torque wrench
© 2021 Sunrise Medical (US) LLC
02/2022 255572 Rev.A Page 1 of 2
