YASKAWA SOLECTRIA XGI 1500-250/250-600 Installation And Operation Manual

Utility scale 1500vdc string inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

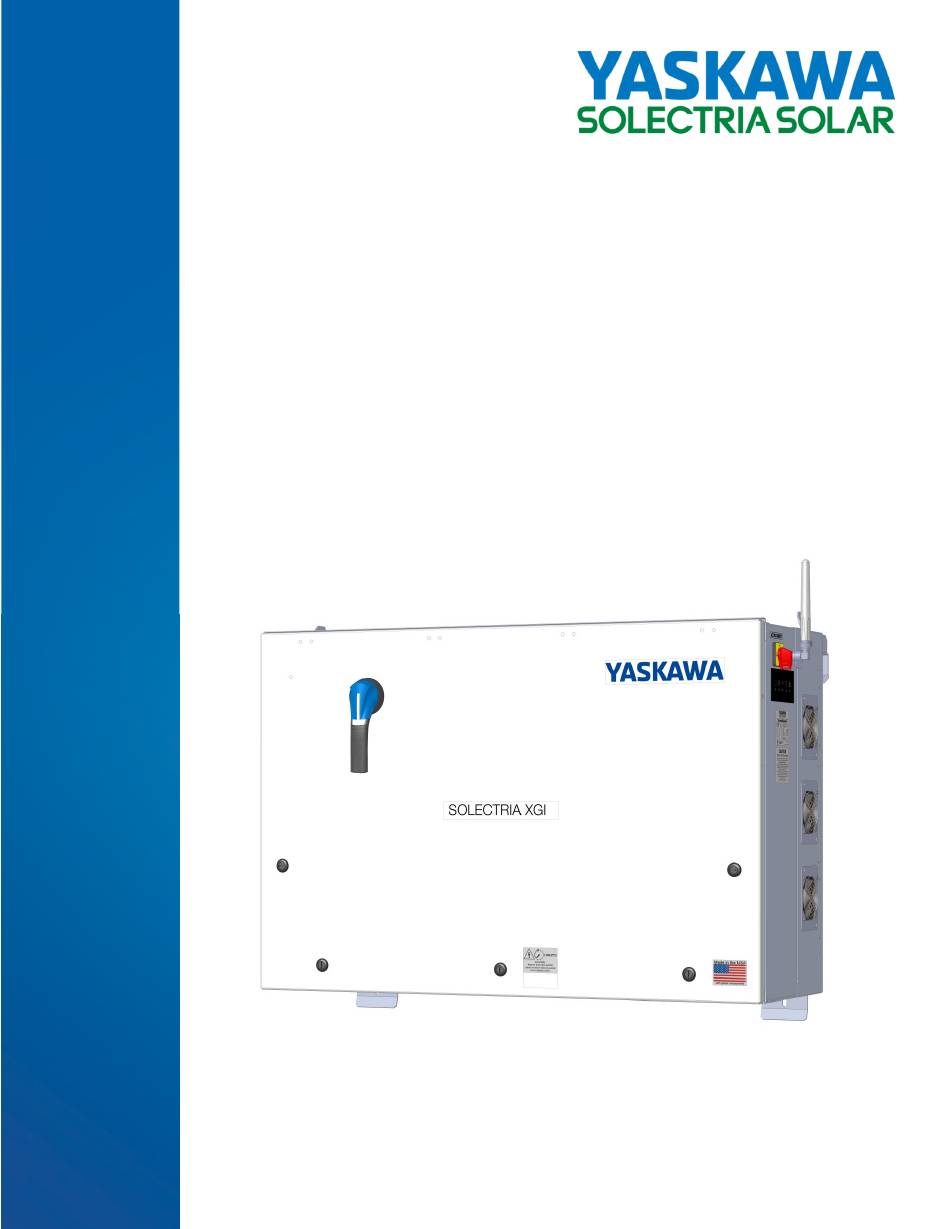

Utility Scale 1500VDC String Inverter
SOLECTRIA
Installation and Operation Guide
Models: XGI 1500-250/250-600
XGI 1500-225-600
XGI 1500-200/200-480
XGI 1500-175-480
®
XGI 1500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLECTRIA XGI 1500-250/250-600 and is the answer not in the manual?

Questions and answers

Related Manuals for YASKAWA SOLECTRIA XGI 1500-250/250-600

Summary of Contents for YASKAWA SOLECTRIA XGI 1500-250/250-600

  • Page 1 Utility Scale 1500VDC String Inverter ® SOLECTRIA XGI 1500 Installation and Operation Guide Models: XGI 1500-250/250-600 XGI 1500-225-600 XGI 1500-200/200-480 XGI 1500-175-480...

  • Page 2: Table Of Contents

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Table of Contents IMPORTANT SAFETY INSTRUCTIONS ....................4 Hazard Symbols ..........................4 Symbols on Labels ..........................4 General Safety Messages ........................5 Status Panel ............................6 Overview ..............................7 Inverter Overview ..........................7 Inverter Placement ..........................
  • Page 3 Temperature and Altitude ........................63 P-Q Curves ............................65 Options ..............................71 Appendix ............................... 71 Warranty and RMA Instructions ......................71 Yaskawa Solectria Solar Contact Information ..................71 Authorization to Mark ......................... 72 DOCR-071074 (Rev 7, 30 MAY 2023) 3 of 72...

  • Page 4: Important Safety Instructions

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters IMPORTANT SAFETY INSTRUCTIONS Hazard Symbols Table 1-1 Hazard Symbols DANGER indicates a hazardous situation, which, if not avoided, will result in serious injury or death. WARNING indicates a hazardous situation, which, if not avoided, could result in serious injury or death.

  • Page 5: General Safety Messages

    De-energize the unit, wait 5 minutes, and verify the absence of voltage before opening the equipment or removing any protective shields. General Damage to Equipment Attempting to service the inverter improperly may result in damage. Contact Yaskawa Solectria Solar Technical Support for maintenance. Read and Follow Instructions Failure to read and follow instructions may void the warranty.

  • Page 6: Status Panel

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Status Panel The status panel consists of five LEDs that provide useful information to the user regarding the function of the inverter. LEDs are shown in Figure 1-1 and defined in Table 1-3. Figure 1-1 Status Panel Table 1-3 Explanation of Symbols on Status Panel Ready (Yellow)

  • Page 7: Overview

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Overview Inverter Overview A solar inverter converts DC power from solar modules to AC power, and exports it to the electrical grid as shown in Figure 2-1. The SOLECTRIA XGI 1500 is a state-of-the-art inverter designed and made in the USA using global components and is compliant with the Buy American Act.
  • Page 8 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters 2.1.2 Inverter Protection Features Short-circuit protection • Anti-islanding protection • Input and output surge protection • Input over-current protection • Self-monitoring variables: • o DC input insulation resistance with respect to ground o AC output voltage and frequency o Leakage current to ground o DC injection in AC output...
  • Page 9 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters 2.1.4 Inverter Features AC On/Off WiFi Antenna Switch DC Disconnect Mounting Status Panel Bracket Cooling Disconnect Power Fans Components User Wiring Mounting Section Bracket Conduit Entry Area Mounting Brackets Figure 2-3 SOLECTRIA XGI 1500 Inverter Features: Front (Left), Right Side (Right), and Bottom (Bottom) DOCR-071074 (Rev 7, 30 MAY 2023) 9 of 72...

  • Page 10: Inverter Placement

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Inverter Placement The SOLECTRIA XGI 1500 inverter is rated for outdoor use and will operate when exposed to direct sunlight or rain. To obtain the best performance and insure longevity of the inverter, it is recommended to mount the inverter out of the direct sunlight.

  • Page 11: Unpacking

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Unpacking When storing the packaged inverters, keep them in an area where they will not get damaged or flooded. Storage temperatures should be maintained in the range -40°F to +167°F (-40°C to +75°C). Open the box carefully to avoid damaging the contents.

  • Page 12: Inverter Size, Spacing And Mounting

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Inverter Size, Spacing and Mounting The dimensions of the XGI 1500 inverter are shown in Figure 3-1. 44.3 in 1125 mm 34.84 in 29.5 in 885 mm 750 mm Figure 3-1 Inverter Dimensions Mount the inverter to 1 inch strut channel as shown in Figure 3-4.
  • Page 13 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Use Figure 3-3 to space strut channels for mounting. The holes on the bottom use the center as the reference point and the hook at the top uses the top of the upper strut channel as its reference point. Use two 8 mm ( in) bolts (not provided) to connect the bottom brackets to the strut channel.
  • Page 14 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Attach the inverter, with its mounting brackets in place, to the strut channel as shown in Figure 3-4 and Figure 3-5. The top brackets fit over the upper strut bar to hang the inverter while securing the upper and lower brackets to the strut channel.
  • Page 15 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters When positioned on the strut, the inverter and strut channels should appear as in Figure 3-5. To secure the inverter in place, use two 8mm ( in) bolts (not provided) through the holes provided in the top face of the upper brackets, and two more through the front face of the lower bracket.

  • Page 16: Wiring

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Wiring Turn the AC Switch to OFF before wiring. The AC switch is located on the right side of the inverter (Figure 2-3.) Turn AC Switch to OFF Verify the absence of AC voltage. Terminations are rated for both 75°C and 90°C rated conductors.
  • Page 17 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters When opening the inverter cover, both cover supports must be fully engaged to secure the cover in the upward position. An unsecured cover could fall down and injure nearby personnel. When replacing the cover, all 5 latches must be secured to maintain the enclosure rating.
  • Page 18 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters 3.3.2 Bottom Conduit Entry All conduit entries must pass through the designated area in the bottom of the inverter. Be sure to remove all metal chips from the inverter after drilling to prevent metal chips and other debris from potentially damaging the inverter.

  • Page 19: Transformer Configuration

    Yaskawa Solectria Solar’s XGI 1500 three-phase transformerless inverters require AC output connection to a wye configured service with a solidly grounded neutral (see Figure 3-10). The XGI inverter leaves the factory with Neutral bonded to Equipment Ground;...
  • Page 20 The XGI 1500 inverter cannot operate connected to a delta service, corner grounded service, or wye with a fully-insulated neutral. For more information please refer to Solectria’s application note on this topic: Interconnection Guidelines for Yaskawa Solectria Solar XGI 1000 and XGI 1500 Inverters. DOCR-071074 (Rev 7, 30 MAY 2023)

  • Page 21: Equipment Grounding

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Equipment Grounding Improper Transformer Configuration Inverter will not run and may have hazardous current. Connect transformer in specified configurations only. Incorrect transformer configuration may cause damage to the inverter. The XGI 1500 must be bonded using equipment grounding provisions. Do not attempt to ground either DC pole.

  • Page 22: Ac Connections

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters AC Connections The AC connections consist of the 3 AC Phases (L1, L2, and L3) and Ground. AC wires must be rated for at least 600 VAC. Use wires within the ranges shown in Table 3-2, and sized as required to comply with local codes and the National Electrical Code.
  • Page 23 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 3-13 Installation of Single or Parallel Conductor Sets Although a neutral terminal is available, a neutral conductor is not required for inverter operation. The neutral terminal is bonded to chassis and only used for voltage sensing. If a neutral conductor is installed, torque the neutral terminal based on the conductor size according to Table 3-3 using either 3/16 Allen hex key or a slot torque driver.

  • Page 24: Ac Breaker Specifications

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters AC PHASE CONNECTIONS Figure 3-14 AC Connections – Neutral and Ground (Left) and AC Phases (Right) For aluminum connections, follow these steps to prepare the wires, one wire at a time. a) Remove the appropriate amount of wire insulation b) Use a wire brush to remove the oxidation layer from the aluminum conductors.

  • Page 25: Dc Connections

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters DC Connections The PV source circuits must be combined external to the inverter using the XGI Remote Combiner box. 3.8.1 General DC Connection Information The SOLECTRIA XGI 1500 is a single DC input into one MPPT zone. Perform the calculations based on the total inverter nameplate AC power rating.

  • Page 26: Dc Connection Using The Xgi Remote Combiner (Cr1500-Xxp-Yys-400)

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters DC Connection Using the XGI Remote Combiner (CR1500-xxP-yyS-400) Wire the DC Connections as shown in Figure 3-15 using the wire sizes shown in Table 3-6. Figure 3-15 DC Connections from a Solectria CR1500 Remote Combiner Table 3-6 DC Input Wire Size XGI 1500-250/250-600, XGI 1500-225-600 Models...

  • Page 27: Conduit Sealing

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Conduit Sealing All conduit entrances must be sealed with conduit foam. Ensure to use a product that is listed for use in electrical applications. Polywater ® ATF Spray Foam Sealant is an excellent option. Follow the manufacturer’s recommendations when sealing conduit entrances.

  • Page 28: Antenna Mounting

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Antenna Mounting Mount the antenna as shown in Figure 3-8. The antenna works best when oriented vertically. Figure 3-18 Mounting the Antenna Replace Wiring Box Cover Release the cover supports and gently lower the cover into place. Use a flat-head screwdriver to secure the 5 cover latches by rotating them each 90 degrees.

  • Page 29: Startup And Verification Test

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Startup and Verification Test Electrical Shock Hazard Installer may come into contact with components that have hazardous voltage and energy. Use proper safety equipment when energizing the inverter. Startup Checklist Mechanical Installation ...

  • Page 30: Commissioning Test

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters  Verify that the Status Panel illuminates READY and that neither MAINTENANCE nor POWER FAULT LED is illuminated. If the LEDs are not in this state, see Section 9 Maintenance and Troubleshooting. ...

  • Page 31: Communication Installation And User Interface

    Ethernet using a PC. The SOLECTRIA XGI inverters are compatible with Solectria’s SolrenView with no additional hardware required. Yaskawa Solectria Solar also supports integration with other third-party monitoring platforms. This section includes important information regarding communication design requirements, wiring requirements, and installation instructions.
  • Page 32 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters XGI Inverters can be clustered using Ethernet daisy chains (Figure 5-1Error! Reference source not found.), mixed networks using Ethernet switches (Figure 5-2), or any combination to form a multi-cluster configuration (Figure 5-3).
  • Page 33 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 5-2 Mixed network DOCR-071074 (Rev 7, 30 MAY 2023) 33 of 72...

  • Page 34: Xgi Gateway Inverters Firewall

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Cluster A INV A1, Gateway INV An Inverter Firewall Switch Optional, Long Haul Fiber Modem or Cluster B Internet Gateway Switch or Internet INV B1, Gateway INV Bn Rou ter Inverter Firewall Cluster C...

  • Page 35: Monitoring Compatibility

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Cluster LAN - All other Ethernet devices - - XGI Inverters Only - Modem or INV 1, Gateway INV 50 INV 49 INV 2 Internet Inverter Gateway Internet Firewall Other Device Other Device...

  • Page 36: Static Ip Configuration, Gateway Inverter

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Static IP Configuration, Gateway Inverter Gateway inverters can be manually configured using a static IP. It is important to identify which Ethernet Port is configured with the static IP and ensure this is connected to the LAN. Once a static IP is configured the port will no longer function as a Cluster connection.
  • Page 37 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters By default the Gateway Inverter will detect and recommend an IP/Subnet from which external devices are allowed through the Inverter Gateway Firewall. For security purposes the user is encouraged to enter the most restrictive value, with preference given to the specific IP address of the external device (DAS).

  • Page 38: Static Routing

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 5-7 Port Forwarding 5.9.3 Port Forwarding, DAS Configuration The External Access IP and respective Port settings must be configured on the third-party monitoring platform or DAS. This will allow the DAS to query the desired inverter properly. Static Routing To implement Static Routing the XGI Gateway Inverter(s) will need to be configured and a static routing rule will need to be added to the LAN.

  • Page 39: Manage Cluster Ip Address

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 5-8 Enabling external Modbus access, static routing 5.10.2 Static Routing, Entering Static Routing Rule on LAN A static routing rule can be implemented on any permanently installed device on the LAN. Most commonly this is configured on the Internet Gateway Modem/Router or the third-party DAS (if feature is provided).

  • Page 40: Communication And I/O Ports

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 5-9 Manage IP Configuration Communication and I/O Ports The SOLECTRIA XGI has two interchangeable Ethernet Ports. These connections are located in the right hand compartment within the Wire Box. 5.12.1 Weather Station Connection (Optional) Only use weather stations that connect using Ethernet.

  • Page 41: Graphical User Interface

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Graphical User Interface The XGI series of inverters operate on an advanced communication platform that provides the operator with an unparalleled level of access and control. The user interface is designed to be intuitive and easy to use, however, it is important to understand the supported network topologies and some XGI specific terminology that is used within this document.
  • Page 42 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters INFO ✔ No Built in Keypad: To provide a more robust GUI and remove a common failure point, the XGI does not contain a built in keypad. The XGI has an LED Status Panel that provides a visual indication of the inverter status but does not allow the user to control the inverter.
  • Page 43 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters 6.2.2 Connecting to the Inverter, WiFi To access the inverter using WiFi, connect the smart device or laptop to the WiFi network (see Error! Reference source not found. for default SSID). Wait 15 seconds for the laptop to obtain an IP address from the XGI Inverter.
  • Page 44 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 6-1 Inverter List Example Table 6-3 Explanation of Symbols in User Interface Symbol Explanation Inverter OK: This indicates that the inverter is on the Reference List and functioning normally. Inverter Missing: This indicates that the inverter is on the Reference List but is undetected.
  • Page 45 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 6-2 Inverter Home Page (Observer Mode) Selecting the inverter status icons will give their current state, as shown in Error! Reference source not found.. Figure 6-3 Current Status with Network and Communication Working and Maintenance with an Event The menu button is located in the upper left corner, represented by three horizontal lines (≡).
  • Page 46 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters 6.2.5 Logging In Before logging in, the user interface is in observer mode. Logging in is necessary to view and access the Inverter Configurations options in the menu in administrator mode. Everything that is accessible in observer mode is also accessible in administrator mode.

  • Page 47: Menu Structure

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Menu Structure This menu structure is subject to change as firmware updates are released. Inverter List Jump to Other Select Inverter Inverters in to View Cluster Home Live Measurements Inverter Status Inverter Info Charts AC Power...

  • Page 48: Firmware Updates

    Firmware Updates SOLECTRIA XGI inverters support local and remote firmware updates. Remote updates are performed automatically from the Yaskawa Solectria Solar server or manually via the Remote Access Portal (with subscription). Local firmware updates can be performed with a laptop and an Ethernet cable.
  • Page 49 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 7-1 Firmware Update DOCR-071074 (Rev 7, 30 MAY 2023) 49 of 72...

  • Page 50: Communication Commissioning

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Communication Commissioning Once all inverters are installed and energized, the XGI communications can be commissioned. Before proceeding ensure that the following conditions are met:  All inverters energized, (DC voltage) ...

  • Page 51: Maintenance And Troubleshooting

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Maintenance and Troubleshooting If an inverter is not running correctly, the Status Panel will show that there is an issue. When the inverter is working normally, the three leftmost LEDs are lit (Ready, Network and Communications, and Power) and the two on the right will be off (Maintenance and Power Fault).
  • Page 52 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Check to ensure external fans are clear of debris and are operating. Critical Over Internal hardware temperature -If external fans are not operating. Temperature has exceeded the allowable limits. Contact Technical Support, fans may need to be replaced.
  • Page 53 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters 9.1.2 Warning Events Warning events will always result in the inverter ceasing AC power production, but the inverter can self-recover if conditions causing the event cease. A warning event is indicated by the inverter illuminating the Maintenance LED (wrench).
  • Page 54 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Using a CAT III multi-meter verify the AC frequency. If there is a discrepancy AC Very High of greater than 2% between the AC high frequency region 2 Frequency 2 measured results and the frequency detected.
  • Page 55 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Power cycle the inverter. If the inverter Communication Communication processor doesn’t clear the error, contact 3 Fault hardware fault. Technical Support. Check to make sure the Ethernet connections are firmly seated. Check Network Fault A network connection has failed.

  • Page 56: Regular Preventative Maintenance

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Regular Preventative Maintenance Solectria’s warranty terms require regular preventative maintenance. It is recommended to perform this service annually, adjusting the service interval as needed depending on site conditions. It may be necessary to perform the preventative maintenance more frequently during the first year to determine the appropriate service interval.
  • Page 57 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 9-1 Inverter Wiring Compartment 5. While the cover is off, perform a visual inspection of the wiring box compartment, looking for water, excessive debris, discoloration of components, quality of workmanship, pests, or anything else that may interfere with proper inverter operation.
  • Page 58 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 9-2 Inverter Fan Gaurds Debris may also collect in the cooling plenum, on the heatsinks, and inductors located in this section of the inverter. A removable panel located at the rear of the inverter provides access for cleaning. Figure 9-3 Rear Access Panel DOCR-071074 (Rev 7, 30 MAY 2023) 58 of 72...
  • Page 59 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Do not use any metallic tools within the cooling plenum as this could damage the insulation on the inductors. To clean the cooling plenum: 1. Turn off the inverter, first by moving the DC Switch on the inverter to the “OFF” position, then by turning the AC Switch on the inverter to the “OFF”...

  • Page 60: Specifications

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Specifications General Specifications Table 10-1 General Specifications XGI 1500-250/250 XGI 1500-225 XGI 1500-200/200 XGI 1500-175 Max Input Voltage 1500 VDC Full Power Input 860 to 1250 VDC 860 to 1250 VDC 750 to 1250 VDC 750 to 1250 VDC Voltage Range...

  • Page 61: Measurement Accuracy

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Measurement Accuracy Table 10-2 Accuracy Specifications Enclosure Table 10-3 Enclosure Information Enclosure Finish, Rating Polyester Powder-Coated Aluminum, NEMA 4X, IEC IP66, Type 3R Height: 29.5 in. (750 mm) Dimensions Width: 44.3 in. (1125 mm) Depth: 15.4 in.
  • Page 62 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters No trip 88% <= V < 110% No trip 13 s 110% <= V <= 120% 1.0 s 0.16 s f > 120% 0.16 s Table 10-5 Frequency Limits and Trip Times Clearing Time Adjustable Up to Frequency Range (±...

  • Page 63: Temperature And Altitude

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Figure 10-2 Derating with DC Voltage Temperature and Altitude XGI 1500- XGI 1500-225- XGI 1500- XGI 1500-175- 250/250-600 200/200-480 Ambient Temperature Range -40°F to +140°F (-40°C to +60°C) Derating Temperature 113°F (45°C) 127°F (53°C) 113°F (45°C)
  • Page 64 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters % of Power vs Ambient Temp Thermally derated power measured at nominal DC input voltage Ambient Temp (C) 250kW / 200kW 175kW 225kW Figure 10-3 Derating with Temperature (Thermally derated power measured at nominal DC input voltage) % of Rated Full Power vs Altitude Altitude (km) Figure 10-4 Derating with Altitude...

  • Page 65: P-Q Curves

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters P-Q Curves XGI 1500V-250kW/250kVA – Reactive Capability Data -100 -150 -200 -250 -300 Nameplate Operating Reactive Capability Inverter Limit S Limit 250 kVA P Limit 250 KW Over-Excitation p.f. limit 0.80 Under-Excitation p.f.
  • Page 66 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters XGI 1500V-225kW/250kVA – Reactive Capability Data -100 -150 -200 -250 -300 Nameplate Operating Reactive Capability Inverter Limit S Limit 225 kVA P Limit 250 KW Over-Excitation p.f. limit 0.80 Under-Excitation p.f. limit 0.80 DOCR-071074 (Rev 7, 30 MAY 2023) 66 of 72...
  • Page 67 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters XGI 1500V-225kW/225kVA – Reactive Capability Data -100 -150 -200 -250 Nameplate Operating Reactive Capability Inverter Limit S Limit 225 kVA P Limit 225 KW Over-Excitation p.f. limit 0.80 Under-Excitation p.f. limit 0.80 DOCR-071074 (Rev 7, 30 MAY 2023) 67 of 72...
  • Page 68 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters XGI 1500V-200kW/200kVA – Reactive Capability Data -100 -150 -200 -250 Nameplate Operating Reactive Capability Inverter Limit S Limit 200 kVA P Limit 200 KW Over-Excitation p.f. limit 0.80 Under-Excitation p.f. limit 0.80 DOCR-071074 (Rev 7, 30 MAY 2023) 68 of 72...
  • Page 69 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters XGI 1500V-175kW/200kVA – Reactive Capability Data -100 -150 -200 -250 Nameplate Operating Reactive Capability Inverter Limit S Limit 175 kVA P Limit 200 KW Over-Excitation p.f. limit 0.80 Under-Excitation p.f. limit 0.80 DOCR-071074 (Rev 7, 30 MAY 2023) 69 of 72...
  • Page 70 ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters XGI 1500V-175kW/175kVA – Reactive Capability Data -100 -150 -200 Nameplate Operating Reactive Capability Inverter Limit S Limit 175 kVA P Limit 175 KW Over-Excitation p.f. limit 0.80 Under-Excitation p.f. limit 0.80 DOCR-071074 (Rev 7, 30 MAY 2023) 70 of 72...

  • Page 71: Options

    XGI 1500-250 Series Inverters Options Yaskawa Solectria Solar offers 1500V combiner products, designed exclusively to pair with SOLECTRIA XGI 1500 inverters. The Remote Combiners (CR-XGI1500 series) are designed for a centralized or clustered deployment of multiple XGI 1500 inverters with the Remote Combiners distributed throughout the PV array field.

  • Page 72: Authorization To Mark

    ® Installation and Operation Guide SOLECTRIA XGI 1500-250 Series Inverters Authorization to Mark (To be updated with SB, etc.) DOCR-071074 (Rev 7, 30 MAY 2023) 72 of 72...
