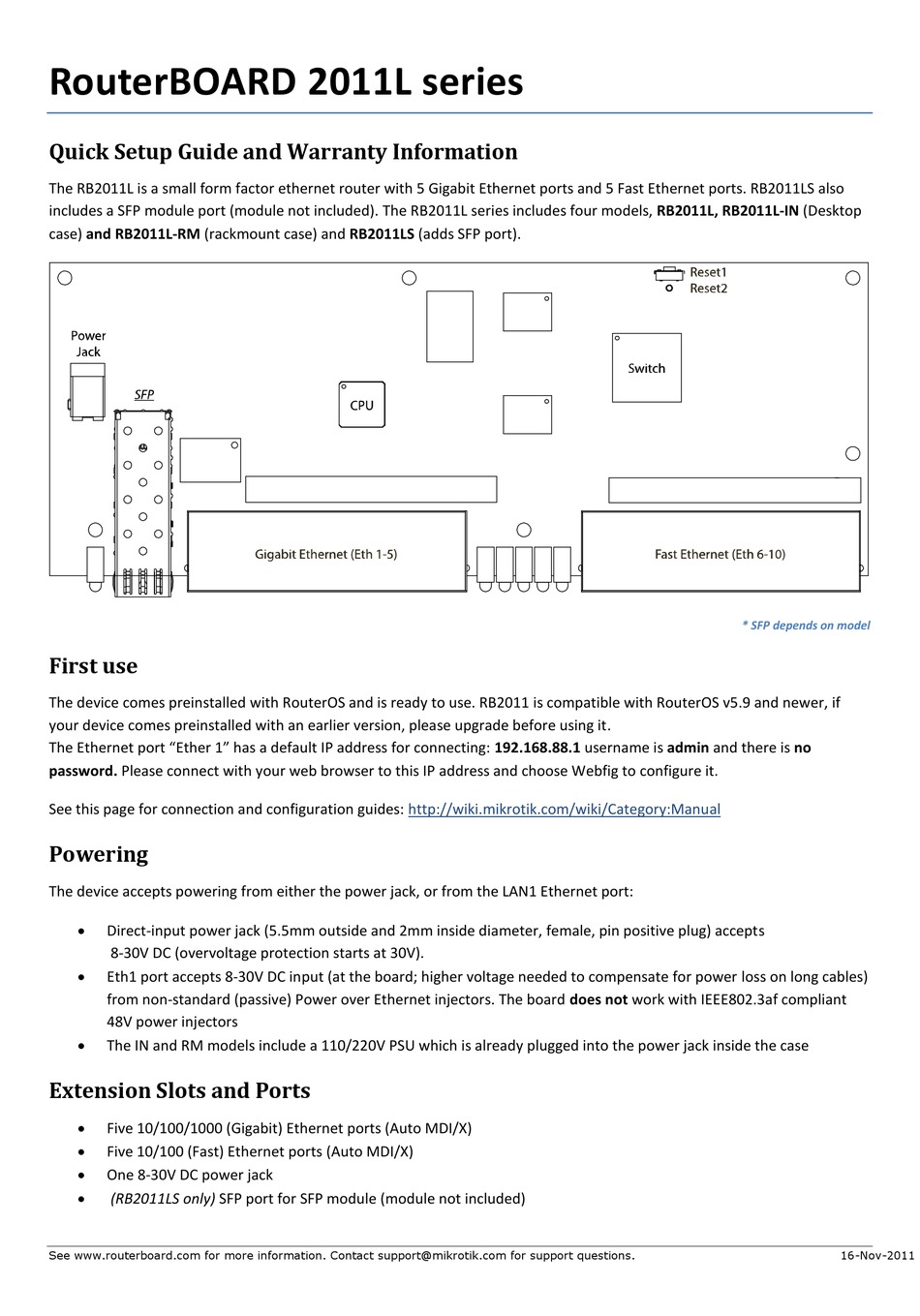

RouterBOARD 2011L series
Quick Setup Guide and Warranty Information
The RB2011L is a small form factor ethernet router with 5 Gigabit Ethernet ports and 5 Fast Ethernet ports. RB2011LS also
includes a SFP module port (module not included). The RB2011L series includes four models, RB2011L, RB2011L-IN (Desktop
case) and RB2011L-RM (rackmount case) and RB2011LS (adds SFP port).

First use

The device comes preinstalled with RouterOS and is ready to use. RB2011 is compatible with RouterOS v5.9 and newer, if
your device comes preinstalled with an earlier version, please upgrade before using it.
The Ethernet port "Ether 1" has a default IP address for connecting: 192.168.88.1 username is admin and there is no
password. Please connect with your web browser to this IP address and choose Webfig to configure it.
See this page for connection and configuration guides:

Powering

The device accepts powering from either the power jack, or from the LAN1 Ethernet port:

Direct-input power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) accepts
8-30V DC (overvoltage protection starts at 30V).

Eth1 port accepts 8-30V DC input (at the board; higher voltage needed to compensate for power loss on long cables)
from non-standard (passive) Power over Ethernet injectors. The board does not work with IEEE802.3af compliant
48V power injectors

The IN and RM models include a 110/220V PSU which is already plugged into the power jack inside the case

Extension Slots and Ports


Five 10/100/1000 (Gigabit) Ethernet ports (Auto MDI/X)

Five 10/100 (Fast) Ethernet ports (Auto MDI/X)

One 8-30V DC power jack

(RB2011LS only) SFP port for SFP module (module not included)
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions.
http://wiki.mikrotik.com/wiki/Category:Manual
* SFP depends on model
16-Nov-2011
