Samsung yePP MCD-HF200 Instruction Manual
Portable mp3-cd player mp3-cd, wma-cd, cd-da playback
Hide thumbs
Also See for yePP MCD-HF200:
- Instruction manual (18 pages) ,
- Instruction manual (18 pages)
Related Manuals for Samsung yePP MCD-HF200
Summary of Contents for Samsung yePP MCD-HF200

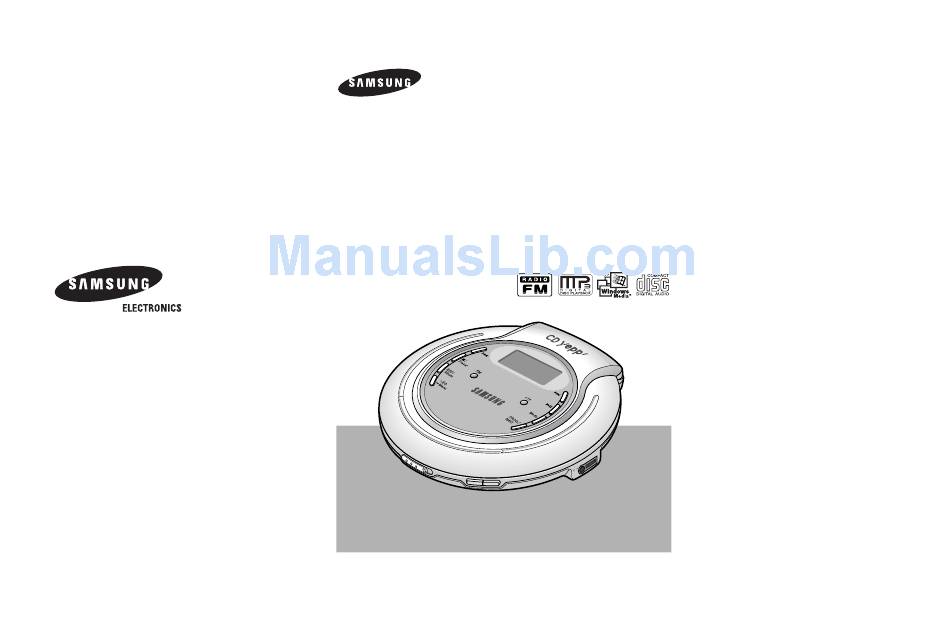

- Page 1 Portable MP3-CD Player MP3-CD, WMA-CD, CD-DA Playback MCD-HF200 MCD-HF200S Instruction Manual AH68-01264K...
-
Page 2: Table Of Contents
Main Features Navigation function MENU function (MP3(WMA)-CD Only) You can easily customize the You can easily scan and select a file settings to your liking. on an MP3(WMA)-CD. ESP function FM Radio Reception You can listen to FM radio using The ESP function ensures high various functions such as resistance to shock or vibration so... -
Page 3: Safety Warning
Safety Warning Take care not to allow dust Do not leave your player Do not use your player on or other contaminants to in direct sunlight or uneven or unstable sur- come into contact with your near a heat source. faces. - Page 4 Buttons and Controls Main Unit Accessories Remote Control Earphone Skip/Search button +10 button • Stop ( ) button Play/Pause ( • Preset button Power Input Jack Mode button ESP/Album button Remote control Connection jack EQ/Menu button PROG./NAVI. button FM button Volume buttons Open switch Bottom of the Main Unit...
-
Page 5: Buttons And Controls
Buttons and Controls Remote Control Hold switch Volume button • Repeat button • Stop button • FM button • Preset button Play/Pause button +10/Album button Skip/Search button Main Unit connection jack Display The picture of the display panel below is based on MP3-CD playback. Class Jazz P.snd album S.bass Rock... -
Page 6: Preparation Before Using Your Unit
Preparation before using your unit How to Connect Connect the earphones to the remote control. Connect the main unit connection jack to the main unit. Using rechargeable batteries (not supplied) Strip the sheath covering the terminals of the rechargeable battery before charging it. Rechargeable Battery (size: AA/LR6) •... -
Page 7: Using Standard Batteries (Not Supplied)
Preparation before using your unit Using standard batteries (not supplied) Open the cover of the battery compartment. Carefully check the correct orientation of the positive and negative terminals of the batteries. • Use two AA/LR6 type 1.5 V batteries. Use two AA/LR6 alkaline batteries. Manganese batteries have a shorter battery life. -
Page 8: Mp3(Wma)-Cd Playback
• Buttons pressed during CD playback will not function. (On the display, the “Hold” indicator will flash.) • Use the HOLD function when carrying your CD Player around with you. Use of this function will allow you to conserve battery life as it prevents the CD Player from being turned on if a button is pressed unintentionally. -
Page 9: Menu Function
MP3(WMA)-CD. • When MP3(WMA)-CD playback is selected again after your CD player has been stopped or turned off, the unit plays back from the start of the track that you last listened to. If the CD cover is opened, the unit resets to Track 1. -
Page 10: Default Function
Default function This function initializes all settings to their default values. Select SYSTEM in the MENU screen, and then use the Iî , ïI buttons to select Default. SYSTEM Last Memory Default Use the Iî , ïI buttons to select Default YES or NO, and then press the Play/Pause ( √»... -
Page 11: Scroll Function
Scroll function This function is used to adjust the scroll speed of the song title. This function is only available during playback of an MP3(WMA)-CD. Select DISPLAY in the MENU screen, and then use the Iî , ïI buttons to select Scroll. -
Page 12: Eq Function
EQ function Briefly press the EQ/Menu button to activate the EQ function or hold it down for longer to activate the Menu function. EQ function What is EQ? Press the EQ/Menu button to select various sound modes such as Rock, Jazz, S.Bass, Classic, Power Sound. -
Page 13: Esp/Album Function
ESP/Album function function (Electronic Skip Protection) ESP prevents the music being interrupted by vibration and shock. Press the ESP/Album button. normal Last Flat • CD Playback: Press the ESP button Boyz II MEN to turn this function on and off. 01 - It's So Hard To (During playback of an MP3-CD, ESP will always be active whether or not the ESP/Album button is pressed.) -
Page 14: Navigation Function
Navigation function You can easily select and play the song you want from the album. This function is only available during In the stop mode playback of an MP3(WMA)-CD. Press the PROG./NAVI. normal button. Root • Albums in the root folder will be Boyz II MEN displayed. -
Page 15: Program Function
Program function You can store up to 30 tracks of your favorite tunes. Example: When storing track number 4 to program number 1. In the stop mode, press the normal PROG./NAVI. button. P : 01 Tr : - - - •... -
Page 16: Listening To Fm Radio
Listening to FM Radio To select the desired radio station Press and hold the FM button. • The frequency of the received station appears on the display of the remote control. 91.9 • Press the button to select either Mono or Stereo. Use the Iî... -
Page 17: Features
Features Playback sequence of albums and tracks • Albums with .jpg, .wav or .doc are not audio files and therefore will be skipped. Document a. hwp Root (skipped) b. gul (Album 1) Album Album Album 8.mp3 9.mp3 5.mp3 10.mp3 6.mp3 7.mp3 11.mp3 12.mp3... -
Page 18: Troubleshooting Guide
Troubleshooting Guide Problem Check Did you insert the battery with the correct polarity? Are the batteries drained? Unit has no power. Is the AC adaptor connected correctly? Is the door open? Is the disc inserted correctly? Is the disc damaged or deformed? Has the unit been locked with the HOLD switch? Has the unit been moved from a cold place to a Playback does not...
