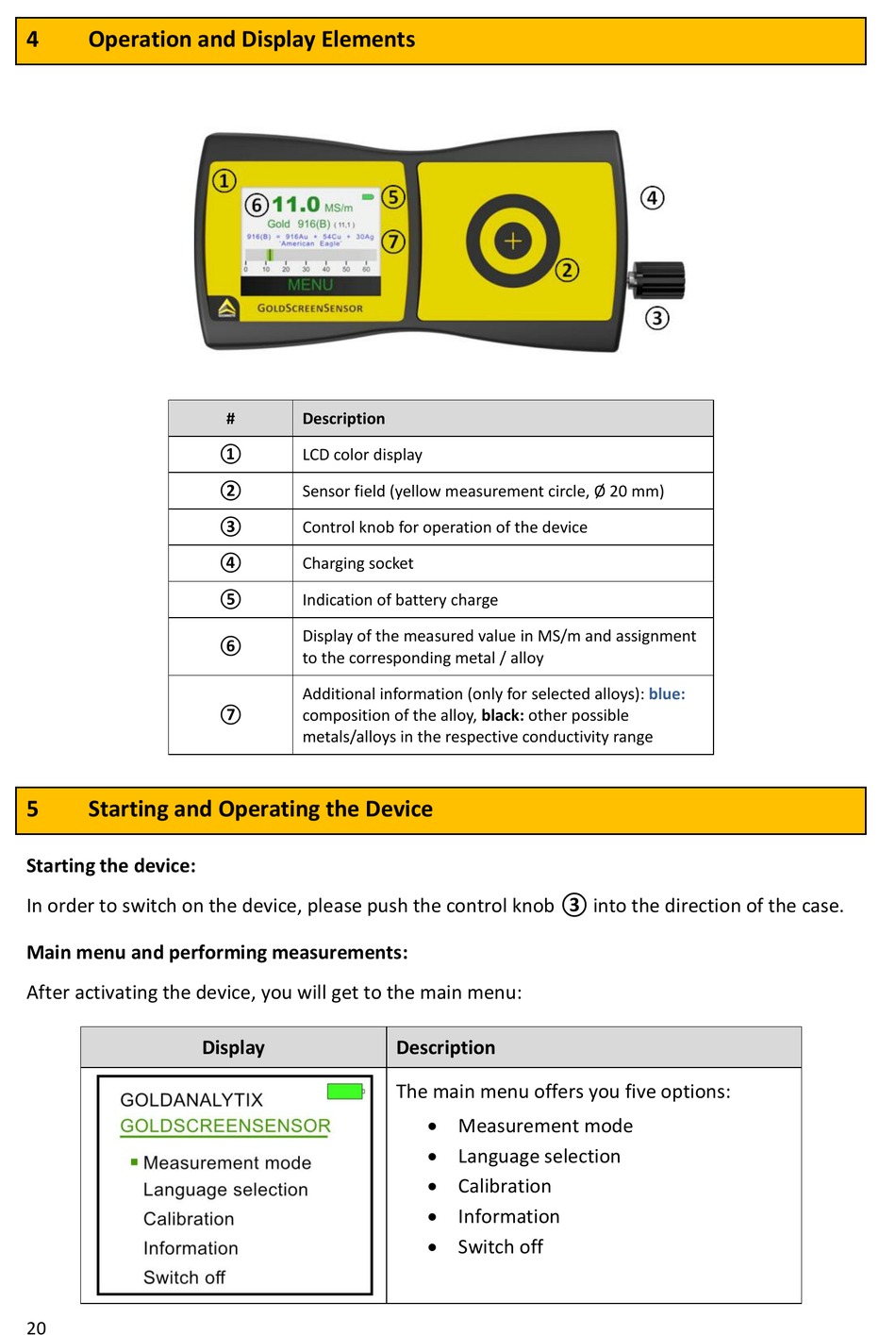

Operation and Display Elements

5

Starting and Operating the Device

Starting the device:
In order to switch on the device, please push the control knob ③ into the direction of the case.
Main menu and performing measurements:
After activating the device, you will get to the main menu:
20
# Description
① LCD color display
② Sensor field (yellow measurement circle, Ø 20 mm)
③ Control knob for operation of the device
④ Charging socket
⑤ Indication of battery charge
Display of the measured value in MS/m and assignment
⑥
to the corresponding metal / alloy
Additional information (only for selected alloys):
⑦ composition of the alloy, black: other possible
metals/alloys in the respective conductivity range
Display Description
The main menu offers you five options:
 Measurement mode
 Language selection
 Calibration
 Information
 Switch off
⑤
blue:
