5 Board Topology

5.1 Front View

Ref. Description
M1 NORA-W106-10B (ESP32-S3 SoC)
J1 CX90B-16P USB-C® connector
JP1 1x15 analog header
JP2 1x15 digital header
U2 MP2322GQH step down converter
U3 GD25B128EWIGR 128 Mbit (16 MB) ext. flash memory
DL1 RGB LED
DL2 LED SCK (serial clock)
DL3 LED Power (green)
D2 PMEG6020AELRX Schottky Diode
D3 PRTR5V0U2X,215 ESD Protection
7 / 20

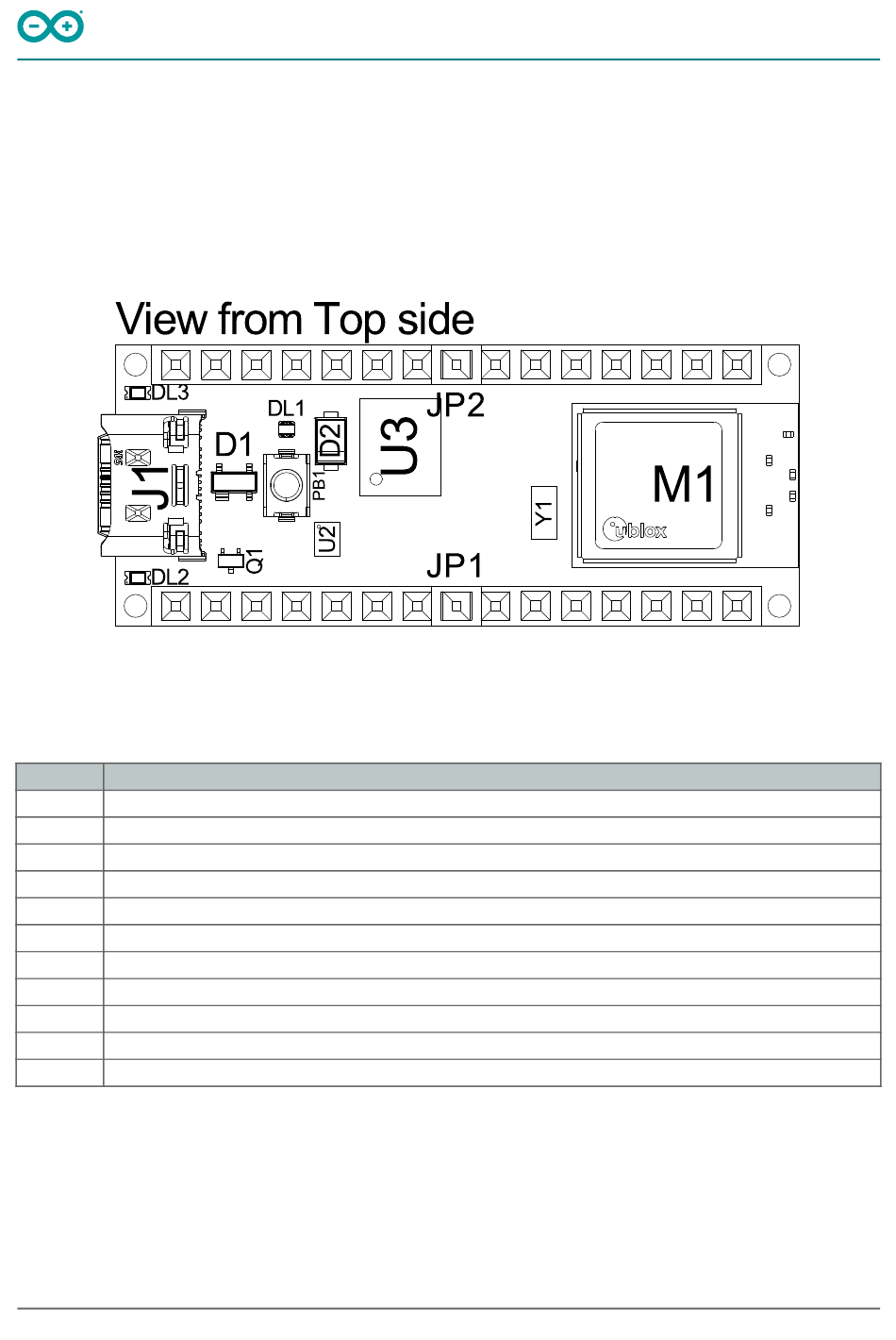

Top View of Arduino Nano ESP32
