3.2 Board Topology

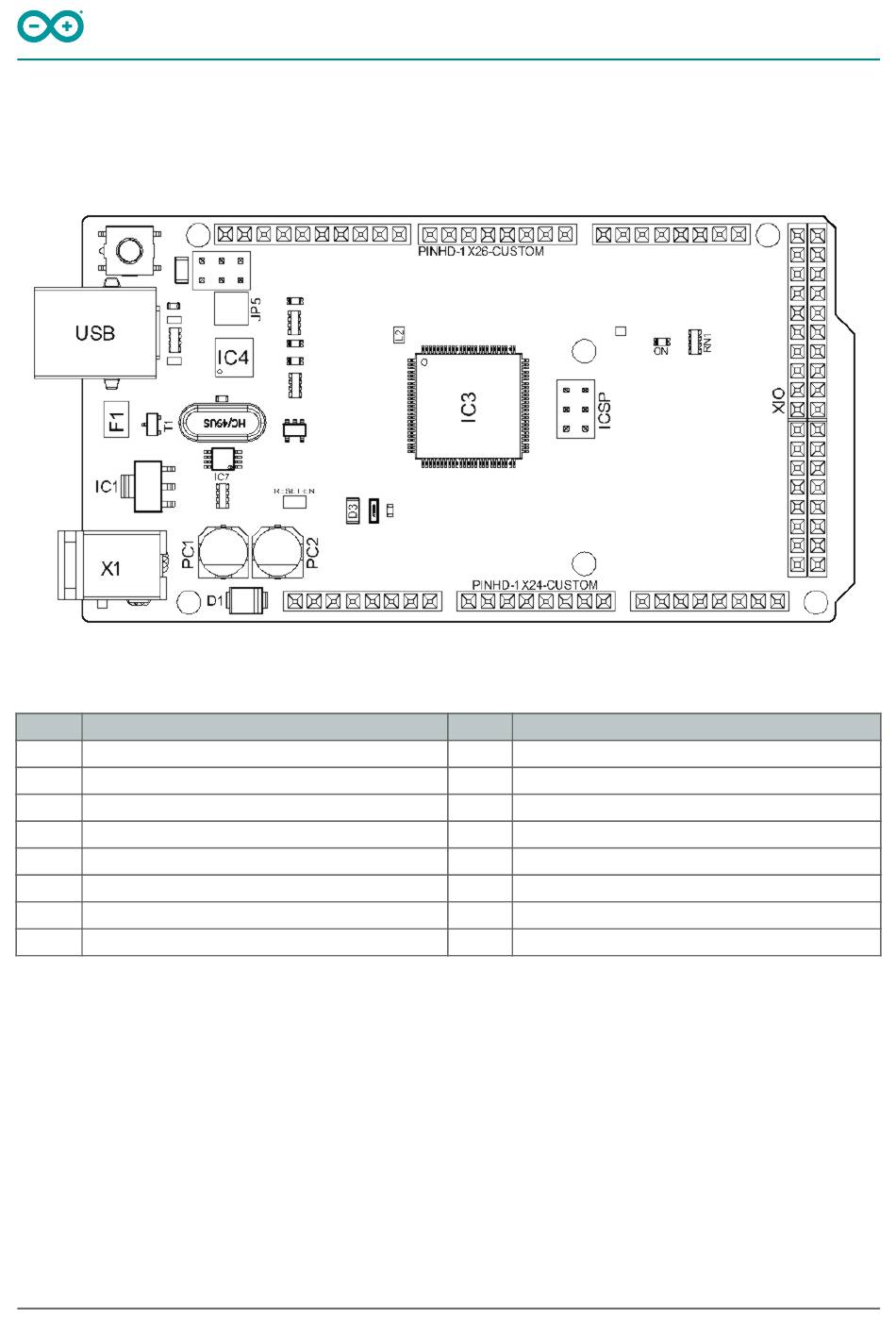

Front View
Ref. Description
USB USB B Connector
IC1 5V Linear Regulator
JP5 Plated Holes
PC1 Electrolytic Alumninum Capacitor
D1 General Purpose Rectifier
L2 Fixed Inductor
ICSP Connector Header
RN1 Resistor Array
7 / 18
Arduino MEGA Top View
Ref.
F1
X1
IC4
PC2
D3
IC3
ON
XIO
Arduino® MEGA 2560 Rev3
Arduino® MEGA 2560 Rev3
Description
Chip Capacitor
Power Jack Connector
ATmega16U2 chip
Electrolytic Alumninum Capacitor
General Purpose Diode
ATmega2560 chip
Green LED
Connector
