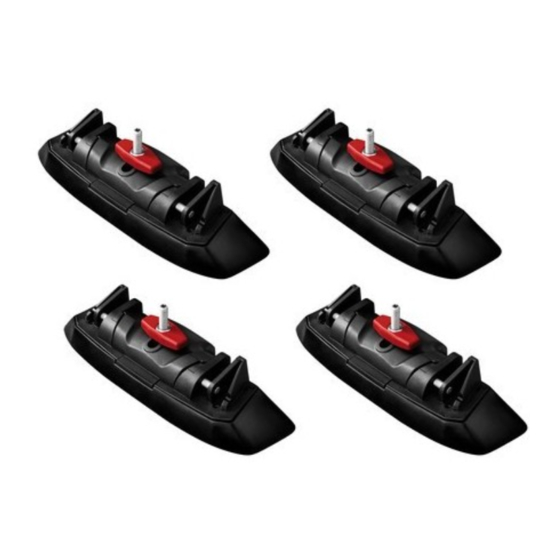

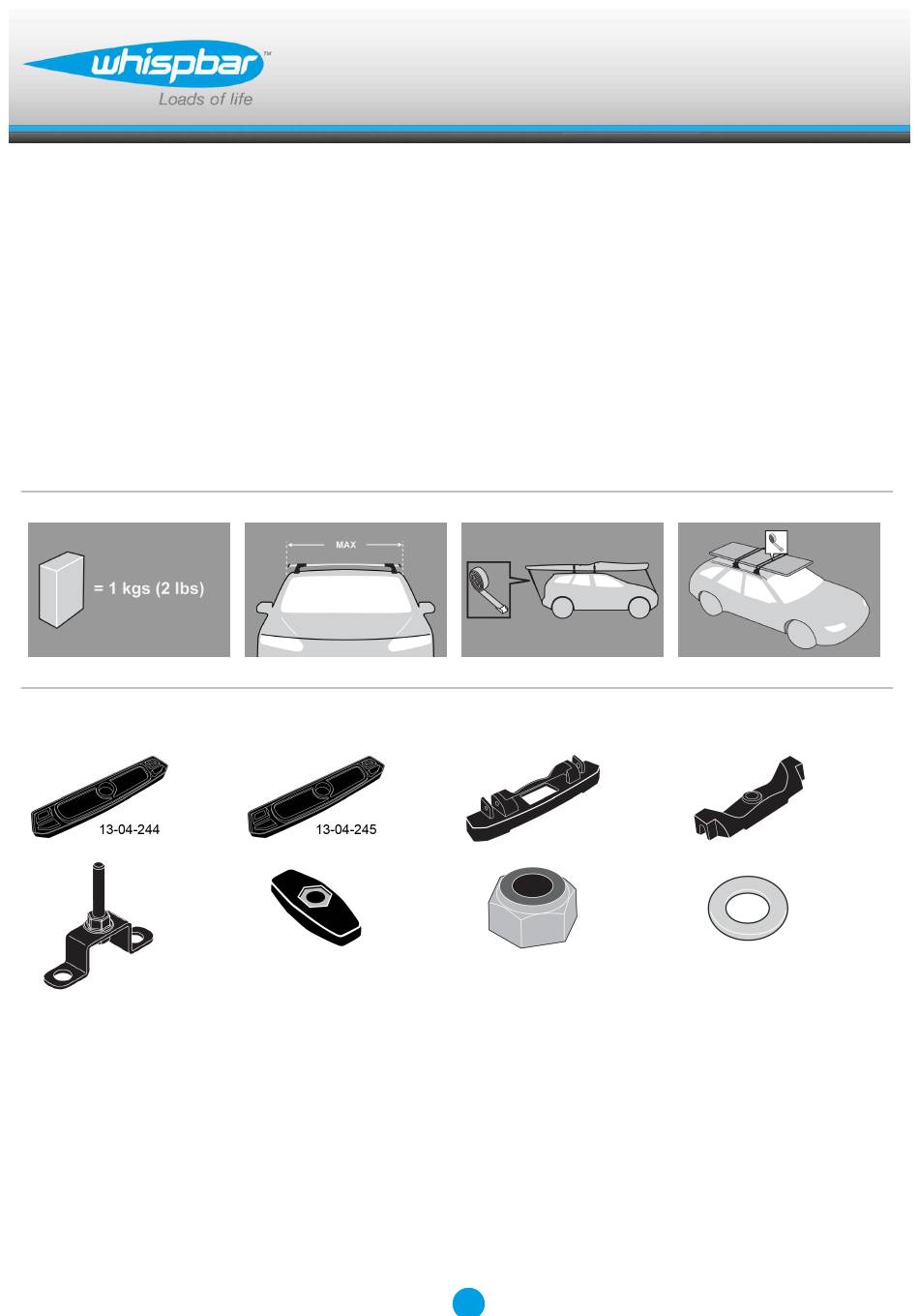

- Page 1 K698W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3B...
- Page 2 Fitting Kit K698W MAX kgs (lbs) Hyundai i30 Tourer, 5dr Wagon 13-17 75 kgs (165 lbs) 75 kgs (165 lbs) i30, 5dr Estate 13-17 75 kgs (165 lbs) 75 kgs (165 lbs) i30, 5dr Wagon 13-17 75 kgs (165 lbs)
- Page 3 Fitting Kit K698W i30 Tourer, 5dr Wagon 13-17 (AU) -180mm 620mm 862mm 808mm -7 -1/16ths" 24 7/16ths" 33 15/16ths" 31 13/16ths" i30, 5dr Estate 13-17 (EU) -180mm 620mm 862mm 808mm -7 -1/16ths" 24 7/16ths" 33 15/16ths" 31 13/16ths" i30, 5dr Wagon 13-17 (NZ)
-
Page 4: First Time Installation
Fitting Kit K698W Items you will require: 12mm Socket 13mm Socket First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. - Page 5 Fitting Kit K698W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K698W Set bars to length (revert to rear of these instructions). Please check the front of this manual for information relating specifically to your vehicle. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar...
- Page 7 Fitting Kit K698W Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist. Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Assemble foot from kit into leg.
- Page 8 Fitting Kit K698W Insert pins through foot into leg. Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Refer to the top side of the pad for the part number.
- Page 9 Fitting Kit K698W Letters refer to the pad part numbers and position. Pad Part Number: A = 13-04-244A B = 13-04-245A Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Fitment Open or remove fixed-point covers.
- Page 10 Fitting Kit K698W Locate stud with the nut attached. Using a 12mm socket, remove existing nut. Install bracket ensuring the short leg sits over the existing nut position.
- Page 11 Fitting Kit K698W Install nuts and washers, tighten with a 13 mm socket to secure the bracket. Ensure bracket is level. Repeat for all four positions. Place crossbar foot over clamp.
- Page 12 Fitting Kit K698W Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the...
- Page 13 Fitting Kit K698W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 14: Maintenance
Fitting Kit K698W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 15 Fitting Kit K698W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 16: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 17 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
