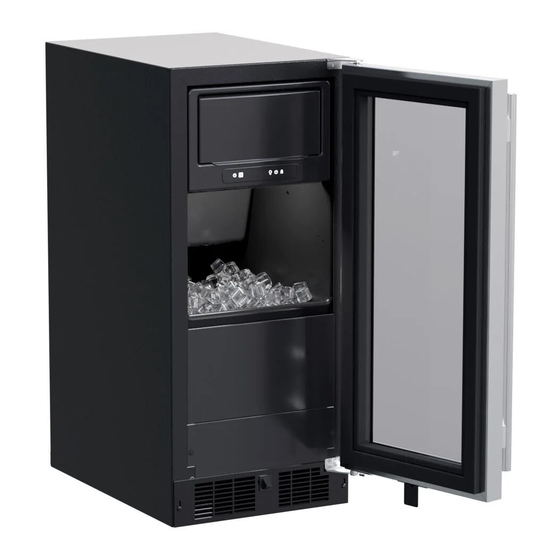

Summary of Contents for Marvel MLCL215-IS01B
- Page 1 GE T TING STARTED QUICK REFERENCE GUIDE MARVEL U NDER COU NTER R EF R IG ER ATION M L C L 2 1 5 - I S 0 1 B M L C L 2 1 5 - S G 0 1 B...
-
Page 2: Table Of Contents
Got a Marvelous Design? NOTE- Important information to help assure a problem We would love to see how your Marvel product looks in its free installation and operation. new home. Send us photos at marketing@marvelrefriger- ation.com, and we might feature your Marvel home design... -
Page 3: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled, or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury. -
Page 4: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in ac- cordance with the National Electrical Code and applicable Do not remove local codes and ordinances (see figure below). -
Page 5: Installing Your Appliance
- even if they sit out for "just a few hours". ice production. For this reason it is important this area not be obstructed and the grille openings kept clean. Marvel follow the instructions below to help prevent does not recommend the use of a custom made grille as accidents. - Page 6 INSTALLING YOUR APPLIANCE Minimum Maximum WARNING Model Height Height " Electrical Shock Hazard " MLC**15 • Do not use an extension cord with this appliance. MOC**15 They can be hazardous and can degrade product Table A MP**15 performance. • electrical supply. •...
-
Page 7: Door Reversal
DOOR REVERSAL Door Reversing Instructions Tools Needed: • 1/8” Hex Key • 5/32” Hex Key • Phillips Screwdriver Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool making sure to steady the Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin Screw and save for later steps On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side... - Page 8 DOOR REVERSAL 6. Remove the Toe Kick from the door and attach it to the opposite side Toe Kick Reversal 7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
-
Page 9: Using Your Electronic Control
Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. Marvel recommends allowing the unit to reach set points before loading. -
Page 10: Installing The Water Supply
INSTALLING THE WATER SUPPLY Water Supply CAUTION Observe and follow all local building codes when installing this appliance. This ice machine must be connected to a potable cold water supply line. delivering water pressure between a minimum of 20 psi and a maximum of 120 psi. "... -
Page 11: Installing The Drain Plumbing
616-754-5601 an appropriate drain and cut to length. CAUTION This drain pump is designed to be installed in Marvel ice machines only and approved for use with water only. WARNING Drain pump vent tube. Electrical Shock Hazard... -
Page 12: Ice Maker Operation
ICE MAKER OPERATION The Ice Making Process sheet is released and slides onto the grid cutter cutter’s heated fractional freezing to form a slab of ice that is clear and wires. The water containing the dissolved minerals is has less dissolved solids than the water it is produced drained after each freezing cycle. - Page 13 ICE MAKER OPERATION Ice Production The ice machine will keep producing ice until the ice machine’s bin is full and will restart automatically when In normal mode the ice machine will produce up to 39 ice needs to be replenished in the bin. The ice bin is pounds (17.7 kg) of clear ice in a 24-hour period when installed in a 72°F ambient with a 55°F water supply.
-
Page 14: Care And Cleaning
CARE AND CLEANING Refer to your cleaning solution instructions to determine the proper amount of cleaning solution to add based on evaporator plate. Pour the cleaning the fresh water reservoir. Splash shield Splash shield brackets Lift fascia door up to access evaporator plate Remove all of the ice from... - Page 15 If Service is Required: It is strongly recommended to periodically inspect and • please contact your dealer or call Marvel Customer Service at 616-754-5601 for directions on how to obtain warranty coverage in your area. showing signs of corrosion should be replaced.
-
Page 16: Warranty
For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase. - Page 18 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
