PRIOR TO INSTALLATION.

Prior to installation.
Make sure to confirm the model name and serial number of the unit.
Handling.
Due to the relatively large size and heavy weight of the unit, it must only be handled with lifting equipment with harnessing. The harness-
es can be fitted in the sleeves on the base frame, specifically made for this purpose.
• To avoid injuries, do not touch the air inlet or the aluminium fins of the unit.
• Do not use the grips of the fan grilles so as not to damage them.
• The unit is very heavy! Do not allow it to fall due to an incorrect inclination during handling.
Models 4-16 kW
A

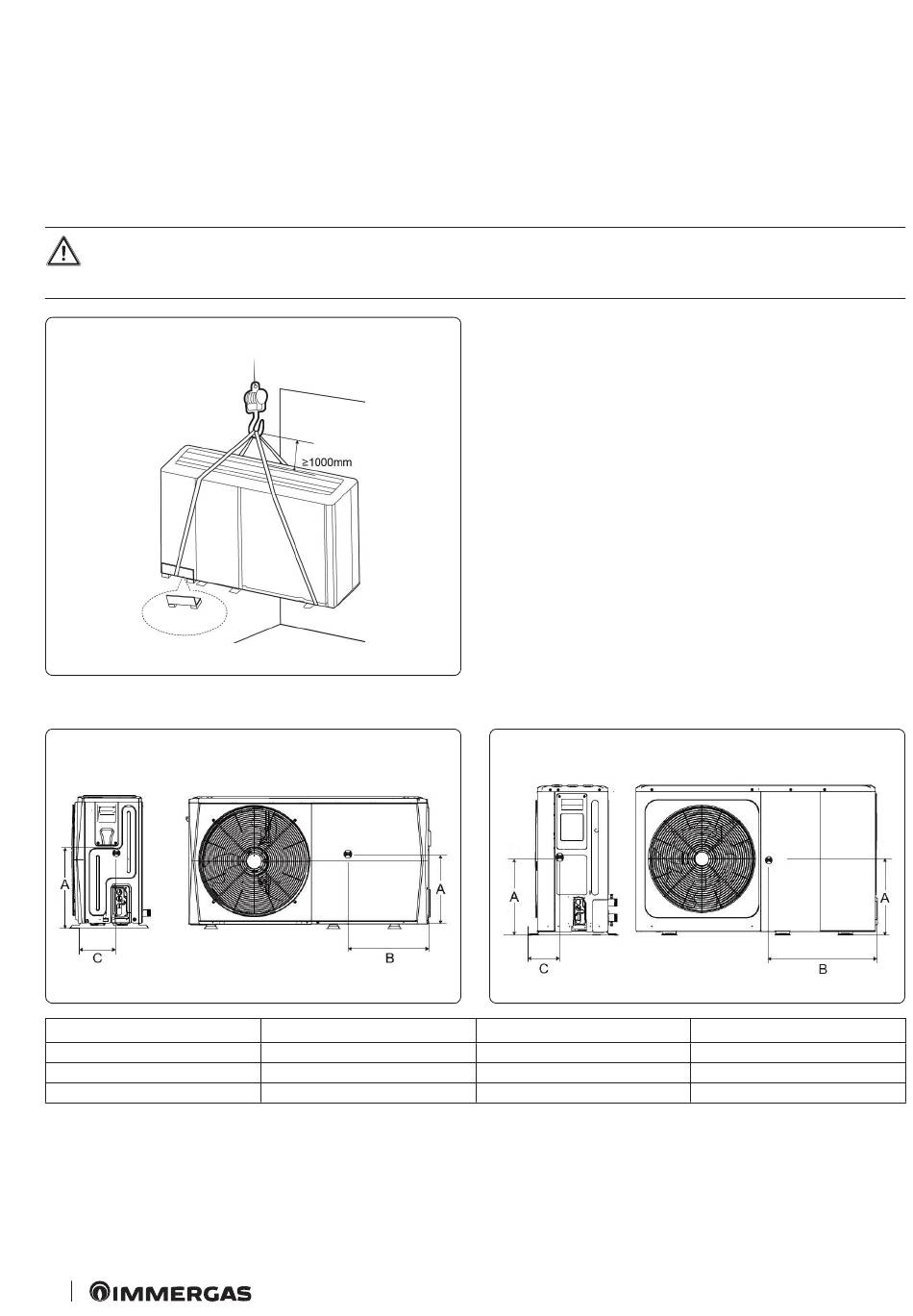

Position of the centre of gravity of the units 4-6 kW and 8-16 kW.
Models 4-6 kW
Model
Single phase 4-6 kW
Single phase 8 kW
Three-phase 12-14-16 kW
16
Key (Fig. 12):
A
The hook and the centre of gravity of the unit must be on a vertical
line to avoid an improper inclination.
Have the lifting cord pass as represented in the image (Fig. Models
4-16 kW12):
12
13
A
295 mm
330 mm
200 mm
- Angular
Models 8-16 kW
B
540 mm
580 mm
605 mm
14
C
190 mm
280 mm
245 mm
