Assembly Instructions & User's Manual
for

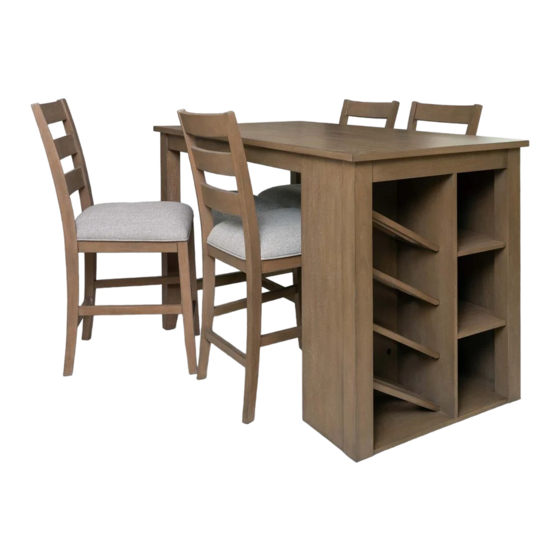

Kaylen 5pc High Dining Set with Storage, Ash
Blonde -Table
Item Number: 990292966
Model Number: TP-0002ASHB5PDI
Abbyson Customer Experience Team
1-888-406-0838
(spare/replacement parts):
or Email:
samsclub@abbysonliving.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Abbyson Kaylen
Summary of Contents for Abbyson Kaylen
- Page 1 Assembly Instructions & User’s Manual Kaylen 5pc High Dining Set with Storage, Ash Blonde -Table Item Number: 990292966 Model Number: TP-0002ASHB5PDI Abbyson Customer Experience Team 1-888-406-0838 (spare/replacement parts): or Email: samsclub@abbysonliving.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ...................... 3 Before Assembly ......................... 3 Care & Use ........................... 3 Package Contents ........................4 Product Information ........................4 Hardware ............................5 Tools ............................. 5 Step 1 ............................6 Step 2 ............................7 Step 3 ............................7 Step 4 ............................ -
Page 3: Important Safety Information
Important Safety Information Please read all instructions carefully before assembling this product. ● Where applicable, and for your safety, assembly by an adult is strongly recommended. ● Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware ● could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Table - Top Table - Leg (R) Table - Storage Base Side Stretcher Table - Leg (L) Center Stretcher Product Information Product Dimensions : 60” x 30” x 36”H (152.4cm x 76.2cm x 91.3cm) Product Weight Capacity –... -
Page 5: Hardware
Components Table - Top (1) Table - Storage Base (2) Table - Leg Left (3) Qty: 1 Qty: 1 Qty: 1 Table - Leg Right (4) Side Stretcher (5) Center Stretcher (6) Qty: 1 Qty: 1 Qty: 1 Hardware Bolt 5/16" x 1-1/2"L; Bolt 5/16"... -
Page 6: Step 1
Step 1 Stand the assembled unit upright on a flat surface, Put the storage Base (2) on the bottom of the top (1). Then using the Allen key (E) to tight fasten bolts, spring washer, flat washer (A) P a g e... -
Page 7: Step 2
Step 2 Attach the side stretcher (5) to the corresponding holes on the center stretcher (6). Then using the Allen key (E) to tight fasten bolt, spring washer, flat washer (A). Secure the wood plug (D) to the stretcher (5) avoid choking hazard. -
Page 8: Step 4
Step 4 Using the Allen key (E) to tight fasten bolts, spring washer, flat washer (A). Attach the side stretcher (5) to the leg (3,4). Step 4 Step 4 P a g e... -
Page 9: Step 5
Step 5 (5-1) Tighten all screws (c) by screw driver. (5-2) Adjust glide. Not included screwdriver Step 5-1 Step 5-2 P a g e... -
Page 10: Step 6
Step 6 Removable Shelf The shelf of the table storage base can be adjusted up or down with the three levels. If you want to remove, please lift the shelf a little bit (6.1) and pull out the shelf pin – work with all the shelf pins until you can align. Then decide which level (6.2) you want by putting all the shelf pins into the hole. -
Page 11: Warning
Warning Do not use this product unless all screws and bolts are securely tightened. Check that all screws and bolts are secure every three months or as needed. Dispose of packing material properly. Do not use plastic cover as head covering as it may cause suffocation. -
Page 12: Warranty Information
Warranty Information Warranty This product is covered by the Sam's Club Member Satisfaction Guarantee. Please visit samsclub.com for more information. This product’s components have a 1-year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number 1-888-406-0838 or email us at samsclub@abbysonliving.com NOTE: Please consider recycling all applicable packaging material.
