  • Page 1 Outdoor Mini Bullet Hardware Manual Z39, Z310, Z315 Ver. 2023/06/15...
  • Page 2: Table Of Contents

    Step 6: Access the Camera Live View ............18 Step 7: Adjust the Viewing Angle and Orientation ........18 Accessing the Camera Configure the IP Addresses ...............19 Using DHCP Server to Assign IP Addresses ........ 19 Using the Default Camera IP Address .......... 20 Access the Camera ...................22 www.acti.com...
  • Page 3: Precautions

    (latch or clamp) is in good condition and properly fastened. Ensure that the cable is not tense during mounting, with a proper margin reserved to avoid poor port contact or loosening caused by shock or shake. www.acti.com...
  • Page 4 If the grease or the stain still remains, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is clean. Do not use organic solvents (such as benzene and alcohol) to clean the transparent dome ⚫ cover. www.acti.com...
  • Page 5 The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner. Battery Directive-2013/56/EC Battery in the product complies with the European Battery Directive 2013/56/EC.For proper recycling,return the battery to your supplier or to a designated collection point. www.acti.com...
  • Page 6: Safety Instructions

    Never look at the transmit laser while the power is on. Never look directly at the fiber ports and the fiber cable ends when they are powered on. • Use of controls or adjustments to the performance or procedures other than those specified herein may result in hazardous laser emissions. www.acti.com...
  • Page 7: Introduction

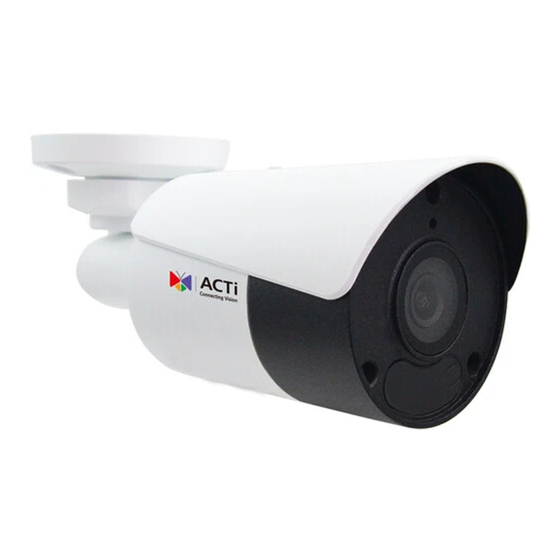

    This hardware manual contains the following models: 4MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens 8MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Z310 Fixed Lens 5MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Z315 Fixed Lens www.acti.com...
  • Page 8: Package Contents

    When the camera is taken out from the box, the lens cover is covered by a thin film. DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks which may happen during installation. Remove this film only after the camera is securely installed and all connections are complete. www.acti.com...
  • Page 9: Physical Description

    Ethernet Port Connects to a network using an Ethernet cable with RJ-45 connector. Built-in Receives audio input. Microphone Memory Card Slot Insert a memory card (not included) into the slot for local recording purposes. www.acti.com...
  • Page 10: Mounting Options

    NOTE: • For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). • The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com...
  • Page 11: Installation Procedures

    2. Determine whether the cable will go through a hole on the surface or be routed along the surface. Note also the direction to which the cable will be routed to attach the bundled drill template on the surface according to the direction of the cable. www.acti.com...
  • Page 12: Step 2: Route The Cables

    3. Push the cable through the hole on the surface. 4. Skip to Step 3: Mount the Camera on page 13. If the cable will be routed along the surface, route the cable through the gap on the side of the camera bracket. www.acti.com...
  • Page 13: Step 3: Mount The Camera

    1. Loosen the head screw to tilt the camera, as needed, before mounting the camera to the wall surface. 2. Mount the camera to the surface using the three (e) bundled screws. 3. Adjust the camera tilt angle, then fasten the head screw to fix the camera angle position. www.acti.com...
  • Page 14: Step 4: Connect And Manage The Cables

    Ethernet connection and use a waterproof tape to protect other cable connections. See Using a Power Adapter (Optional) on page 17 for more information. ACTi will not be responsible for camera damage caused by water entering the DISCLAIMER: cable connections. Using the Cable Gland This section describes how to waterproof the cable-out or “pigtail”...
  • Page 15 Hardware Manual 3. Insert the clamping nut into the Ethernet cable. 4. Insert the sealing insert through the Ethernet cable. 5. Insert the cable through the gland body. 6. Push the sealing insert into the gland body. www.acti.com...
  • Page 16 8. Attach the gland body to the camera connector. 9. Attach the clamping nut to the gland body to complete the cable solution. NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly. www.acti.com...
  • Page 17: Using A Power Adapter (Optional)

    PC and a power source. See Power-over-Ethernet (PoE) example connection diagram below. Network Ethernet Cable Ethernet Cable (Data) PoE Injector / Power Cable PoE Switch Ethernet Cable AC Power (Data + Power) Source Camera www.acti.com...
  • Page 18: Step 6: Access The Camera Live View

    Hardware Manual Step 6: Access the Camera Live View Accessing the Camera on page 19 for more information on how to access the Live View of the camera. Step 7: Adjust the Viewing Angle and Orientation www.acti.com...
  • Page 19: Accessing The Camera

    The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list.
  • Page 20: Using The Default Camera Ip Address

    PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
  • Page 21 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
  • Page 22: Access The Camera

    HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to setup the root Account and Password of the camera. Then use this newly setup Account and Password to login to the Web Configurator. www.acti.com...
  • Page 23 Copyright © 2022, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
