Jasic ARC PFC Series Operator's Manual

The power in inverter technology
I
Eff
Optional
JSB-01 Site Bag
jasic.co.uk
WCS25-3WEL
MMA Leads
JSS-01
Shoulder Strap
* 5 year warranty subject to product registration
Technical Data
Input Voltage
Ieff (A)
Input Power (kVA)
Current Range (A)
Duty Cycle @ 40°C
No-Load Voltage (V)
Efficiency (%)
Power Factor
Protection/Insulation Class
Dimensions (LxWxH mm)
Weight (Kg)
Key Features
• IGBT Inverter technology
• Wide input voltage 95-265V
• Anti-Stick, Arc-Force, Hot Start, Lift TIG
• 33Khz inverter frequency, high-efficiency
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• Easy arc starting, minimal spatter
• Auto-compensation for voltage fluctuation
• High quality tactile rubber finish to mouldings and handle
• Supplied in full colour packaging
• Can weld electrodes of up to 4mm
• Generator friendly**
Package Includes
Inverter power source, Cable plugs, Operating instructions,
5 year warranty*
**Generators should have regulated output

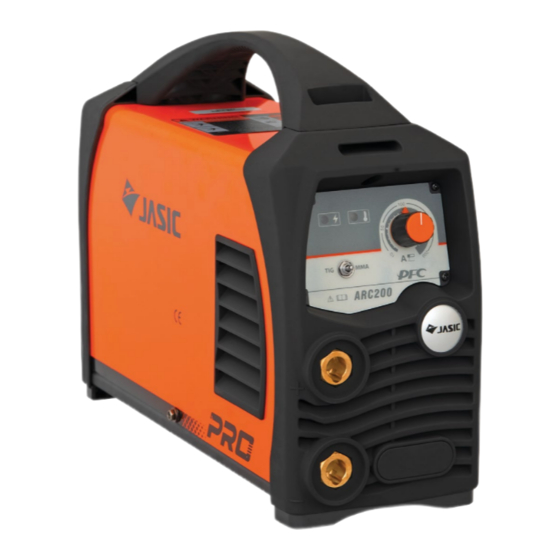

ARC 200 PFC Wide Voltage
95-265V - AC 50/60Hz
115V 230V
13.4 12.7
3.5 7.2
10 - 110 10 - 200
120A @ 25% 200A @ 25%
68
85
0.998
IP21S/F
365 x 135 x 280
6.4
JA-200PFC
Order Code:
*
