Nemalux XR8 Installation Manual

The XR-EN Installation Manual

APPLICATION

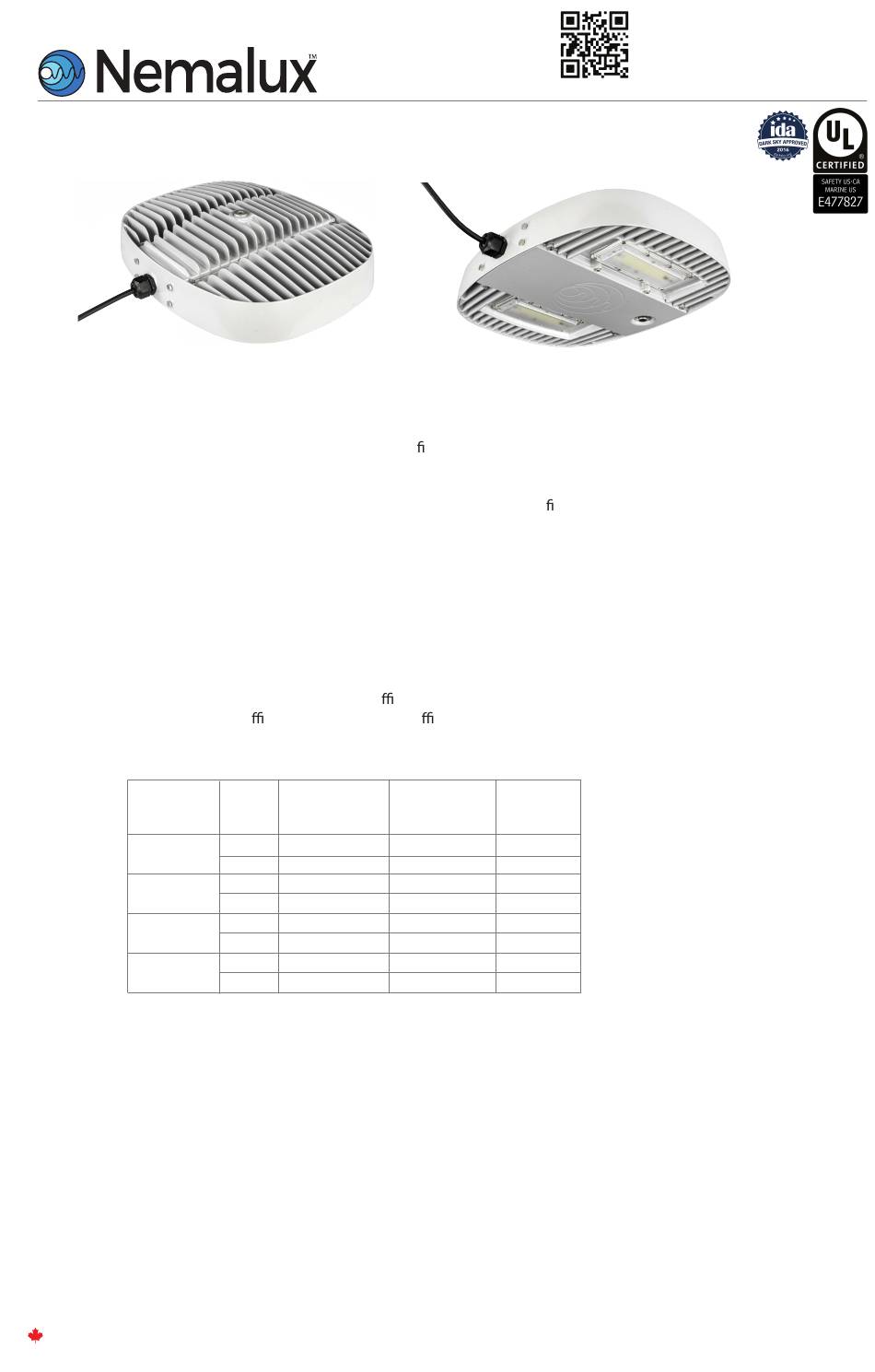

XR luminaires are designed for use in areas subject to extended or continuous submersion
requiring IP68. The XR luminaire is also certi ed for use on marine vessels inside, outside and in
other severely wet saltwater environments.
XR luminaires are suitable for use in the following areas as de ned by the National Electrical Code
(NEC) and the Canadian Electrical Code (CEC):
UL File Numbers:
Standards that apply to all models:
Housing:
Input Voltage:
Electrical Ratings:
LUMINANCE
XR8
XR10
XR15
XR20
Inrush Current:
MADE IN CANADA
E477827
UL 1598, UL 1598A and UL 8750; CSA C22.2 No. 250.0 and CSA C22.2 No. 250.13
Copper-free Cast Aluminium with Polycarbonate lens
Based on luminaire su x in table below:
Su x - AC: 120-277 VAC | Su x - HV: 347-480 VAC
INPUT
RATED WATTAGE
VOLTAGE [Watts]
AC 60
HV 64
AC 75
HV 77
AC 103
HV 107
AC 156
HV 160
XR (AC): 65A peak, 1.2ms duration
XR (HV): 65A peak, 1.2ms duration
