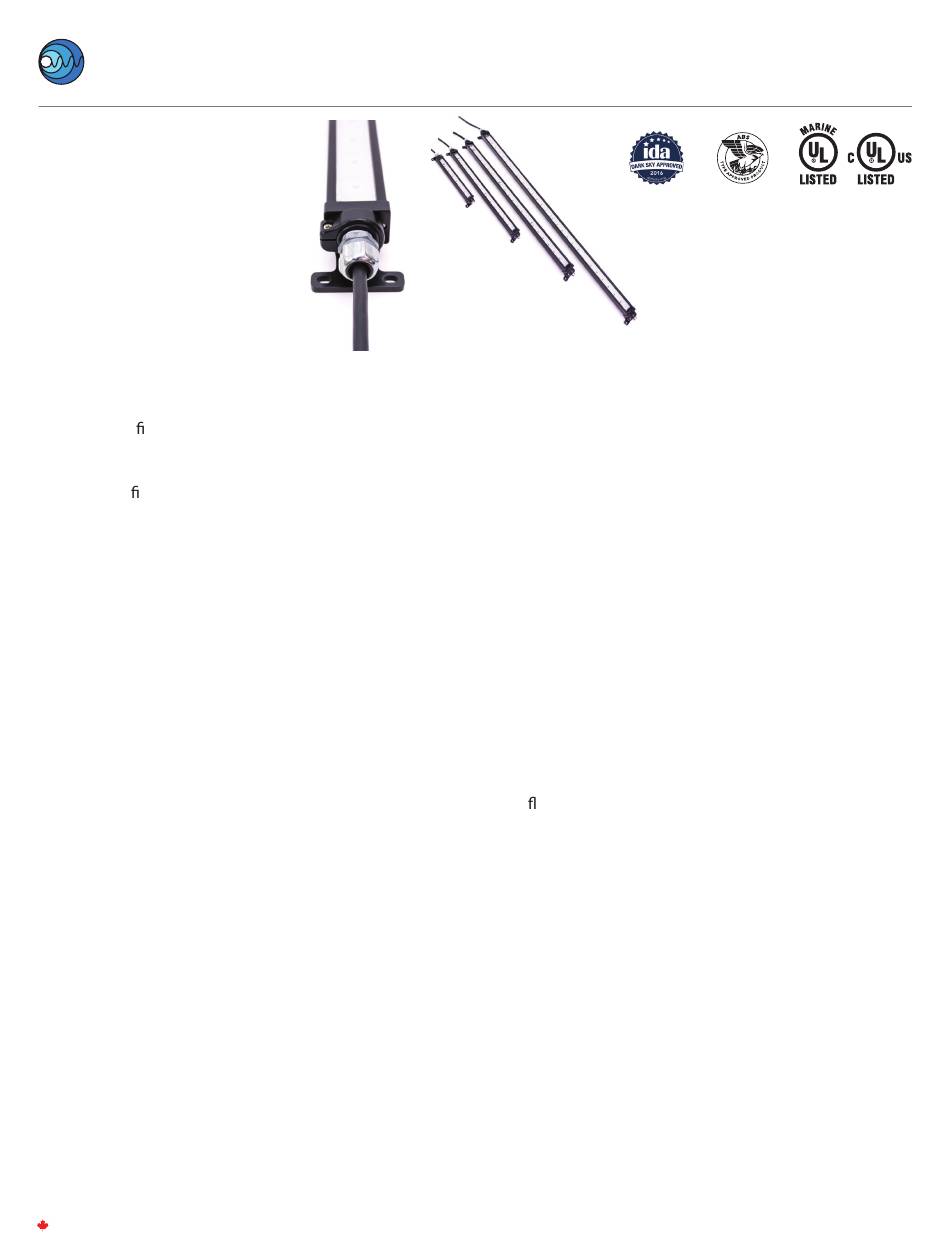

Nemalux GS Series Manual

Nemalux
I N D U S T R I A L
APPLICATION
The GS Series 12VDC, 24VDC and 24VDC High Output luminaires are designed for use indoors,
outdoors, wet location, and areas containing moisture, dirt, corrosion, vibration, and rough usage.
As de ned by the National Electrical Code (NEC) and the Canadian Electrical Code (CEC), they are
suitable for use in the following areas:
Certi ed to:
Housing:
Mounting:
Input Voltage:
Electrical Ratings:
Connections:
Temperature Range:
Ingress Protection:
MADE IN CANADA
TM
UL 1598A, UL 2108;
CSA C22.2 No. 250.0
Copper-free Aluminium with Polycarbonate lens
(A) Adjustable:
(B) Carriage Bolt:
12: 11-16VDC | 24: 22-28VDC | 24H: 22-28VDC
12 Models (@ 12VDC):
24 Models (@ 12VDC):
24H Models (@ 12VDC): GS-1: 0.66A | GS-2: 1.32A | GS-3: 1.98A | GS-4: 2.65A
3ft extra hard usage cord with ying leads
Black: Negative (-) | White: Positive (+) | Green: Ground
DC Class 2 Wiring Only
-40°C to +60°C
IP 66/67 | Suitable for Wet Locations. Marine Outside type (Salt Water).
(Luminaire enclosure only)
www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190
Four 1/4"-20 x 4" Screws or bolts (Not Provided)
Two 1/4"-20 x 1" Bolts (Integral to luminaire)
Flat washers, lock washers & 1/4"-20 nuts (Provided)
GS-1: 0.66A | GS-2: 1.30A | GS-3: 1.98A | GS-4: 2.64A
GS-1: 0.33A | GS-2: 0.66A | GS-3: 0.99A | GS-4: 1.32A
GS-DC-GEN
rev. A-12
E480811
1-3
