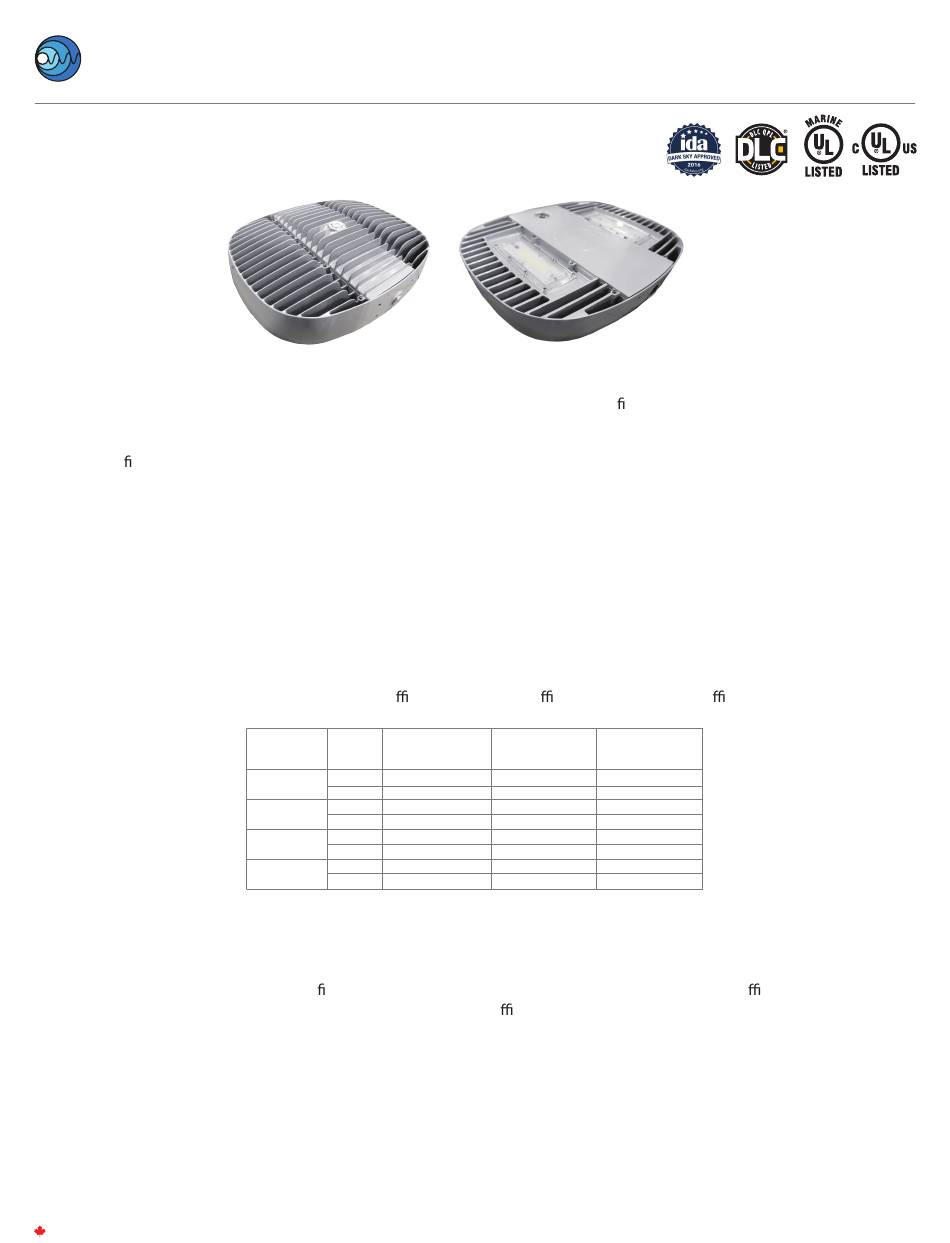

Nemalux XR-HAZ Installation Manual

Nemalux
I N D U S T R I A L
SURFACE/CEILING
MOUNTING INSTALLATION
APPLICATION
XR luminaires are designed for use indoors, outdoors, wet locations, areas containing moisture, dirt,
corrosion, vibration and rough usage. The XR luminaire has been certi ed for use on marine vessels inside,
outside, and in other severely wet saltwater environments.
Certi ed to:
Housing:
Input Voltage:
Electrical Ratings:
Connections:
Ambient
Temperature Range:
Ingress Protection:
MADE IN CANADA
TM
UL 844, UL 1598, UL 1598A, and UL 8750;
CSA C22.2 No. 137, CSA C22.2 No. 250.0 and CSA C22.2 No. 250.13
Hazardous Location Certication:
Class I, Division 2, Groups ABCD;
Class II, Division 2, Groups FG;
Class III;
Class I, Zone 2, Group IIC;
Zone 22
Copper-free Cast Aluminium with Polycarbonate lens
Based on luminaire su x in table below: Su x - AC: 120-277 VAC | Su x - HV: 347-480 VAC
INPUT RATED WATTAGE
LUMINANCE
VOLTAGE
AC Flood: 47 Optic: 60
XR8
HV Flood: 49 Optic: 64
AC Flood: 55 Optic: 75
XR10
HV Flood: 58 Optic: 77
AC Flood: 84 Optic: 103
XR15
HV Flood: 91 Optic: 107
AC Flood: 141 Optic: 156
XR20
HV Flood: 148 Optic: 160
3 x 3/4" NPT Conduit | Black: Line | White: Neutral | Green: Ground
Optional: Violet: 0-10V Dimming (+) | Grey: 0-10V Dimming (-)
For connections use wire rated to a minimum of 90°C. Class 1 Wiring only.
All supply eld wiring must be rated 300V minimum for luminaires with su x AC,
600V minimum for luminaires with su x HV.
Class I Division 2 | Class I Zone 2
XR8: -50°C to +75°C
XR10: -50°C to +74°C
XR15: -50°C to +74°C
XR20: -50°C to +67°C
IP66 | Suitable For Wet Locations. Marine Outside Type (Salt Water)
www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190
RATED VOLTAGE
[Watts] [Volts]
120-277
347-480
120-277
347-480
120-277
347-480
120-277
347-480
Class II Division 2 | Zone 22
T3C All models -50°C to +50°C T3C
T3C
T3C
T3
*PENDING* *PENDING* E477829
FREQUENCY
[Hz]
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
XR-HAZ
rev. A-13
E477829
1-14
