Nemalux
I N D U S T R I A L
INSTALLATION INSTRUCTIONS
APPLICATION

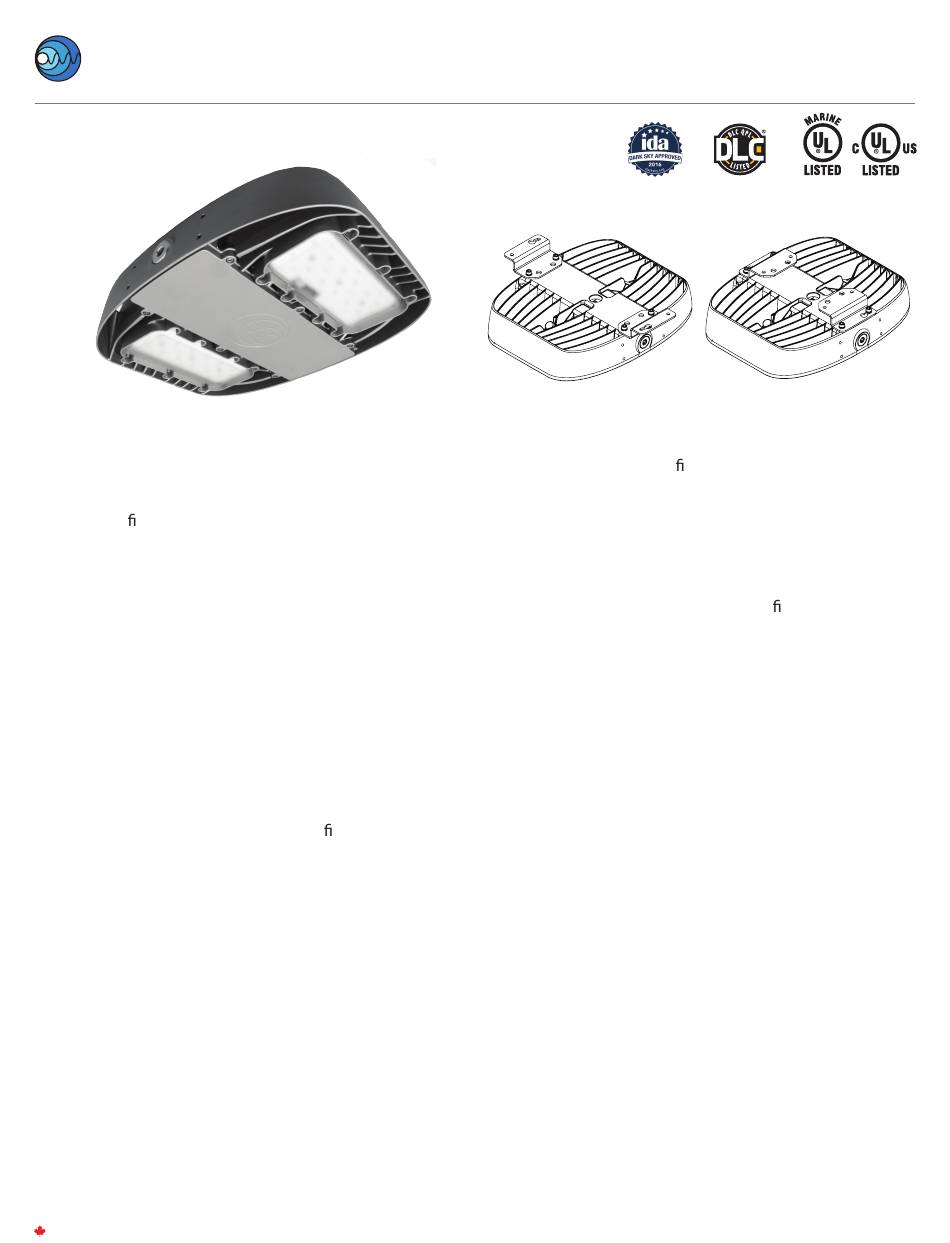

MR3 & MR6 Luminaires are suitable for use in the following areas as de ned by the National
Electrical Code (NEC) and the Canadian Electrical Code (CEC):
Certi ed to:
MR3 & MR6 luminaires are designed for use indoors, outdoors, wet locations, and areas containing
moisture, dirt, corrosion, vibration, and rough usage. The MR luminaire is also certi ed for use as a
marine, outside type (saltwater) non-recessed luminaire.
Housing:
Voltage:
Rated Current:
Connections:
Temperature Range:
Ingress Protection:
MADE IN CANADA
TM
UL 1598, UL 1598A and UL 8750
CSA C22.2 NO. 250.0 and CSA C22.2 NO 250.13;
Copper-free Cast Aluminium with Polycarbonate lens
AC: 120-277 VAC | HV: 347: 347 VAC 50/60Hz
MR3: 0.25A@120 VAC | 0.10A@347 VAC
MR6: 0.50A@120 VAC | 0.20A@347 VAC
3/4" NPT Conduit | Black: Line | White: Neutral | Green: Ground
All eld wiring supply conductors shall be rated 90°C minimum and rated for
supply voltage (300V AC Models, 600V HV models). Class 1 Wiring Only.
-40° C to +55° C
IP66 and IP67 rated for surface/suspension mount, yoke mount, pendant hook,
and conduit connected installations only. | Suitable For Wet Locations. Marine
Outside Type (Salt Water).
www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190
MR-GEN
rev. A-15
E477827
E477827
1-4

Advertisement

loading
Need help?

Need help?

Do you have a question about the MR3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nemalux MR3

  • Page 1 E477827 E477827 APPLICATION MR3 & MR6 Luminaires are suitable for use in the following areas as de ned by the National Electrical Code (NEC) and the Canadian Electrical Code (CEC): Certi ed to: UL 1598, UL 1598A and UL 8750 CSA C22.2 NO.
  • Page 2: Installation Instructions

    4x 1/4-20 OR M6 Screws or Bolts. - For suspension mounting con guration, connect 4x anchors to points shown SUSPENSION MOUNTING CONFIGURATION 10mm SUSPENSION MOUNTING CONFIGURATION SURFACE MOUNTING CONFIGURATION www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 3 All eld wiring supply conductors shall be rated 90°C minimum and rated for supply voltage (300V AC Models, 600V HV models). www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 4 STEP 8: Close Power Supply Cavity Lid. Re-install the power supply lid using six (6) Captive M4 screws. Tighten M4 Captive screws to 2 Nm (17in-lbs) www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 5: Installation Steps

    Insert and tension M6 set screw to pole to lock rotation. Torque to 5 N-m or 44 in-lbs. STEP 6: Resume installation instructions provided with xture. (STEP 4) Set Screw www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 6 Install Back Cover Plate with 4x M4 Flat head screws and adhesive backed gasket. Apply gasket with adhesive side applied to mount main body. Torque to 2 N-m (17 in-lbs) www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 7 To aid in assembly and protection against ingress use of a petrolatum or soap thickened mineral oil based thread lubricant/sealant is necessary. STEP 8: Resume installation instructions provided with xture. (STEP 4) www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 8 Adjust and Aim xture to desired position. Torque hardware nuts to 9 N-m (80 in-lbs). 60 deg STEP 6: 51mm Resume installation instructions provided with xture. (STEP 4) www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 9 The MR Head must not face upwards LIGHT BEAM by any degree beyond the vertical Installation Instructions provided with Luminaire) position for Class II, Division 2, Zone 22, and Class III hazardous locations. HORIZON www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 10 Install remaining loop of secondary safety chain or steel cable to suitable mounting location and fasten securely. Secondary safety Step 3 hardware must be rated for 50lbs. STEP 4. Resume installation instructions provided with Fixture. (STEP 4) www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 11 STEP 5. Install remaining loop of secondary safety chain or steel cable to suitable mounting location and fasten securely. STEP 6. Resume installation instructions provided with Fixture. (STEP 4) www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
  • Page 12 Supporting beam or structure must form a closed loop to prevent the secondary safety chain from slipping o or becoming unhooked. www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190 MADE IN CANADA...
