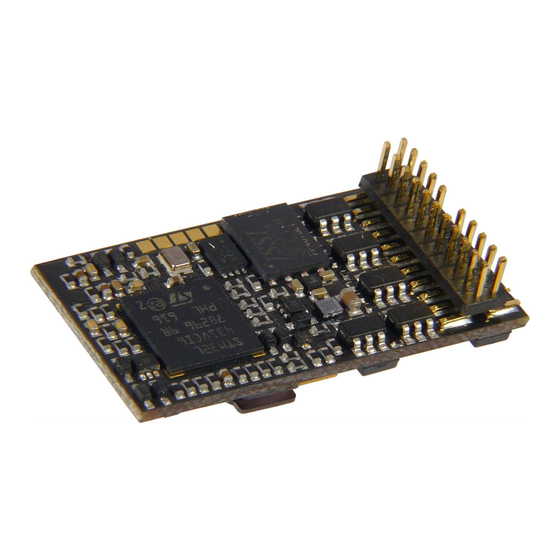

ZIMO MS450 Instruction Manual

Ms - sound decoders & mn - non-sound decoder
Hide thumbs Also See for MS450:

Advertisement

Table of Contents

INSTRUCTION MANUAL
MS450, -R, MS450P22, -P16
MS440C, MS440D
MS480, -R, -F, MS480P16
MS490, -R, -F, MS490N, -L
MS500, -R, -F, MS500N
MS560
MS580N18, MS580N18G
MS590N18
MS950 and LOKPL950
MS990L, MS990K and LOKPL990
MN330, -R, MN330P22
MN340C, MN340D
MN300, -R, -F, MN300P16
MN170, -R, -F, MN170N
MN180N18
MS
SOUND DECODERS
–
MN – Non-Sound Decoder
&

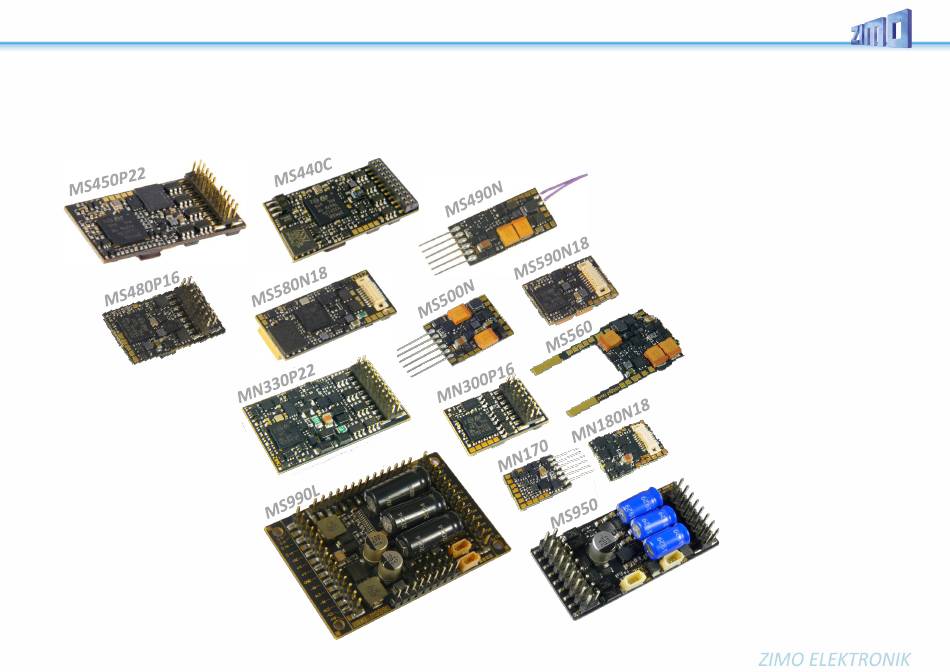

Small decoders shown enlarged (1.5:1)
Large scale decoder in original size
for SW version 4.229
including a pre-description of the features of version 5.00
First version for first delivery,
SW version 1.00
SW version 2.00
SW version 2.04 with lookout to later versions
SW version 4 with lookout to later versions
Miniature and NEXT types added, revisions --- 2020 03 05
SW version 4.10 with lookout to 5
Large scale types added, updates --- 2020 06 29
SW version 4.50
SW version 4.75
SW version 4.90
SW version 4.95
SW version 4.215
SW version 4.225
MN Types and Sound Equalizing added --- 2023 07 11
EDITIONS:
--- 2018 04 17
2018 07 20
2018 08 23
--- 2019 01 08
2019 01 25
--- 2019 02 20
2019 05 30
2019 08 08
--- 2019 09 11
2019 11 22
2019 12 09
--- german ed.
--- german ed.
--- german ed.
german ed.
2021 05 12
--- 2021 05 21
--- 2021 06 15
2021 06 29
--- 2022 05 05
2022 05 27
2022 08 01
--- 2022 11 10
2022 12 05
2022 12 15
2023 02 01
2023 05 02
