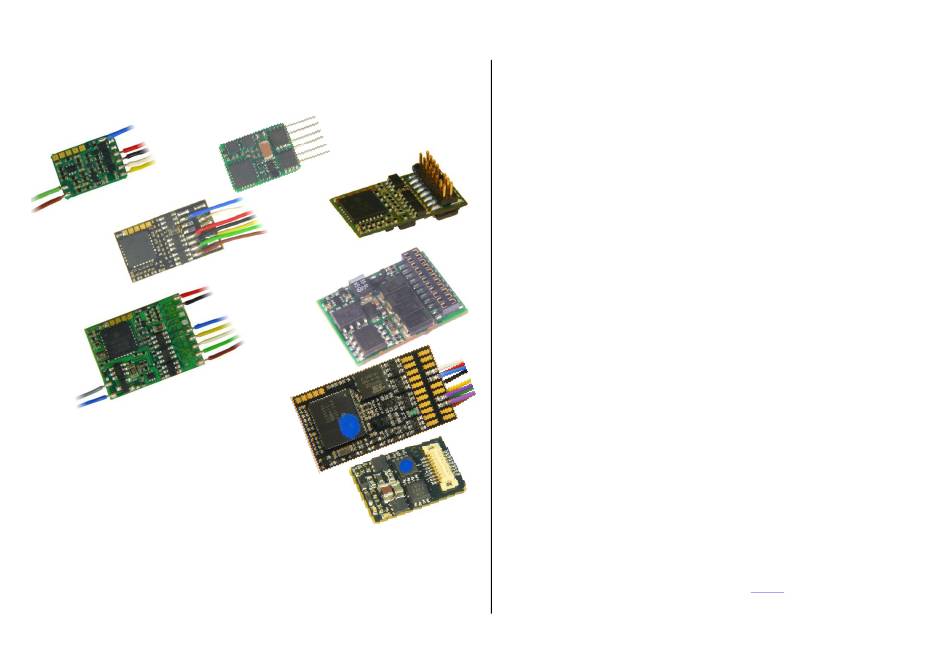

Function-Decoders MX681, MX685, MX686, MX687, MX688
INSTRUCTION MANUAL
MX681
MX685
MX686
MINIATURE - FUNCTION - DECODER

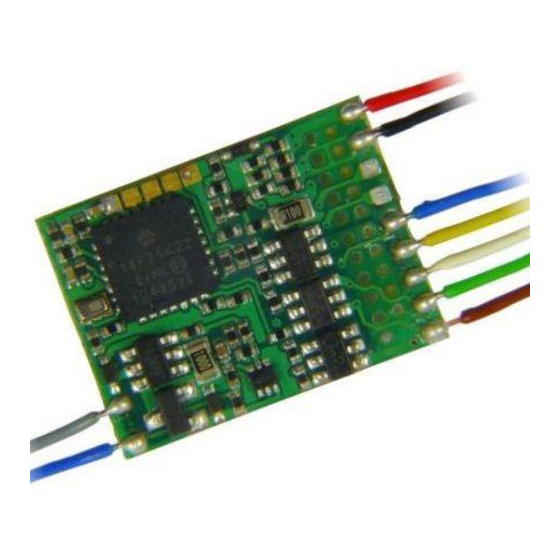

MX681, MX681R, MX681N
FUNCTION - DECODER
MX685, MX685R, MX685P16
FUNCTION - DECODER with energy storage circuitry
MX686, MX686D
FUNCTION - DECODER with energy storage circuitry and low-voltage output
MX687V, MX687W, MX687WD
FUNCTION - DECODER with NEXT-18 interface
MX688N18
MX681N
MX685P16
2
MX686D
(Design since 2013)
MX689
MX688N18
1
Overview................................................................................................................. 2
2
Technical Information ............................................................................................... 3
3
Adressing and Programming .................................................................................... 5
Programming in "Service mode" (on programming track) ......................................................... 5
3.1
3.2
3.3
Decoder-ID, Load -Code, Decoder-Type and SW-Version ....................................................... 6
3.4
The (first) vehicle address ......................................................................................................... 6
3.5
The second address in a function decoder ............................................................................... 7
3.6
Analog operation ........................................................................................................................ 7
"Virtual" motor control and momentum ...................................................................................... 8
3.7
3.8
The NMRA-DCC function mapping .........................................................................................10
"Unilateral Light Suppression" .................................................................................................11
3.9
The "Swiss Mapping" (SW version 32 and higher) ...............................................................11
3.10
3.11
Dimming, Low beam and Direction Bits...................................................................................12
3.12
The Flasher Effect....................................................................................................................13
3.13
F1- Pulse Chains (only for old LGB products) .........................................................................13
Special Effects for Function Outputs (US and other lighting effects...) ..................................14
3.14
3.15
Configuration of Electric Uncouplers .......................................................................................15
3.16
SUSI-Interface and Logic-Level Output ...................................................................................15
3.17
Servo Configuration .................................................................................................................15
4
5
Operating with Märklin MOTOROLA Systems ........................................................ 17
6
ZIMO Decoder - Software Update .......................................................................... 17
NOTE:
ZIMO decoders contain an EEPROM which stores software that determines its characteristics and functions. The software version can be read out form CV #7 and
#65. The current version may not yet be capable of all the functions mentioned in this manual. As with other computer programs, it is also not possible for the
manufacturer to thoroughly test this software with all the numerous possible applications. Installing new software versions later can add new functions or correct
recognized errors. SW updates can be done by the end user for all ZIMO decoders since production date October 2004, see chapter "Software Update"! Software
updates are available at no charge if performed by the end user (except for the purchase of a programming module); Updates and/or upgrades performed by ZIMO
are not considered a warranty repair and are at the expense of the customer. The warranty covers hardware damage exclusively, provided such damage is not
caused by the user or other equipment connected to the decoder. For update versions, see www.zimo.at.
Page 1
EDITION
First edition
--- 2011 08 15
2012 08 15
2015 01 25
2015 02 05
MX688N18 supplement
--- 2015 11 16
Swiss Mapping
--- 2016 06 23
2018 05 25
2018 07 11
Advertisement
Table of Contents
Related Manuals for ZIMO MX681
Summary of Contents for ZIMO MX681
-
Page 1: Table Of Contents
MX688N18 updates are available at no charge if performed by the end user (except for the purchase of a programming module); Updates and/or upgrades performed by ZIMO are not considered a warranty repair and are at the expense of the customer. The warranty covers hardware damage exclusively, provided such damage is not... -
Page 2: Overview
MX686 7 wires (120mm long) for power pick-up, 4 function outputs. Solder pads are and the miniature function decoder MX681 on the miniature decoder MX621. The dimensions and available for further outputs as well as for servo or SUSI. most of their features are therefore identical to the decoder they are based on. -
Page 3: Technical Information
Software - Update: Technical Information ZIMO decoders can be updated by the user, provided that one of the following update devices is at hand: ZIMO decoder update-module MXULF (since 2011), system-cab MX31ZL or command sta- tion MX10. The updating process is carried out via a USB stick (MXULF, MX31ZL / MX10) or a PC with Windows operating system and the program ZIMO Firmware Flasher (within the ZIMO Sound Allowable track voltage **) ................... - Page 4 Page 4 Function-Decoders MX681, MX685, MX686, MX687, MX688...
-
Page 5: Adressing And Programming
However, certain DCC systems (among them ZIMO with the system generation MX10/MX32 and later) will allow addresses to be modified on the - “Service Mode” (on the programming track) for assigning a new address or reading and writing main track with the help of bidirectional communication. -
Page 6: Decoder-Id, Load -Code, Decoder-Type And Sw-Version
CV #7 and #65 (i.e.: 28.15). Version Number - the DCC system (common practice with ZIMO systems, without changing any CVs) or - by the following CVs, which can be programmed manually or managed by the DCC system (often the case with American systems). -
Page 7: The Second Address In A Function Decoder
…. by consist address Consist addr active for 0 - 63 Bit 2 = 0: F9 controlled by individual address All ZIMO decoders are capable of operating on conventional layouts operated with DC power packs, in- FL-F9-F27 …. by consist address = 1: cluding PWM throttles, in analog DC as well as in analog AC (Märklin including the high voltage pulse... -
Page 8: Virtual" Motor Control And Momentum
Page 8 Function-Decoders MX681, MX685, MX686, MX687, MX688 Denomination Range Default Description Denomination Range Default Description Internal speed step (1 … 255) applied as Select the functions that should be ON during analog operation. Vstart lowest external speed step (= speed step 1) - Page 9 Stopping Bit 1 = 1: Stops are initiated if voltage in left rail The MAN function (or MAN key on ZIMO cabs) was Configuration is higher than in right rail (in direction of 0, 1, 2, 3...
-
Page 10: The Nmra-Dcc Function Mapping
Page 10 Function-Decoders MX681, MX685, MX686, MX687, MX688 Function mapping for the Second address The NMRA-DCC function mapping is defined (in the same way as for the first address) with CVs #69 to #82 CVs #33 to #46 are reserved for the function mapping of the first address. It links a specific function The commands of the first and the second address are read separately, and stored according to the key to a specific function output. -
Page 11: Unilateral Light Suppression
ON/OFF together at the at least be 6). ZIMO decoders indeed offer between 6 and 10 function outputs (with the exception of a proper end of the locomotive with F0 or F1 (depending on which end the loco is coupled to the train). -
Page 12: Dimming, Low Beam And Direction Bits
Page 12 Function-Decoders MX681, MX685, MX686, MX687, MX688 Bits 0 - 3: 3.11 Dimming, Low beam and Direction Bits Bits 0 - 3: Function output to be switched ON in forward direction 1 - 12 provided that both the “F” and “M” keys are ON (if Bit 7... -
Page 13: The Flasher Effect
Function-Decoders MX681, MX685, MX686, MX687, MX688 Page 13 Bit 3 - function output FO10, Denomination Range Default Description Bit 4 - function output FO11, FO3, FO4 as direction Bit 5 - function output FO12. Only active as uncoupler if “uncoupler” function is se- bit mapping lected (value 48) in CV #125 …132, 159 or 160:... -
Page 14: F1- Pulse Chains (Only For Old Lgb Products)
Page 14 Function-Decoders MX681, MX685, MX686, MX687, MX688 3.13 F1- Pulse Chains (Only for old LGB products) 3.14 Special Effects for Function Outputs (US and other lighting effects, Smoke generator, Uncoupler…) …. Bit 3 = 0: 12-Function mode Special effects can be assigned to a total of 10 function outputs with = 1: 8-Function mode CV’s #125, #126, #127 …... -
Page 15: Configuration Of Electric Uncouplers
= 1: Normal function outputs instead of SUSI Note to ditch lights: Ditch lights are only active when headlights and function F2 (#3 on Zimo cab) are on, which is prototypical for North American railroads. The ditch lights will only be working if the applicable bits in CV #33 and 34 are on (the definition in CV #125 - 128 in itself is not enough but a necessary addition). -
Page 16: Feedback - "Bidirectional Communication
ZIMO DCC decoders since 1997 and as Bit 7 = 0: Servo2 for first address far back as 1990 with ZIMO’s own data format (which is no longer in use today). It can only be used = 1: Servo2 for secondary address with ZIMO DCC systems (MX1…MX10, MX31ZL, MX32ZL…) and together with ZIMO track section... -
Page 17: Operating With Märklin Motorola Systems
RailCom will be further developed over the coming years and add new applications, which of course require new software updates in decoders and other equipment. All ZIMO decoders as of 2009 are able to send their own loco address from an insulated track sections (with a so called broadcast method, very fast, although only for one loco in that section), send CV content on demand along with some decoder data such as actual speed in km/h, load and decoder temperature.
