MA010 (cn_en)
安装说明
使用 LAMFIX (72.1000) 进行 MULTILAM LA-CU 触指
的圆形和平面安装
目录
安全须知2
触指圆形面安装3
工具准备3
插头组装3
插座组装4
(安装面) 最终控制4
触指平面组装5
LAMFIX 是一种用于 LA-CU multilams的紧固带。
MA010 (cn_en)
Assembly instructions
Assembly of MULTILAM LA-CU using LAMFIX
(72.1000) for round and flat contacts

Content

Safety Instructions ����������������������������������������������������������������������2
Assembly For Round Contacts ����������������������������������������������������3
Tools Required ����������������������������������������������������������������������������3
Assembly On Plug ����������������������������������������������������������������������3
Assembly On Socket ������������������������������������������������������������������4
End Control ��������������������������������������������������������������������������������4
Assembly For Flat Contacts ���������������������������������������������������������5

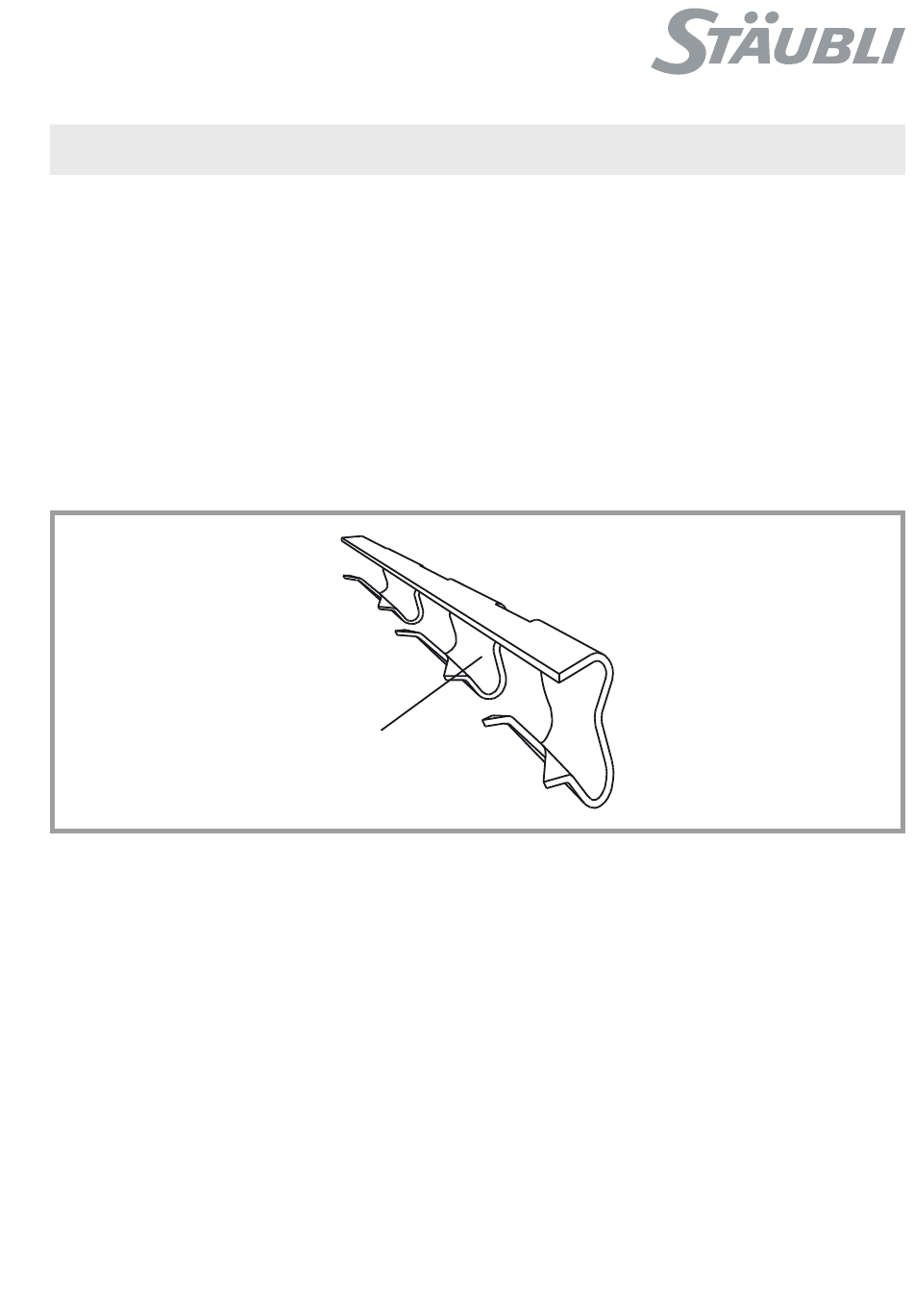

LAMFIX is a securing strip for LA-CU multilams�
夹子
Clip
1 / 8
