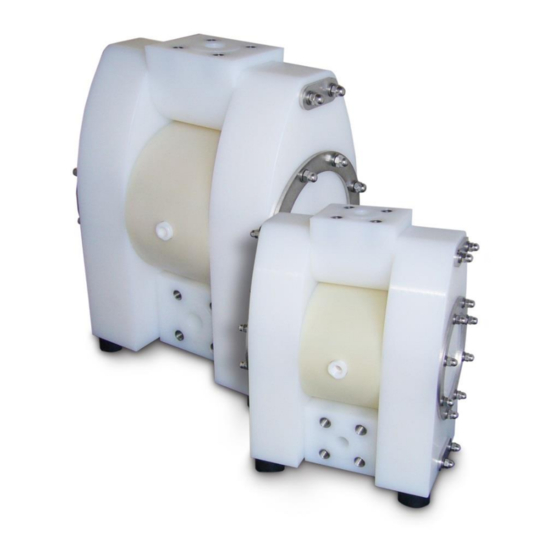

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS Heavy-Duty Diaphragm Pumps made of Plastic AHS Series AHS 15 AHS 25 Original Instruction Read carefully before pump installation...
-
Page 2: Table Of Contents
AHS Series · Page 2 CONTENTS Page Introduction 1.1. General description of the machine, appropriate use and residual dangers 1.2. Storage and long-term usage 1.3. Codesystem Technical data 2.1. Performance charts 2.2. Dimensions Installing the pump 3.1. Installation into the piping system 3.1.1. -
Page 3: Introduction
In the second figure, liquid is drawn in by the left-hand diaphragm and displaced by the right-hand diaphragm. The appropriate use of an Almatec air-operated double diaphragm pump of the AHS series refers to the liquid (or sludge) transport taking into account the operation parameter mentioned in this manual and in compliance of the given terms for commissioning, operation, assembly, disassembly and maintenance. -
Page 4: Codesystem
EU machinery directive, the harmonized standards, European standards and the respective national standards. Hence the operator has to verify whether the ALMATEC pump manufactured and delivered properly according to the customer’s order meets the mentioned requirements. -
Page 5: Technical Data
The data refer to water (20°C/68°F), under using of a compressor Atlas Copco VSG30 and calibrated measuring equipment. The specified performance data are warranted by ALMATEC in accordance with DIN EN ISO 9906. The blue lines state the air consumption in Nm³/min. -
Page 6: Dimensions
AHS Series · Page 6 2.2. Dimensions... -
Page 7: Installing The Pump
AHS Series · Page 7 AHS 15 266 152 336 316 20 37 DN15/PN16 190 230 112 R 1/4" 263 53 150 177 5 20 40 M8 AHS 25 335 200 412 392 20 44 DN25/PN16 250 290 160 R 1/4"... -
Page 8: Connecting The Air Supply
When installing the pump into boards or cabinets, it has to be ensured that cold air does not get caught behind the muffler. ALMATEC heavy duty pumps do not require any lubrication. It has to be secured, that no oil can enter the pump. -
Page 9: Start-Up And Operation Of The Pump
Moreover the feeding of filter presses is a possible application field. The ideal combinative effect of ALMATEC AHS pumps and filter presses is illustrated very well by the automatic adaptation to pressure and flow rate. When beginning to fill the empty press, the low discharge pressure results in a high flow velocity for fast filling. - Page 10 • Especially when deliver critical liquids, wear parts, like diaphragms, should be replaced within a preventive maintenance. • The use of non-original ALMATEC spare parts and structural changes lead to the lapse of the warranty immediately. When operating such a pump, damages of properties and/or persons cannot be excluded.
-
Page 11: Additional Temperature Hints
3.5. Hints for using the AHS pump with external pressure booster for filter press feeding Pumps of the AHS series are approved for a maximum drive pressure of 15 bar (218 psig). If an external pressure booster is used for achieving this high pressure for filter press feeding please consider the following: •... -
Page 12: Providing Spare Parts
(if compatible with rinsing agent) to facilitate the separation after a certain waiting period. The general design of the ALMATEC AHS pumps is simple. Every pump comes along with a mounting tool for the air-valve system [25]. Take out the muffler [23] installed onto the center block [18] before dismantling the pump to protect it against damages during the disassembly. -
Page 13: Suction And Discharge Valves
AHS Series · Page 13 4.2. Suction and discharge valves Lay down the pump housing [1] on its outer surface. Loosen lock pin discharge valve [10] and remove. Turn the discharge valve [9] along its longitudinal axis by 180° using a suitable round bar (Image 1). After ca. 70° change the bar to the other side of the discharge valve [9] (Image 2) and keep on turning the remaining 110°. -
Page 14: Air Filter
AHS Series · Page 14 4.4.3. Air filter To take out the air filter [22] the air inlet [21] has to be screwed off first, afterwards the filter [22] can be unscrewed easily with a big screw driver. 5. ASSEMBLY OF THE ELEMENTS OF CONSTRUCTION 5.1. -
Page 15: Housing Bolts With Spring Washers
6.2. Correct function and sealing The fully assembled ALMATEC AHS pump has to be equipped with an air supply as well as temporary suction and discharge lines both leading to a water containment. The dry suction capacity can be checked with a vacuum gauge by closing the suction line carefully complete. -
Page 16: Troubleshooting
AHS Series · Page 16 7. TROUBLESHOOTING Malfunction Possible Reason Solutions/Remarks pump does not operate air supply line blocked/closed open air supply muffler blocked clean/replace muffler working chambers blocked remove blockage air control system defective replace air valve system discharge line blocked/closed... - Page 17 AHS Series · Page 17 Malfunction Possible Reason Solutions/Remarks pump stops itself icing of the air control system improve air processing: dryer/heater etc. air pressure to low increase air pressure air pressure drop ensure sufficient air supply discharge line blocked...
- Page 18 AHS Series · Page 18 Malfunction Possible Reason Solutions/Remarks muffler grey driving air too humid, icing improve quality of driving air muffler black soiled, oily air improve quality of driving air, install sensitive filter in suction line pump is connected to air but does...
-
Page 19: Spare Part List
AHS Series · Page 19 8. SPARE PART LIST Pump sizes AHS 15 AHS 25 Item Pc. Description Material Part number Part number Pump housing 3 15 510 52 3 25 510 52 Tension disc 1.4301 3 15 508 22... -
Page 20: Exploded View
AHS Series · Page 20 9. EXPLODED VIEW... -
Page 21: Optional Equipment
AHS Series · Page 21 10. OPTIONAL EQUIPMENTS ALMATEC AHS pumps are available with various optional equipments. Whether the pump is equipped with options can be derived from the pump code. 10.1. External air pressure booster (optional equipment code BO) For amplifying the drive air pressure, the pump can be equipped with an air pressure booster. -
Page 22: Diaphragm Monitoring
10.2. Diaphragm monitoring (optional equipment code D) Although ALMATEC diaphragms with integrated metal core are designed for an optimum service life, the diaphragm remains a wear part. If it breaks, liquid can leak into the center housing and possibly emerge through the muffler. This can be prevented simply and effectively with the ALMATEC diaphragm monitoring. -
Page 23: Spare Part List Optional Equipment
AHS Series · Page 23 10.4. Spare part list optional equipments Pump size AHS 15 AHS 25 Code Item Description Material Part number Part number Booster, 230 l/min, 1/4" diverse B 10 230 99 B 10 230 99 Connection kit for booster and pump... - Page 24 AHS Series · Page 24 Subject to change without notice, 2023/01 PSG Germany GmbH Hochstraße 150-152 · 47228 Duisburg · Germany Telephone +49 (0) 20 65 / 89 2 05 - 0 · Telefax +49 (0) 20 65 / 89 2 05 - 40...
