Aqua Joe JI-TLS18 - Turbo Oscillating Lawn Sprinkler Manual

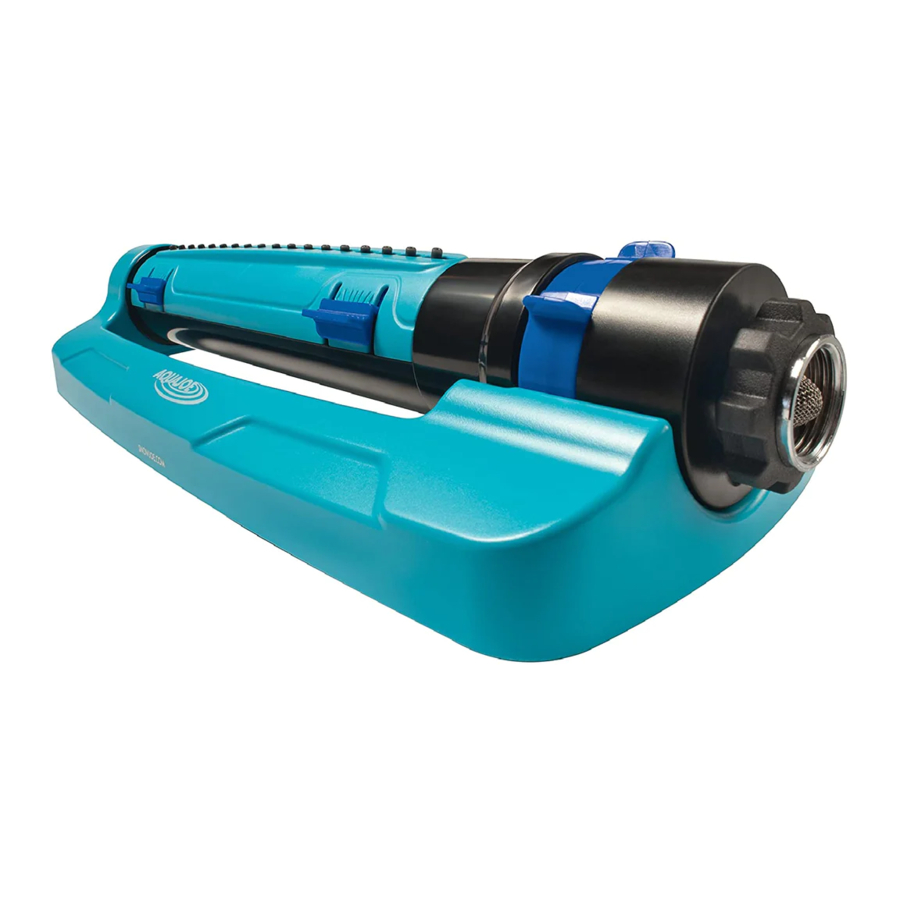

Know Your Device

Know Your Device

  1. Base
  2. Spray nozzles (18)
  3. Oscillator tube
  4. Hose-end
  5. Range sliding tabs
  6. Width sliding tabs 1
  7. Width sliding tabs 2
  8. Inlet filter
  9. Cleaning pin

Technical Data

Rubber nozzle heads 18
Coverage Max 4500 sq ft (418 m2 )
Spray Distance Max 85 ft (2.16 m)
Max Pressure 120 PSI
Motor Turbo drive
Adjustable range control Yes
Adjustable width control Yes
Net Weight 1.34 lbs (0.6 kg)

Operation

Use range sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1).
Refer to (Fig. 2) to see the different options.
Operation - Using the range sliding tabs

Use width sliding tabs to select desired position and take advantage of the sprinkler's adjustable width control (Fig. 3, 4).
Refer to (Fig. 5) to see the different options.
Operation - Using the width sliding tabs

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance and Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

  1. Remove the inlet filter from the hose-end of the oscillator and run under water.
    Maintenance and Care - Step 1
  2. Remove the cleaning pin from the opposite end of the oscillator.
    Maintenance and Care - Step 2
  3. To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place
    Maintenance and Care - Step 3 - Flushing
  4. Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler.
    Maintenance and Care - Step 4 - Clearing the clogs

Storage


Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler.

Service and Support

If your Aqua Joe SJI-TLS18 oscillating sprinkler requires service or maintenance, please call Snow Joe + Sun Joe customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model and Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.
Recording the Model and Serial Numbers

© 2020 by Snow Joe, LLC
All rights reserved. Original instructions.
