Aqua Joe AJ-MSSBM - Turbo Drive 360º Sprinkler Manual

Know Your Device

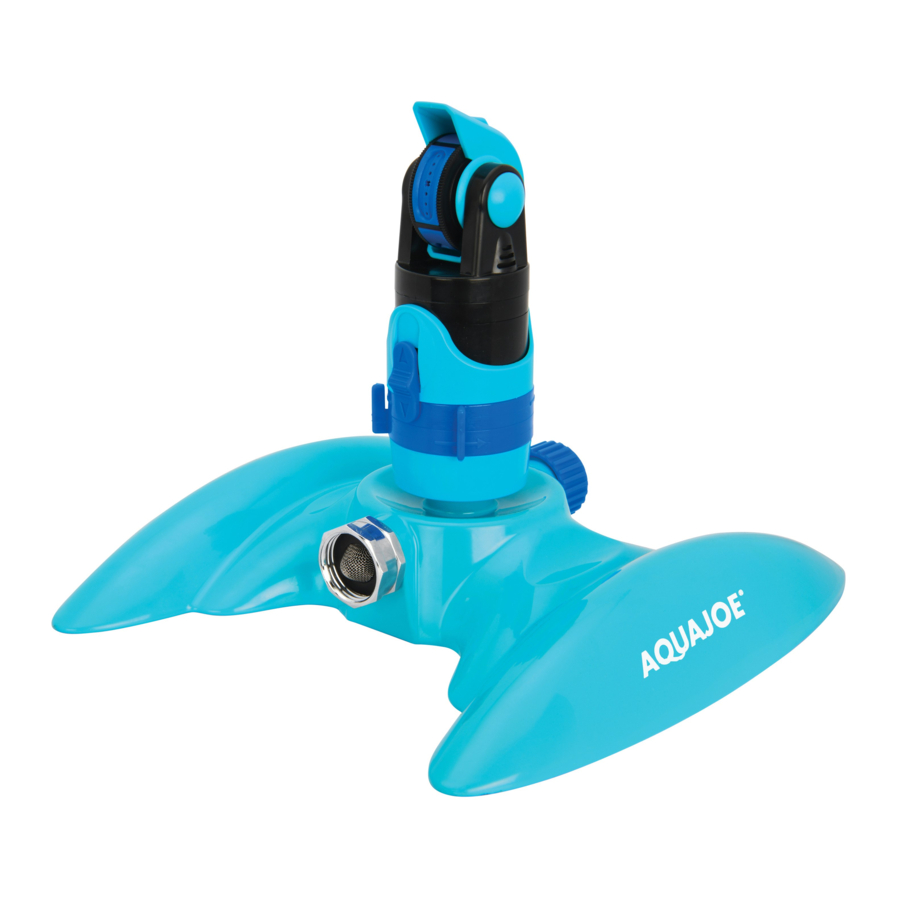

Read the owner's manual and safety rules carefully before using your turbo drive 360º sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Know Your Device

Spray distance adjuster
Spray pattern adjuster
360º rotation switch
Coverage sliding tabs
Hose-end connector
Base

Technical Data

Coverage Max		3740 sq ft
Spray Diameter Max		69 ft (21 m)
Max Pressure*		120 PSI
Max Flo		10 GPM
Spray Distance Max		34.5 ft (10.5 m)
Spray Patterns		4
Adjustable Coverage		Partial to full 360º circle
Fitting Size		Standard garden hose
Weight		1.2 lbs (0.5 kg)

* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.

Operation

Four Selectable Spray Patterns

Operation - Four Selectable Spray Patterns
Use spray pattern adjuster to select desired spray pattern: mist, fountain, multi, jet.

Distance Control

Operation - Distance Control
Use spray distance adjuster to adjust the length of the spray.

Coverage Control

Operation - Coverage Control
Sliding tabs allow for coverage adjustment from 30º – 360°.

360 Rotation Control

Operation - 360 Rotation Control
Push the rotation switch up for full circle (0˚ – 360˚)

Connecting to the Garden Hose

Operation - Connecting to the Garden Hose
Attach your garden hose to the hose-end connector.

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.
NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32º F (0º C).

Maintenance

Maintenance - Draining the unit
Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler.

Service and Support

If your Aqua Joe AJ-MSSBM Turbo Drive 360º Sprinkler requires service or maintenance, please call Snow Joe + Sun Joe customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model and Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space
Recording the Model and Serial Numbers
