Aqua Joe AJ-IST39BM - Brass Impulse 360 Degree Sprinkler Manual

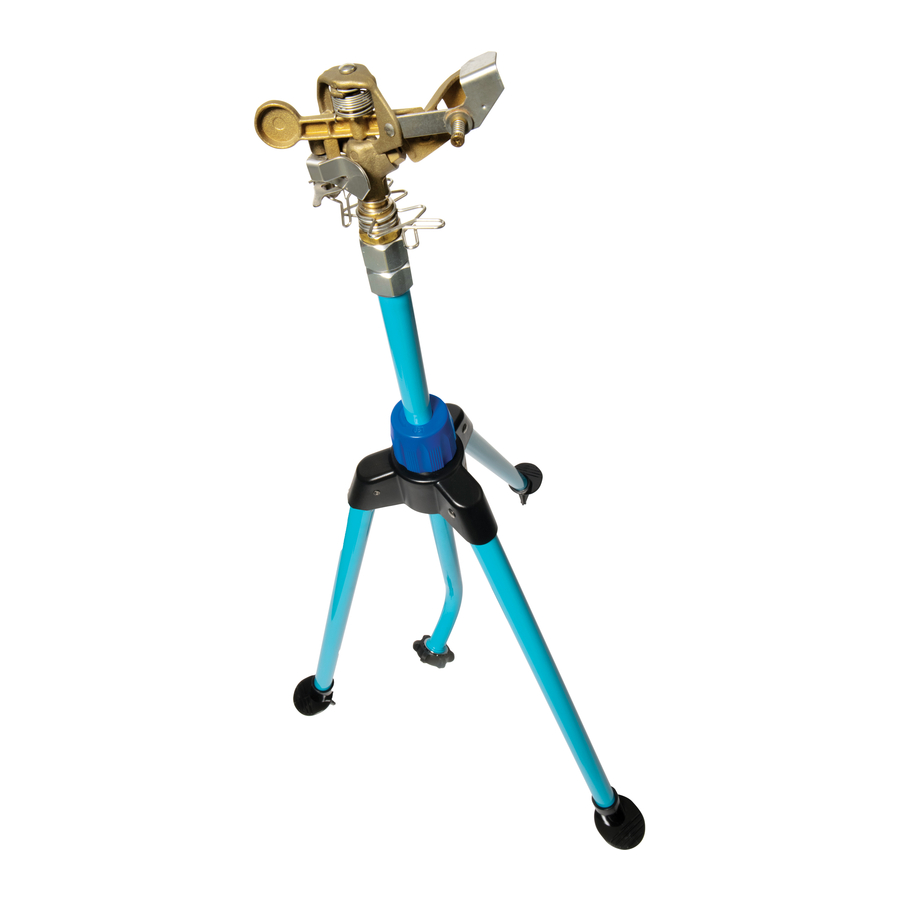

Know Your Impulse 360º Telescoping Sprinkler

Read the owner's manual and safety rules carefully before using your impulse 360º telescoping sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Anti-backsplash arm
2. Nozzle
3. Friction collars
4. Trip lever
5. Diffuser pin
6. Deflector shield
7. Telescopic pole
8. Locking knob
9. Hose-end connector
10. Tripod leg (3)
11. Spike (3)

Technical Data

Coverage Max: 1390 sq ft (129.1 m 2 )
Spray Diameter Max: 42 ft (12.8 m)
Max Pressure: 120 PSI
Max Flow: 4.2 GPM
Spray Distance Max: 21 ft (6.4 m)
Spray Patterns: Jet to mist
Adjustable Coverage: Partial to full 360º circle
Telescopic Tripod Height: 25 in. to 39 in. (63.5 cm to 99.1 cm)
Base: Aluminum tripod
Sprinkler: Brass
Fitting Size: Standard garden hose
Weight: 3 lbs (1.4 kg)

Operation

Distance Control

Use deflector shield to adjust the length of the spray. (Fig. 1).

Rotation Control

Set the friction collars for desired part circle coverage (5˚ - 360˚) (Fig. 2).

360º Coverage Control

Flip the trip lever up for full circle (0˚ – 360˚) (Fig. 3).

Adjusting Spray Patterns

Turn diffuser pin to adjust spray from narrow jet to wide mist (Fig. 4).

Telescopic Tripod

To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in positon by turning the locking knob clockwise (Figs. 5 – 6).

Spiked Legs

The spike cuts into the ground for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 7).

Open the spiked legs wide and dig them into the soil.

Connecting to the Garden Hose

Attach your garden hose to the hose-end connector (Fig. 8).

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.
NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32º F (0º C).

Maintenance

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 9).

Storage

Collapse the tripod legs for storage (Fig. 10).

Service + Support

If your Aqua Joe^® AJ-IST39BM Brass Impulse 360º Telescoping Sprinkler requires service or maintenance, please call Snow Joe^® + Sun Joe^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

If you have any questions or comments, please call the Snow Joe^® + Sun Joe^® customer service department at: 1-866-SNOWJOE (1-866-766-9563)
