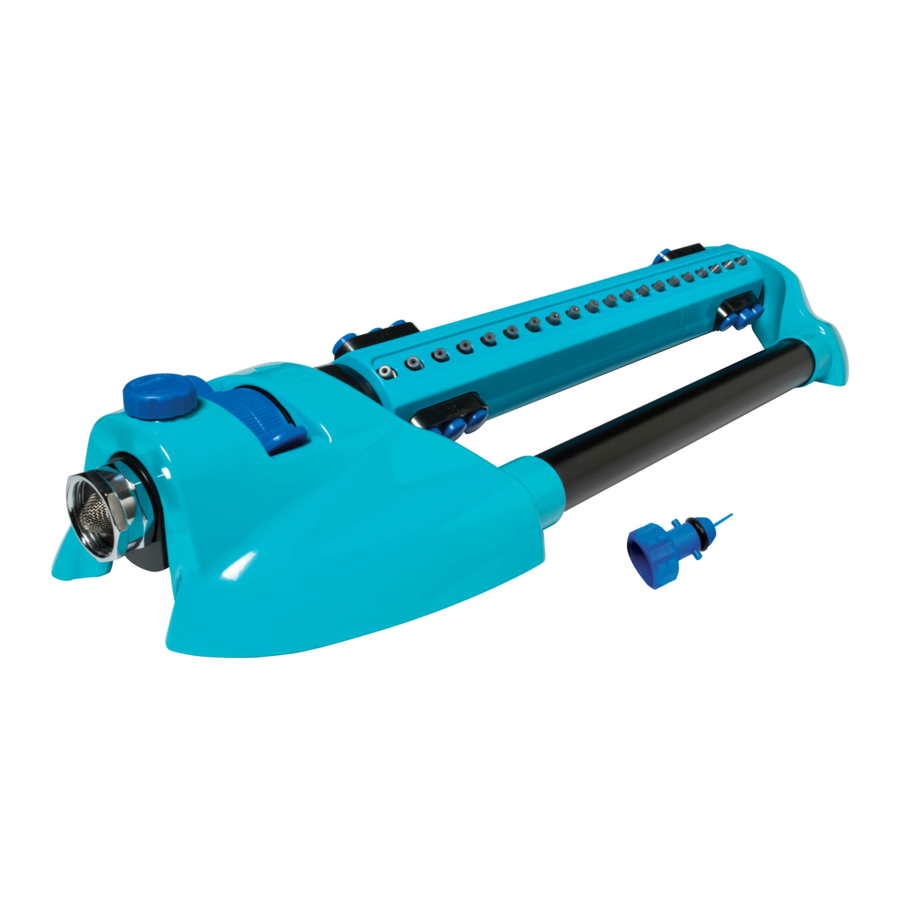

Know Your Oscillating Sprinkler

Read the owner's manual and safety rules carefully before using your oscillating sprinkler.
Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Know Your Oscillating Sprinkler

  1. Base
  2. Inlet filter
  3. Hose-end connector
  4. Water flow knob
  5. Range sliding tabs
  6. Spray range adjusters 1
  7. Oscillator tube
  8. Spray nozzles (20)
  9. Spray range adjusters 2
  10. Cleaning pin

Technical Data

Nozzle Heads: 20
Adjustable Range Control: Yes
Adjustable Width Control: Yes
Coverage Max: 4973 sq ft (462 m2)
Spray Distance Max: 74 ft (22.6 m)
Spray Width Max: 67.2 ft (20.5 m)
Max Pressure*: 120 PSI
Max Flow: 6.8 GPM (25.7 l/min)
Fitting Size: Standard Garden Hose
Weight: 2.8 lbs (1.3 kg)

* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.

Operation

  1. Use range sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1).
    Operation - Step 1

    For full coverage, spread the tabs apart (Fig. 2).
    For a narrower range, bring the tabs closer together (Fig. 3). Bring both tabs fully to either the left (Fig. 4) or the right (Fig. 5) for coverage on either side.

    Operation - Step 2
  2. Use spray range adjusters to select desired position and take advantage of the sprinkler's adjustable width control (Fig. 6).
    Operation - Step 3

    This sprinkler system has 6 individually adjustable nozzles to tailor width from 20 to 14 nozzles. Refer to (Fig. 7) to see the different options.
    Operation - Step 4
  3. Increase or decrease water flow with the water flow knob (Fig. 8).
    Operation - Step 5

Connecting to the Garden Hose

Attach your garden hose to the hose-end connector. (Fig. 9).
Connecting to the Garden Hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance + Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

  1. Remove the inlet filter from the hose-end of the oscillator and run under water (Fig. 10).
    Maintenance + Care - Step 1
  2. Remove the cleaning pin from the opposite end of the oscillator (Fig. 11).
    Maintenance + Care - Step 2
  3. To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place (Fig. 12)
    Maintenance + Care - Step 3
  4. Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler (Fig. 13).
    Maintenance + Care - Step 4

Storage

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler.

Service + Support

If your Aqua Joe ® AJ-OMS20-BRS oscillating sprinkler requires service or maintenance, please call Snow Joe ® + Sun Joe ® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.
Model + Serial Numbers

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at: 1-866-SNOWJOE (1-866-766-9563)
