Aqua Joe AJ-OSPR20 - Mini Gear-Driven Oscillating Sprinkler Manual

Know Your Oscillating Sprinkler

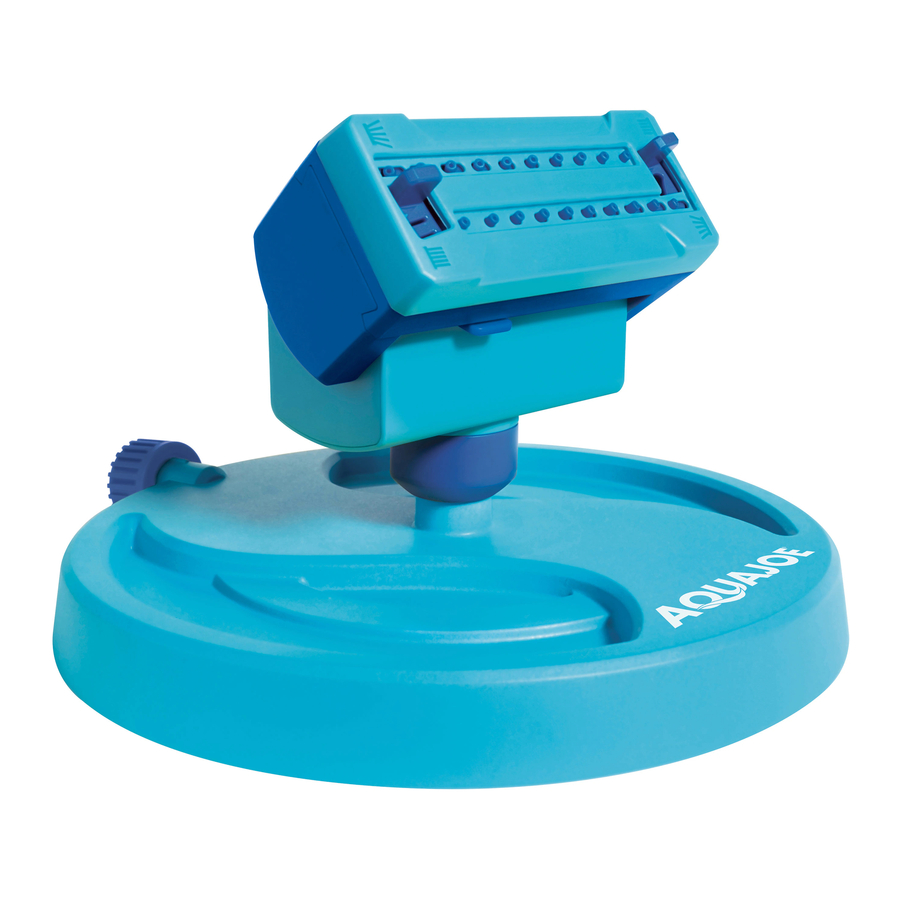

Read the owner's manual and safety instructions carefully before using the oscillating sprinkler. Compare the illustration below to the oscillating sprinkler in order to familiarize yourself with the various parts and components. Save this manual for future reference and reread it at the start of the season to familiarize yourself with the use, handling and features.

1. Rubber spray nozzle (20)
2. Spray width adjuster (2)
3. Spray range adjuster (2)
4. Water flow control
5. 360º adjustable neck
6. Base
7. Hose-end

Technical Data

Coverage Area Max: 4250 sq ft (394.8 sq m²)
Number of Spray Width Patterns: 4
Spray Width (Min.– Max.): 29.5 ft - 59 ft (9 m -18 m)
Spray Distance Max: 36.1 ft (11 m)
Adjustable: Width, Range, Water Flow, Rotation
Max Pressure: 150 PSI
Fitting Size: Fits standard 5/8 in. (15.9 mm) garden hose
Sprinkler Type: Oscillating
Weight: 1.1 lbs (0.5 kg)

Assembly

Connect the sprinkler head to the base by rotating it clockwise until tight (Fig. 1).

Operation

Width Control

Use the spray width adjusters to select desired position and take advantage of the sprinkler's adjustable range control (Fig.2).


Refer to (Fig. 3) to see the different sprinkler options.

Spray Width Patterns

Range Control

Use the spray range adjusters to adjust the length of the spray. There is one on each side of the sprinkler to adjust the range of travel to each side (Figs 4 & 5).

Flow Control

Turn the water flow control to increase or decrease water flow through the sprinkler (Figs. 6 & 7).

360º Adjustability

Rotate 360º adjustable neck clockwise or counterclockwise as desired to adjust spray coverage area (Figs. 8 & 9).

To Use

Attach your garden hose to the hose-end. There should be a rubber washer inside the hose-end (Fig. 10).

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.
NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32 o F (0 o C).

Storage

Drain the oscillating sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 11).

Service + Support

If your Aqua Joe ® AJ-OSPR20 oscillating sprinkler requires service or maintenance, please call Snow Joe ® + Sun Joe ® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

If you have any questions or comments, please call the Snow Joe^® + Sun Joe^® customer service department at: 1-866-SNOWJOE (1-866-766-9563)
