EA01241F/00/A2/01.18
71392537
*71392537*
71392537

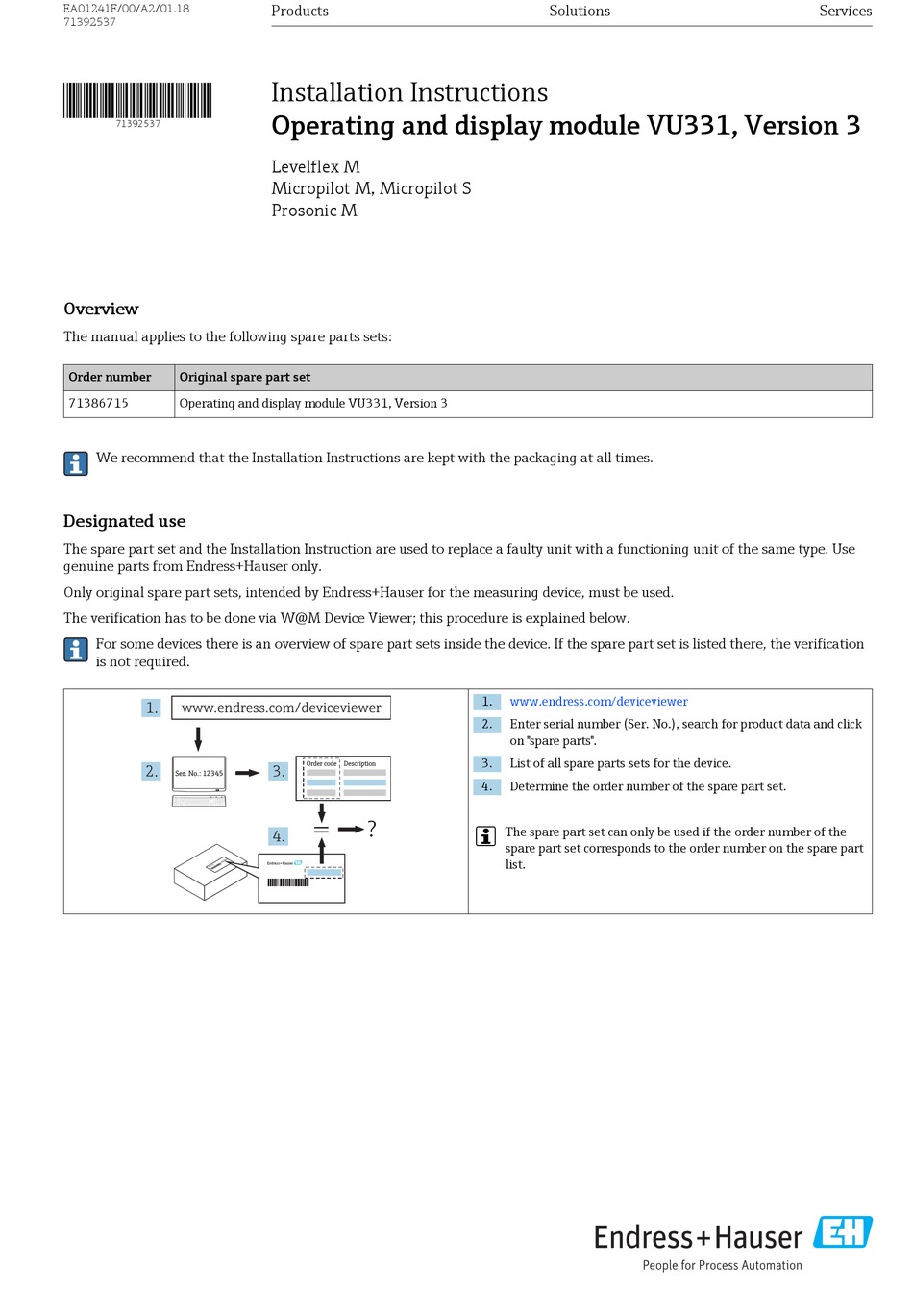

Overview
The manual applies to the following spare parts sets:
Order number
Original spare part set
71386715

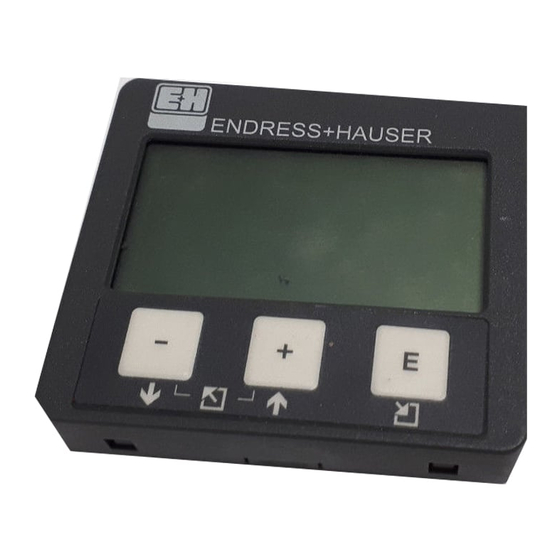

Operating and display module VU331, Version 3
We recommend that the Installation Instructions are kept with the packaging at all times.
Designated use
The spare part set and the Installation Instruction are used to replace a faulty unit with a functioning unit of the same type. Use
genuine parts from Endress+Hauser only.
Only original spare part sets, intended by Endress+Hauser for the measuring device, must be used.
The verification has to be done via W@M Device Viewer; this procedure is explained below.
For some devices there is an overview of spare part sets inside the device. If the spare part set is listed there, the verification
is not required.
1.
www.endress.com/deviceviewer
2.
Ser. No.: 12345
Products
Installation Instructions
Operating and display module VU331, Version 3
Levelflex M
Micropilot M, Micropilot S
Prosonic M
Order code
Description
3.
=
?
4.
Solutions
1.
www.endress.com/deviceviewer
2.
Enter serial number (Ser. No.), search for product data and click
on "spare parts".
3.
List of all spare parts sets for the device.
4.
Determine the order number of the spare part set.
The spare part set can only be used if the order number of the
spare part set corresponds to the order number on the spare part
list.
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VU331 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Endress+Hauser VU331

  • Page 1 The spare part set and the Installation Instruction are used to replace a faulty unit with a functioning unit of the same type. Use genuine parts from Endress+Hauser only. Only original spare part sets, intended by Endress+Hauser for the measuring device, must be used. The verification has to be done via W@M Device Viewer; this procedure is explained below.
  • Page 2: Authorized Personnel

    1, 2, 3 With approval (e.g. IECEx) 1, 2, 3 1 = Trained customer technician, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser (send measuring device back to manufacturer) Safety instructions • Check whether the spare part matches the identification •...
  • Page 3: Symbols For Certain Types Of Information

    To adjust the contrast, press button "E" and either one of the "+" or "-" buttons at the same time while the display unit is inserted. • Button "E" and "+" = increases the contrast • Button "E" and "-" = reduces the contrast Endress+Hauser...
  • Page 4 To adjust the contrast, press button "E" and either one of the "+" or "-" buttons at the same time while the display unit is inserted. • Button "E" and "+" = increases the contrast • Button "E" and "-" = reduces the contrast Endress+Hauser...
  • Page 5: Bestimmungsgemäße Verwendung

    Bestimmungsgemäße Verwendung Ersatzteilset und Einbauanleitung dienen dazu, eine defekte Einheit gegen eine funktionierende Einheit des gleichen Typs zu ersetzen. Es dürfen nur Originalteile von Endress+Hauser verwendet werden. Grundsätzlich dürfen nur Ersatzteilsets verwendet werden, die von Endress+Hauser für das Messgerät vorgesehen sind.
  • Page 6 Ohne Zulassung 1, 2, 3 Mit Zulassung (z.B. IECEx) 1, 2, 3 1 = Ausgebildete Fachkraft des Kunden, 2 = Von Endress+Hauser autorisierter Servicetechniker, 3 = Endress+Hauser (Messgerät an Hersteller zurücksenden) Sicherheitshinweise • Prüfen, ob das vorliegende Ersatzteil zur Kennzeichnung auf •...
  • Page 7 Kontrast einstellen am Anzeige-/Bedienmodul Um den Kontrast zu verändern, bei eingesteckter Anzeige die Taste "E" und gleichzeitig eine der beiden Tasten "+" oder "-" drücken. • Taste "E" und "+" = mehr Kontrast • Taste "E" und "-" = weniger Kontrast Endress+Hauser...
  • Page 8 Kontrast einstellen am Anzeige-/Bedienmodul Um den Kontrast zu verändern, bei eingesteckter Anzeige die Taste "E" und gleichzeitig eine der beiden Tasten "+" oder "-" drücken. • Taste "E" und "+" = mehr Kontrast • Taste "E" und "-" = weniger Kontrast Endress+Hauser...
