Summary of Contents for Endress+Hauser VU113

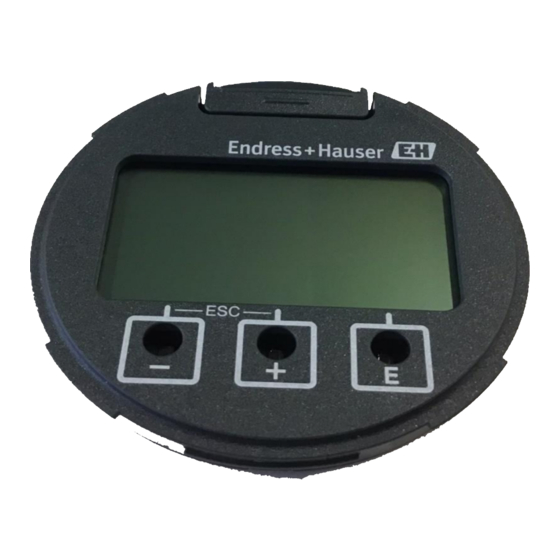

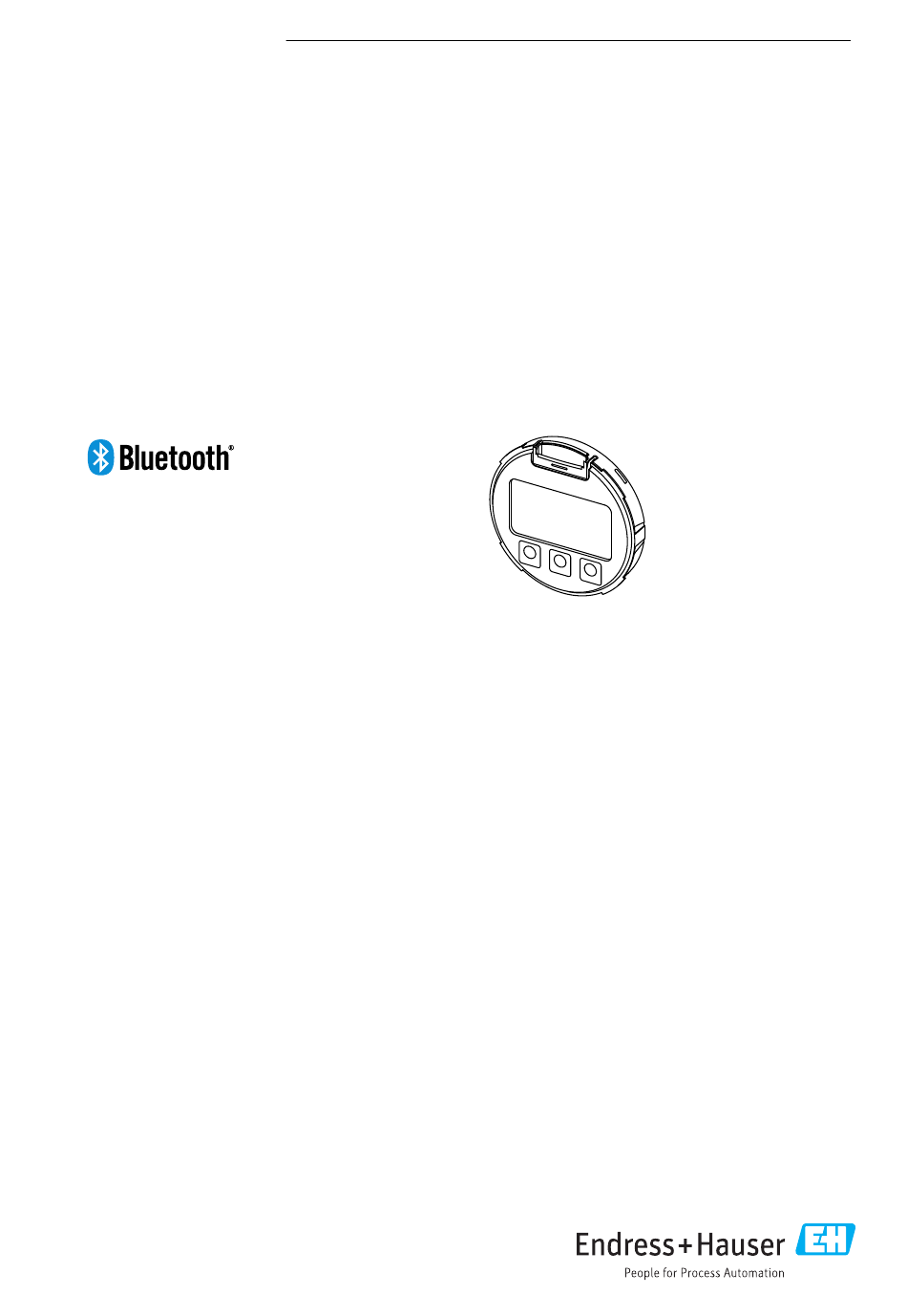

- Page 1 Products Solutions Services SD02530P/00/EN/07.21-00 71550163 2022-02-28 Special Documentation VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Remote operation via Bluetooth® wireless technology...
-
Page 2: Declaration Of Conformity
Declaration of conformity VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Declaration of conformity A0047192 Endress+Hauser... - Page 3 VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Declaration of conformity A0047193 Endress+Hauser...
- Page 4 Declaration of conformity VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys A0047194 Endress+Hauser...
-
Page 5: Document Information
Registered trademarks Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®... - Page 6 • L' u tilisateur de l' a ppareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' e n compromettre le fonctionnement. Les changements ou modifications apportés à cet appareil non expressément approuvés par Endress+Hauser SE+Co. KG peuvent annuler l' a utorisation FCC d' u tiliser cet appareil. Endress+Hauser...
- Page 7 VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Radio approvals Mexico IFETEL notice La operación de este equipo está sujeta a las siguientes dos condiciones: • (1) es posible que este equipo o dispositivo no cause interferencia perjudicial •...
- Page 8 Radio approvals VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Thailand A0042673 Endress+Hauser...
- Page 9 VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Radio approvals Singapore Complies with IDMA Standards DA108204 A0042672 Malaysia HIDF18000085 A0042675 Indonesia Cert. ID: 70763/SDPPI/2020 PLG ID: 4962 A0044414 Endress+Hauser...
-
Page 10: Other Countries
Operation options VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys 3.10 Brazil A0039064 00732-21-07318 Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados 3.11 Other countries Other national approvals are available on request. -
Page 11: Technical Data
VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Operation options Access via Bluetooth® wireless technology Bluetooth is optional, and is not an integral feature of the display (see the product structure for the specific device). A0041912 ... - Page 12 Commissioning with Bluetooth VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys • Temperature range: –40 to +85 °C (–40 to +185 °F) • Suitable for wet environments, integrated in measuring devices • Relative humidity: operation up to 100 % in the measuring devices...
- Page 13 VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Onsite commissioning SmartBlue app Scan the QR code or enter "SmartBlue" in the search field of the App Store. A0039186 2 Download link Start SmartBlue. Select device from livelist displayed.
- Page 14 Onsite commissioning VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Display User ABC_ DEFG HIJK LMNO PQRS TUVW A0044661 Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active) 1.2 Measured value symbols...
-
Page 15: Operating Elements
VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Onsite commissioning Operating elements • Minus key • In menu, submenu Moves the bar up in a picklist • In text and numeric editor In the input mask, moves the bar to the left (backwards) •... -
Page 16: Entering Numbers And Text
Onsite commissioning VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Entering numbers and text User ABC_ DEFG HIJK PQRS LMNO TUVW A0044636 Numeric editor Text editor Editing view Display area of the entered values Input screen Operating elements 6.3.1... -
Page 17: Troubleshooting
VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Troubleshooting Troubleshooting Errors in local operation Error Possible cause Remedy Key not responding Cover glass dirty Remove dirt. If necessary, then wait 3 min until the keys respond to operation again. - Page 18 History VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Error Possible cause Remedy The device is already Only one point-to-point connection is established connected with another between a sensor and a smartphone or tablet smartphone/tablet Device is being put into Enter initial password (device serial number) and change.
- Page 19 VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys Disposal Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste.
- Page 20 *71550163* 71550163 www.addresses.endress.com...
Need help?
Do you have a question about the VU113 and is the answer not in the manual?
Questions and answers

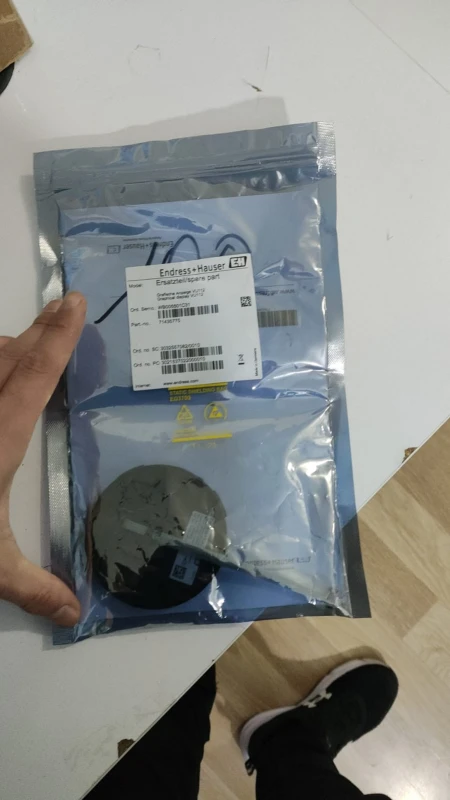

V112 part price pleas
