ZEEWEII DSO1511G User Manual page 2

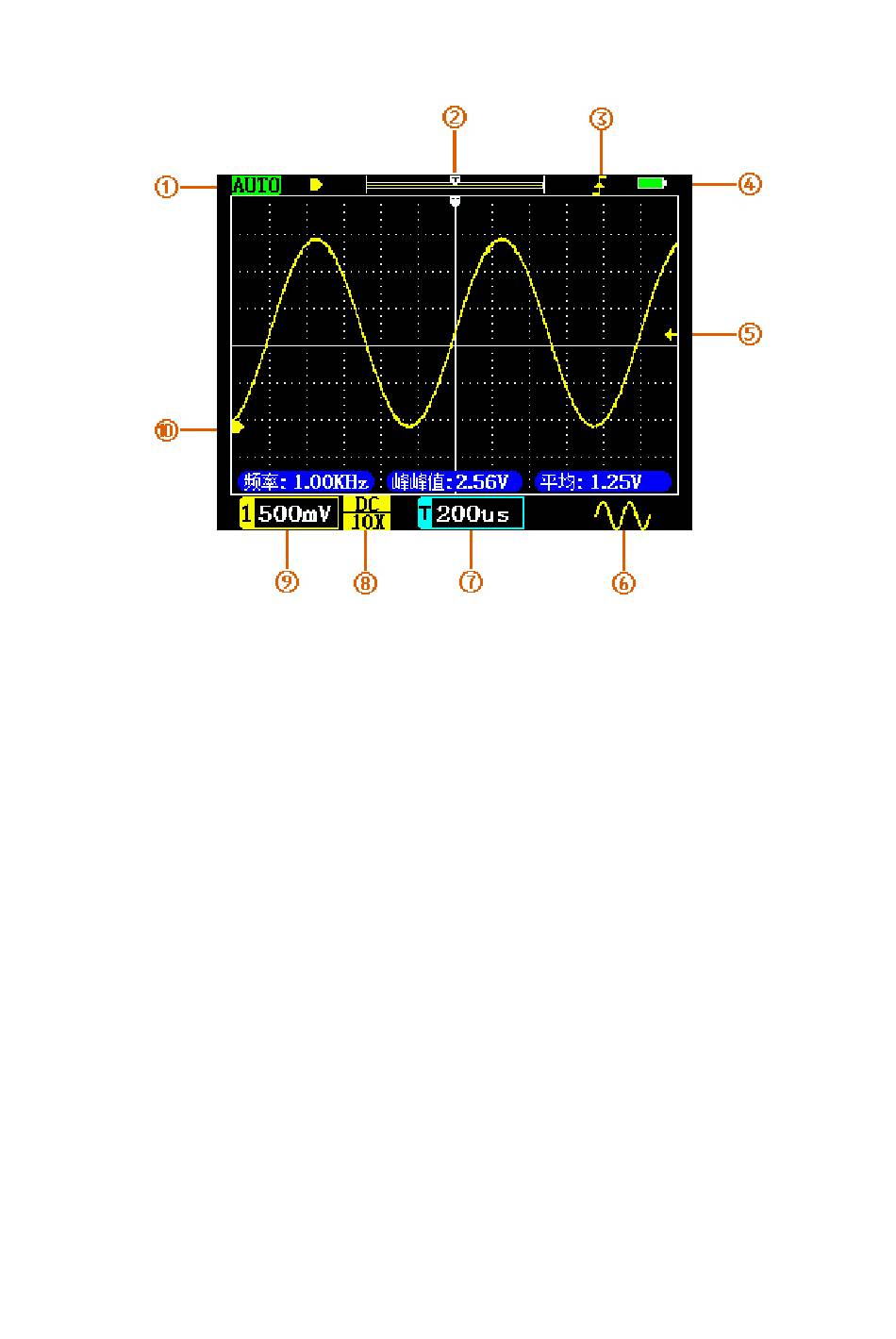

① Current trigger mode: Auto/Normal.
② A thumbnail view of the current window and memory.
③ Trigger edge: rising/falling.
④ Battery remaining power.
⑤ The position of the trigger level.
⑥ The waveform type of the generator. When it is closed, no display.
⑦ Time base, which means the time of a grid in the horizontal direction.
Click the "ns" and "s" buttons to adjust.
⑧ Coupling: DC/AC. Probe attenuation: x1/x10/x100.
⑨ Vertical sensitivity, which means the voltage of a grid in the vertical
direction. Click the "mV" and "V" buttons to adjust.
⑩ Zero voltage arrow. Indicates the position on the screen where the
vertical voltage is zero.
