6.15 Cursor

Hold down the Power button and then click the "s" button to turn on/off the
horizontal cursor.
Press and hold the Power button and then click the "ns" button to turn on/off the
vertical cursor.
Press the left and right direction buttons directly to move the horizontal cursor 1
Press and hold the Power button and then press the horizontal direction buttons to
move the horizontal cursor 2. The same goes for the vertical cursor.
For the vertical cursor, the value of Y1 means: the voltage of the dotted line
above. The value of Y2 means: the voltage of the dotted line below. dY=Y1-Y2 is the
voltage difference between the two dotted lines.
Click the "Menu" button to open / close the menu.

7.1 Channel

The channel menu includes two options, "Coupling" and "Probe".
The coupling method can be "DC coupling" and "AC coupling". DC coupling
passes the signal directly. AC coupling is equivalent to series connection with the
capacitor.
Probes are available in "1X" / "10X"/ "100X", this option corresponds to the
oscilloscope probe. When the probe is switched to the 10X position, this option
should be selected as "10X".

7.2 Measurement

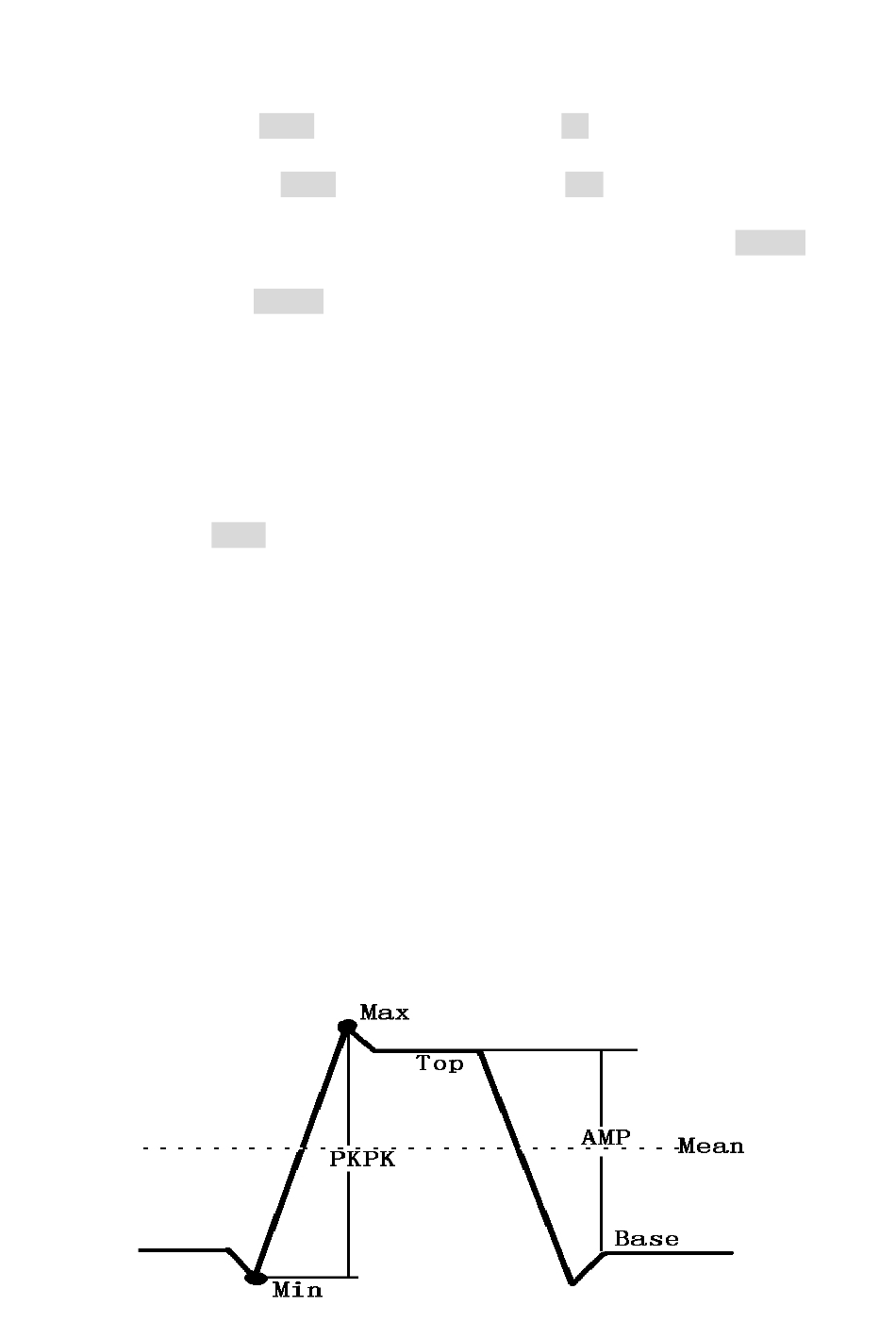

There are 14 measurement options available, as shown below:
Frequency, Peak-to-Peak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse
width, -Pulse width, Max, Min,Top, Base, -Duty cycle.
