Summary of Contents for POOLiN EOC05

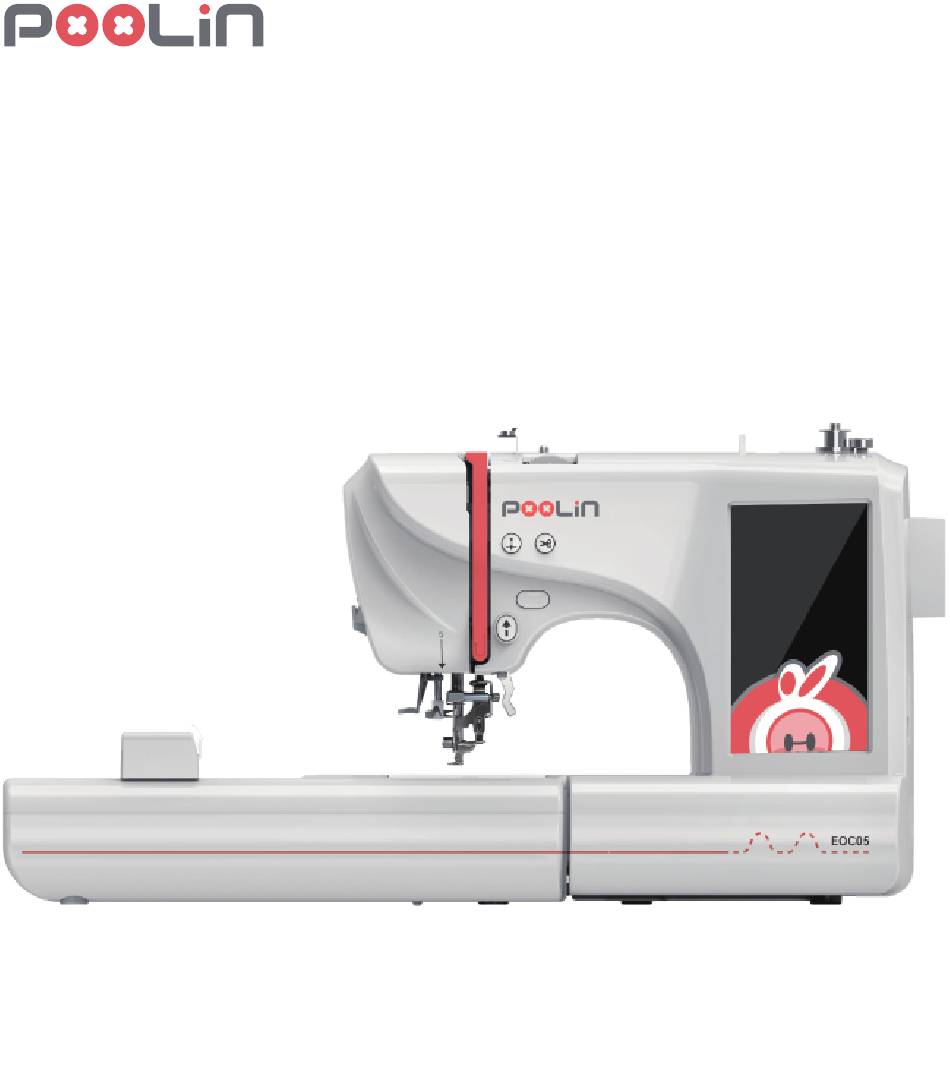

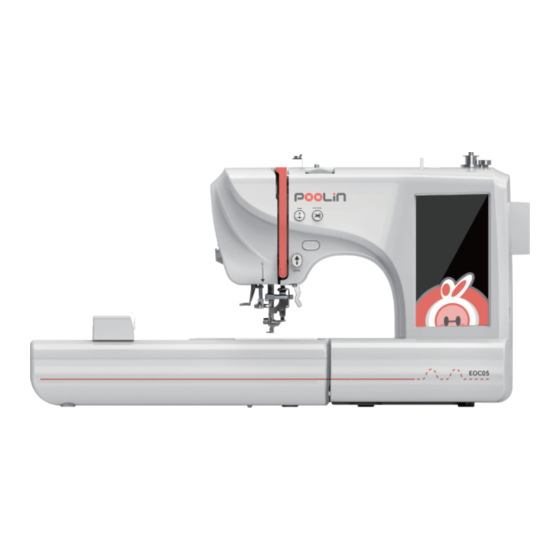

- Page 1 Quick Guide EOC05 Auto Cutting Needle Start/Stop It is recommended that beginners to test refer to the Quick Guide first, and any question please feel free to contact us .
- Page 2 Reminder 1 1 1 Security Please safe electricity, follow operating procedures, and avoid puncturing needles. Environment Place the machine in a dry environment and keep it away from children. Voltage The machine supports wide voltage input, the voltage range is 110V to 220V. Before threading and installing the embroidery frame, please ensure the machine is in the following state：...
-
Page 3: Accessories List
Accessories list Bobbin cover Shuttle race cover Hoop 100*235 Hoop 100*100 Bobbin Tweezers Stylus Scissprs Seam ripper Screwdriver Power cable User manual An envelope Needles Pin cap Wrench Tips： Please refer to the teaching video named "Unboxing" in USB. -
Page 4: Threading The Machine
Threading the machine Lift the thread stand Insert the thread Insert pin cap Pass through the hook Pass through the clip Bypass the spring Bypass the rod Bypass the needles clip Place the thread Step 6: Pull the thread upwards, pass through the elastic hook, and pull it. Tips：... - Page 5 Threading the machine Pass the automatic threading Lower the presser foot Press the pressure rod device Pass the barb Through the presser foot Pull out thread Release the pressure bar Cut the thread Tips： Please make sure to lift the presser foot before threading. If you use manual threading, follow step Through the presser foot,cut the Lower the presser foot...
-
Page 6: Install The Bobbin
Install the bobbin Pull the buckle to the right Place the bobbin counterclockwise Clamp the cover on the left side Follow the arrow to wrap the bobbin thread Press the cover Cut off the excess thread Tips： We have prepared a prewound bobbin, which is installed inside the machine. -
Page 7: Install The Frame
Install the frame Fabric Backing Loosen the screw Install the embroidery unit Install backing and fabric Remove the frame Lift the presser foot Clamp frame Tighten the screw Install the frame Tips： 1.For better installation, loosen the screws first. 2.Please place a layer of backing under the fabric. 3.Place fabric and backing inside the frame, then straighten the fabric and tighten the screws. - Page 8 Start up Plug in Press the switch button...
- Page 9 Choose the pattern Click built-in pattern Choose a pattern...
- Page 10 Config the pattern Click Config Choose the color Choose the corresponding frame...
- Page 11 Start embroidery Click Emb Click trace, confirm embroidery range Click ready Put down the presser foot, click the start button on machine Start/Stop...
- Page 12 After completing the above tests, you can start your own diy embroidery journey. If you encounter any problems, you can check the user manual or feel free to contact us at any time. Poolinservice@richword.com +8618900635078 POOLIN Users Group POOLIN Sewing Machine...
