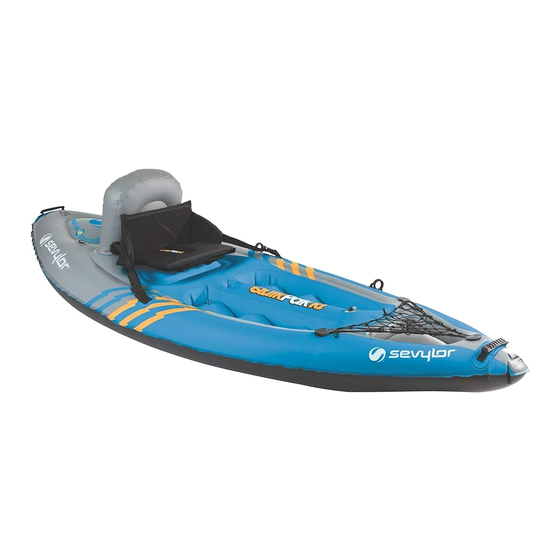

Sevylor QUIKPAK Manual

Sevylor QUIKPAK Manual

Inflatable kayaks
Hide thumbs Also See for QUIKPAK:

Advertisement

Quick Links

INFLATABLE
QUIKPAK™ KAYAKS
READ THE FOLLOWING
INSTRUCTIONS AND WARNINGS TO AVOID
DROWNING OR SERIOUS INJURY
Failure to follow these warnings could cause SEVERE INJURY or DEATH.
● CONSULT WITH A PHYSICIAN prior to beginning paddle sport training.
Paddle sports can be very dangerous and physically demanding.
● OBTAIN PADDLESPORT TRAINING specific to this type of craft. Do not
exceed your padding ability - be honest with yourself. Obtain certified first aid
training and carry first aid and safety/rescue equipment.
● WEAR U.S COAST GUARD APPROVED LIFE JACKETS,
and where appropriate, wear a helmet.
● NOT A LIFE SAVING DEVICE.
● NEVER PADDLE ALONE.
● CHECK WEATHER FORECAST BEFORE DEPARTING DOCK and heed all
weather advisories.
● DRESS APPROPRIATELY for the weather conditions, as cold water
and/or cold weather can cause hypothermia.
● DO NOT PADDLE IN FLOOD CONDITIONS.
● BE AWARE OF THE WATER CONDITIONS, including appropriate water
levels,tidal changes, dangerous currents and other water hazards. Do not use in
high wind, strong currents, open water or dangerous tides. Always scout
unfamiliar waters, and portage where appropriate.
● NEVER PADDLE WHILE UNDER THE INFLUENCE
®
of drugs or alcohol.
● KEEP PROPER LOOKOUT AND SAFE
DISTANCE from other vessels and hazards
at all times.
● OBEY APPLICABLE BOATING LAWS. Know and follow local water safety
rules and boating regulations.
● READ THE OWNER'S MANUAL and follow the manufacturer's
recommendations for the use this product. It is the owner's responsibility to
carefully read the manual and instruct all users in safe operation of this product.
Consult the manufacturer's information prior to adding aftermarket equipment.
● DO NOT OVERLOAD OR OVERINFLATE. Adults should inflate the
chambers in numbered sequence.
WARNING!

Advertisement

loading
Need help?

Need help?

Do you have a question about the QUIKPAK and is the answer not in the manual?

Questions and answers

Summary of Contents for Sevylor QUIKPAK

  • Page 1 INFLATABLE QUIKPAK™ KAYAKS READ THE FOLLOWING INSTRUCTIONS AND WARNINGS TO AVOID DROWNING OR SERIOUS INJURY WARNING! Failure to follow these warnings could cause SEVERE INJURY or DEATH. ● CONSULT WITH A PHYSICIAN prior to beginning paddle sport training. Paddle sports can be very dangerous and physically demanding.
  • Page 2 IMPORTANT INFORMATION The warnings below relate to various situations. Please observe them. CAUTION! Denotes an imminent hazard which will result in severe injury if you do not comply with the instructions. WARNING! Reminds you of safety measures which must be observed. Also denotes unsafe practices which could result in personal injury or damage to the product or property, if you do not comply with the instructions.
  • Page 3 Phone/Teléfono/Téléphone: Please complete the “if found label” located on the boat with the boat owners contact information in large print with a permanent marker. INFLATION INSTRUCTIONS To inflate using any Sevylor Pump: ® CAUTION! Do not over inflate. Pressurize product to “Inflation Pressure”...
  • Page 4 Note: To in ate the mini Double Lock™ valve, which is used on some of the Sevylor product oors and seat bottoms, follow the same in ation instructions above, using the mini Double Lock™ valve adapter. The mini Double Lock™ valve adapter is included with all Sevylor pumps.
  • Page 5 2. Unbuckle waist strap and shoulder straps. Unzip or remove spray skirt. Inner Support Straps 3. Unbuckle inner support straps. 4. Remove kayak from QuikPak™ unit and set kayak aside. Shoulder Straps 5. Pull shoulder straps through openings 6. Fold bottom flap and inner support straps in QuikPak™...
  • Page 6 Inflate Kayak (using order shown below) Outer Chamber DIN Chamber Valve Valve 9. Inflate outer chamber to 0.9 PSI. 10. Inflate DIN chamber to 0.9 PSI. Floor Chamber Floor Chamber Valve Valve Seat Back Seat Bottom 11. Inflate floor chamber to 0.9 PSI. 12.
  • Page 7 Straps Straps Spray Skirt Spray Skirt 16. Adjust backrest straps to desired tension. 17. Zip spray skirt onto kayak. Your QuikPak™ Kayak is now ready for use. K5 QuikPak™ Kayak Breakdown/Storage Instructions Spray Skirt Spray Skirt 1. Remove kayak seat.
  • Page 8 9. Store pump in cargo net on rear of QuikPak™ unit. Store paddle in side pockets and use hook & loop straps to secure the top of the paddle shafts. Your QuikPak™ kayak is now ready to transport or store.
  • Page 9 QuikPak™ unit as shown above. Hook & Loop Strips Hook & Loop Strips 7. Fold over left side flap of QuikPak™ unit, 8. Fold over right side flap of QuikPak™ unit, as shown above. attaching the hook & loop strips to secure the QuikPak™...
  • Page 10 Support Strap Support Strap 9. Buckle & tighten the support strap and set aside. Inflate Kayak (using order shown below) Inner Inner Chamber Chamber Foot Well Foot Well Valve Valve Valves Valves 10. Inflate kayak using the following steps. 10b. Inflate inner chamber to 0.5 PSI. 10a.
  • Page 11 1. Remove kayak seat, remove cargo net & 3. Fold kayak using the following steps. deflate kayak. 3a. Fold kayak lengthwise to center as shown above. 2. Unfold kayak seat in reverse order (QuikPak™ unit should look as shown above).
  • Page 12 8. Store pump in cargo net on rear of QuikPak™ unit. Store paddle in side Paddle Paddle pockets and use hook & loop straps to Pockets Pockets secure the top of the paddle shafts. Your QuikPak™ kayak is now ready to transport or store.
  • Page 13 Capacity Payload Capacity Pressure Pressure Model # Persons Only Persons, Gear Main Chamber(s) Floor Chamber(s) K5 QuikPak™ Kayak 1 Pers. or 250 250 lbs. 0.9 PSI 0.9 PSI lbs. K1 QuikPak™ Kayak 1 Pers. or 400 400 lbs. 0.5 PSI 0.5 PSI...
  • Page 14: Motor Mounting

    • The products may be stored in ated, but do not place any heavy or sharp objects on it. Storage is best in a dry room. REPAIRING SMALL PUNCTURES For inadvertent punctures, you can repair them with the included Sevylor repair patch. ® INSTRUCTIONS: 1.
  • Page 15: Guidelines For Usage

    PADDLE ASSEMBLY: SELECT MODELS ONLY. Join the three shafts together by screwing them together with the two couplers. Attach the blade to the shafts by screwing onto the end of the shaft. Coupler Coupler Shaft Shaft Shaft Blade Blade GUIDELINES FOR USAGE: These kayaks may be wider than a typical kayak, which means they may feel more stable.
  • Page 16 If you have any questions regarding this warranty please call 1-800-835-3278 or TDD 1-316-832-8707 in the United States or 1-800-387-6161 in Canada. © 2023 The Coleman Company, Inc. All rights reserved. Double Lock™ and QuikPak™ are trademarks of The Coleman Company, Inc. Sevylor are registered trademarks of The Coleman Company, Inc.
