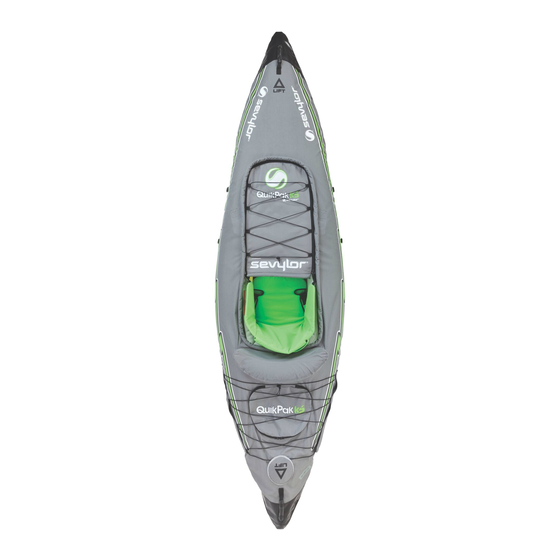

Inflatable kayaks
Hide thumbs Also See for Quikpak:

Advertisement

INFLATABLE
QUIKPAK™ KAYAKS
READ THE FOLLOWING
INSTRUCTIONS AND WARNINGS TO AVOID
DROWNING OR SERIOUS INJURY
Paddle sports can be very dangerous and physically demanding. The user
of this product should understand that participating in paddle sports may
involve serious injury or death. Observe the following safety standards
whenever using this product.
It is the owner's responsibility to carefully read the manual and instruct all
users in safe operation of this product.
Not a life saving device.
Get paddle sport instruction specific to this type of craft.
Obtain certified first aid training and carry first aid and
safety/rescue equipment.
Always wear an approved Personal Flotation Device (Life Preserver).
Wear a helmet when appropriate.
Dress appropriately for weather conditions; cold water and/or cold
weather can result in hypothermia.
Never paddle alone.
Do not paddle in flood conditions.
Be aware of river water levels, tidal changes, dangerous currents and
weather changes.
Do not use in high wind, strong currents, open water or dangerous tides.
Scout unfamiliar waters; portage when appropriate.
Do not exceed your paddling ability; be honest with yourself.
Consult a physician prior to beginning your paddle sport training.
Do not use this product under the influence of alcohol or drugs.
Do not make any alterations to this product.
Do not overload or over inflate.
Never tow from another boat or vehicle.
Know and follow local water safety rules and boating regulations.
CAUTION:
Safety Warning

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quikpak and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sevylor Quikpak

  • Page 1 INFLATABLE QUIKPAK™ KAYAKS READ THE FOLLOWING INSTRUCTIONS AND WARNINGS TO AVOID DROWNING OR SERIOUS INJURY CAUTION: Safety Warning Paddle sports can be very dangerous and physically demanding. The user of this product should understand that participating in paddle sports may involve serious injury or death.
  • Page 2 IMPORTANT INFORMATION The warnings below relate to various situations. Please observe them. CAUTION! Denotes an imminent hazard which will result in severe injury if you do not comply with the instructions. WARNING! Reminds you of safety measures which must be observed. Also denotes unsafe practices which could result in personal injury or damage to the product or property, if you do not comply with the instructions.
  • Page 3 INFLATION INSTRUCTIONS To inflate using any Sevylor ® QuickPump™ unit: 1. To begin inflation, open external cap and pull 2. Attach adapter nozzle to inflation end of firmly on the lanyard to extend out. This will pump. Insert pump and turn on.
  • Page 4 Double Lock™ valve adapter. The mini Double Lock™ valve adapter is included with all Sevylor ® pumps. The adapter can be purchased from Sevylor Customer Service by calling 1-800-835-3278 (Part Number 5010000707). CAUTION! Water temperature and weather does affect the pressure in inflatable products.
  • Page 5 2. Unbuckle waist strap and shoulder straps. Unzip or remove spray skirt. Inner Support Straps 3. Unbuckle inner support straps. 4. Remove kayak from QuikPak™ unit and set kayak aside. Shoulder Straps 5. Pull shoulder straps through openings 6. Fold bottom flap and inner support straps in QuikPak™...
  • Page 6 Inflate Kayak (using order shown below) Outer Chamber DIN Chamber Valve Valve 9. Inflate outer chamber to 0.9 PSI. 10. Inflate DIN chamber to 0.9 PSI. Floor Chamber Valve Seat Back Seat Bottom 11. Inflate floor chamber to 0.9 PSI. 12.
  • Page 7 Back Rest Straps Spray Skirt 16. Adjust backrest straps to desired tension. 17. Zip spray skirt onto kayak. Your QuikPak™ Kayak is now ready for use. K5 QuikPak™ Kayak Breakdown/Storage Instructions Spray Skirt 1. Remove kayak seat. 3. Unfold side flaps, bottom flap & inner support straps.
  • Page 8 9. Store pump in cargo net on rear of QuikPak™ unit. Store paddle in side pockets and use hook & loop straps to secure the top of the paddle shafts. Your QuikPak™ kayak is now ready to transport or store.
  • Page 9 K3 QuikPak™ Kayak Set Up Instructions Inner Support Strap Detachable Fin Rear Flap 1. Remove QuikPak™ Kayak & detachable fin 2. Unzip QuikPak™ unit rear flap and from box. unbuckle inner support strap. NOTE: Be sure not lose the detachable fin.
  • Page 10 9. Turn seat over and set aside. 10. Unfold kayak and install detachable fin to connectors on bottom, rear of kayak, by hooking the fin tabs into the slots on the connectors. Note: Skip step 10 if model comes with permanently attached fin.
  • Page 11 15. Connect seat backrest buckles to buckles 16. Adjust backrest straps to your on kayak. desired tension. Your QuikPak™ Kayak is now ready for use. K3 QuikPak™ Kayak Breakdown/Storage Instructions Shoulder Straps 1. Remove kayak seat & deflate kayak. 3. Pull shoulder straps back through openings.
  • Page 12 Straps 10. Store pump in cargo net on rear of QuickPack™. Store paddle in side pockets and use hook & loop straps to secure the top of the paddle shafts. Your QuikPak™ kayak is now ready to transport or store.
  • Page 13 QuikPak™ unit as shown above. Hook & Loop Strips 7. Fold over left side flap of QuikPak™ unit, 8. Fold over right side flap of QuikPak™ unit, as shown above. attaching the hook & loop strips to secure the QuikPak™...
  • Page 14 Support Strap 9. Buckle & tighten the support strap and set aside. Inflate Kayak (using order shown below) Inner Chamber Foot Well Valve Valves 10. Inflate kayak using the following steps. 10b. Inflate inner chamber to 0.5 PSI. 10a. Inflate foot wells to 0.5 PSI. Outer Chamber Valve Seat Back Valve...
  • Page 15 1. Remove kayak seat, remove cargo net & 3. Fold kayak using the following steps. deflate kayak. 3a. Fold kayak lengthwise to center as 2. Unfold kayak seat in reverse order shown above. (QuikPak™ unit should look as shown above).
  • Page 16 8. Store pump in cargo net on rear of QuikPak™ unit. Store paddle in side Paddle pockets and use hook & loop straps to Pockets secure the top of the paddle shafts. Your QuikPak™ kayak is now ready to transport or store.
  • Page 17 Capacity Payload Capacity Pressure Pressure Model # Persons Only Persons, Gear Main Chamber(s) Floor Chamber(s) K5 QuikPak™ Kayak 1 Pers. or 250 250 lbs. 0.9 PSI 0.9 PSI lbs. K3 QuikPak™ Kayak 1 Pers. or 250 250 lbs. 0.9 PSI 0.9 PSI...
  • Page 18: Motor Mounting

    MOTOR MOUNTING CAUTION! Do not mount a motor on any of these kayaks. CARE & STORAGE: These products are made of the highest quality materials and comply with NMMA (National Marine Manufacturers Association) regulations. Altering the construction of these products will void the limited warranty and could jeopardize the safety of the occupants.
  • Page 19 AirSeal is intended for use with 100% PVC (poly vinyl chloride) only. Do not use with any other material. You may purchase the Sevylor repair patch (Model # 2000003731) ® and Sevylor AirSeal (Model # 2000003730) by calling Coleman ® Customer Service at 1-800-835-3278 or going to www.sevylor.com.
  • Page 20: Guidelines For Usage

    See the 90 days and 1 year limited warranty pages for details. Products without a fabric covered hull have a limited 90 day warranty. Models as follows: K1 QuikPak™ Kayak. Products with a fabric covered hull have a limited 1 year warranty. Models as follows: K5 & K3 QuikPak™ Kayaks.
  • Page 21 Notes:...
  • Page 22 Notes:...
  • Page 23 What This Warranty Does Not Cover This warranty does not cover normal wear of parts, parts that are not genuine Sevylor parts, or ®...
  • Page 24: Year Limited Warranty

    What This Warranty Does Not Cover This warranty does not cover normal wear of parts, parts that are not genuine Sevylor ®...
