Samsung SyncMaster 773DFX User Manual

Samsung SyncMaster 773DFX User Manual

Samsung syncmaster 773dfx: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

SyncMaster 773DFX

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 773DFX

Summary of Contents for Samsung SyncMaster 773DFX

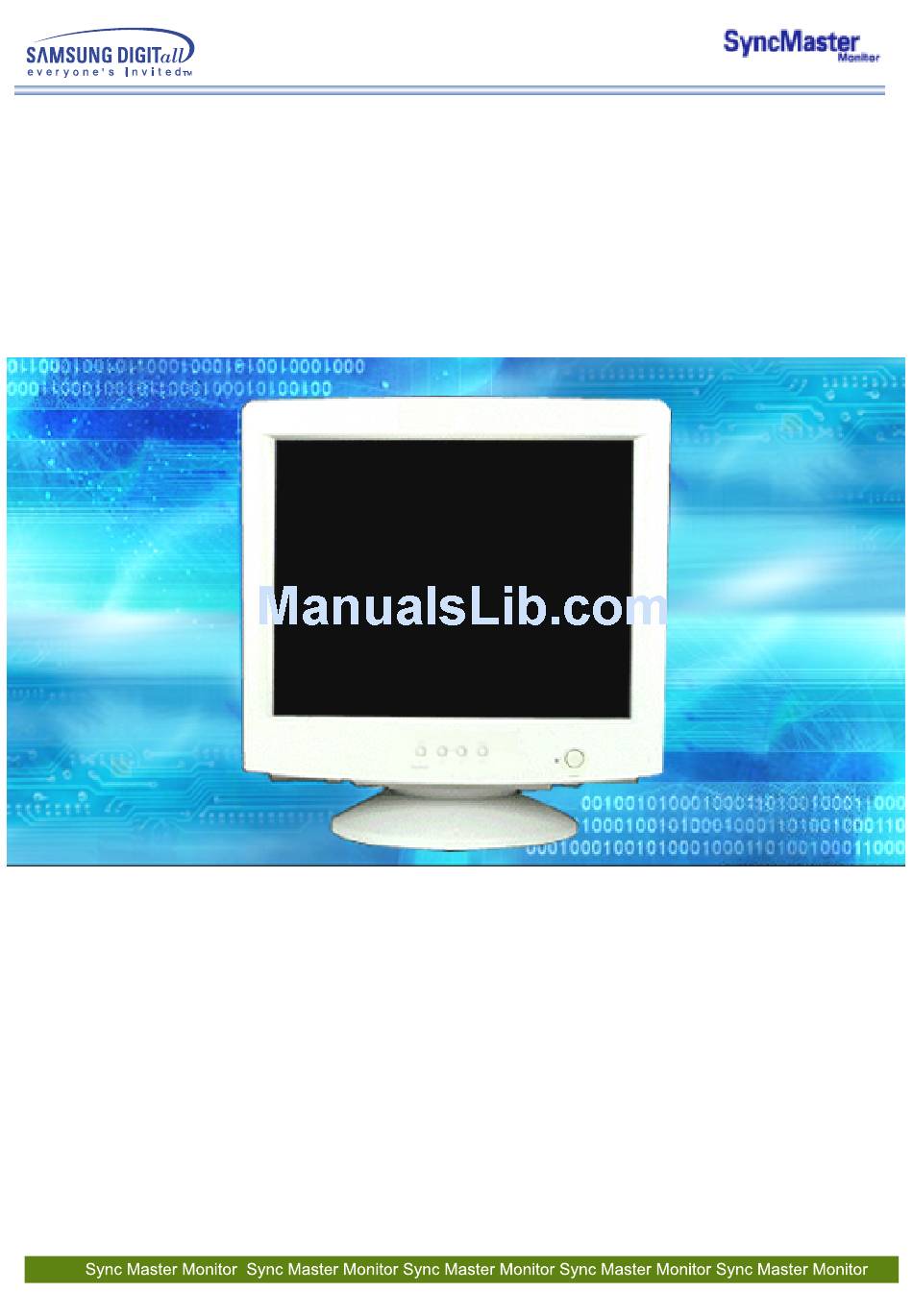

  • Page 1 SyncMaster 773DFX...
  • Page 2 Main Page Safety Instructions Notational Power Installation Cleaning Other Introduction Unpacking Front Rear Bottm Setup Connecting Your Monitor Base Installation On-Screen Display Troubleshooting Check List Q & A Self-Test Feature Check Specifications General Specifications PowerSaver Preset Timing Modes Information Service...
  • Page 3 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Important to read and understand at all times Disconnect the plug from the outlet Grounding to prevent an electric shock...
  • Page 4 When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. If the size of your monitor is small, or if the same image is present for long periods of time, you may see afterimages due to damage to the fluorescent substance on the inside of the CRT.

  • Page 5: Installation

    Do not cover the vents on the monitor cabinet. Bad ventilation may cause a breakdown or fire. Put your monitor in a location with low humidity and a minimum of dust. An electric shock or fire could result inside the monitor.
  • Page 6 You can prevent the coated CRT from being damaged or the monitor cabinet from being dissolved, cracked or discolored. You can buy a recommended detergent at any Samsung Service Center. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.
  • Page 7 Do not use or store inflammable substances near the monitor. This may cause an explosion or fire. Do not try to move the monitor by pulling on the wire or the signal cable. This may cause a breakdown, electric shock or a fire due to damage to the cable.
  • Page 8 Other Do not move the monitor right or left by pulling only the wire or the signal cable. This may cause a breakdown, electric shock or a fire due to damage to the cable. Never insert anything metallic into the monitor openings.
  • Page 9 Monitor and Stand Power Cord Stand Quick Setup Guide (Some models include a stand attached. ) Please make sure the following items are included with your monitor. If any items are Warranty Card missing, (Not available in all locations) contact your dealer.
  • Page 10 6. Power button Note: See PowerSaver functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. Use this button to Exit the active menu or the OSD. These buttons allow you to highlight and adjust items in the menu.
  • Page 11 2. Signal Cable Note: See Connecting Your Monitor Connect the power cord for your monitor to the power port on the back of the monitor. Connect the signal cable to the video port on your computer, video board, video card, or graphics card.
  • Page 12 Connect the signal cable to the video port on your computer, video board, video card, or graphics card. Connect the power cord for your monitor to the power port on the back of the monitor. You can separate the base from the monitor.

  • Page 13: Connecting Your Monitor

    Connecting Your Monitor 1. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2. Connect the signal cable to the video port on your computer, video board, video card, or graphics card.

  • Page 14: Tilt/Swivel Base

    Base Installation Tilt/Swivel Base With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle. Note: The base is detachable.
  • Page 15 2. Align the tabs on the base with the corresponding slots on the bottom of the monitor. 4. Push the base toward the front of the monitor until the release latch clicks into the locked position. * Do not bend the snap.
  • Page 16 5. Squeeze and pull up on the release latch on the base. Note: The base will align with the monitor slots in only one position. 6. Push the base toward the back of the monitor and lift up to remove the base.

  • Page 17: On Screen Display (Osd) Menu System

    On Screen Display (OSD) Menu System...

  • Page 18: How To Adjust

    On Screen Display (OSD) Menu System Menu How to adjust Brightness Adjust the Brightness. With the menu off, push the menu Push the - button or + button until the Brightness screen is displayed. Push the menu button to open the Brightness adjustment screen. Use the + button to increase the brightness or - button to decrease the brightness.
  • Page 19 Push the menu button to open the H-Position adjustment screen. Use the - and + buttons to change the Horizontal position of the monitor’s viewing area. V-Position Follow these instructions to change the Position of the monitor’s entire display.
  • Page 20 Push the - button or + button until the H-Size screen is displayed. Push the menu button to open the H-Size adjustment screen. Use the - and + buttons to change the Horizontal Size of the monitor’s viewing area. V-Size Follow these instructions to change the Size of the monitor’s entire display.
  • Page 21 On Screen Display (OSD) Menu System Menu How to adjust Pincushion Adjust the pincushion setting when the sides of the display are bowed in or bowed out With the menu off, push the menu Push the - button or + button until the Pincushion screen is displayed.
  • Page 22 On Screen Display (OSD) Menu System Menu How to adjust Parallelogram Adjust the parallelogram setting when the display is leaning left or right. With the menu off, push the menu Push the - button or + button until the Geometry screen is displayed.
  • Page 23 On Screen Display (OSD) Menu System Menu How to adjust Pinbalance Adjust the pinbalance setting when the sides of the display are bowed towards the left or right. With the menu off, push the menu Push the - button or + button until the Geometry screen is displayed.
  • Page 24 On Screen Display (OSD) Menu System Menu How to adjust Language Follow these steps to change the language used in the menu. You can choose one of ten languages. English,German,French, Italian, Portuguese, Spanish, Swedish, Russian, Polish, or Magyar. (Some OSD languages may not appear in some areas.) With the menu off, push the menu Push the - button or + button until the Language screen is displayed.
  • Page 25 On Screen Display (OSD) Menu System Menu How to adjust H-Moire A “Moiré” pattern can appear on your screen, looking like a series of concentric circles or arcs. To eliminate this pattern, use the clear moiré adjustments. With the menu off, push the menu Push the - button or + button until the Advanced screen is displayed.

  • Page 26: Video Input Level

    On Screen Display (OSD) Menu System Menu How to adjust Video Input Level Some video cards use video signals higher than 1.0V which causes the display to be very bright. For those video cards, use this feature to select the 1.0V Level. With the menu off, push the menu Push the - button or +button until the Advanced screen is displayed.

  • Page 27: Color Temperature

    On Screen Display (OSD) Menu System Menu How to adjust Color 1 - Color temperature is a measure of the 'warmth' of the image colors. The available range is between 5000 to 9300k. 1. Push the Menu button. 2. Push the button or [ - ] [ + ]...
  • Page 28 Color1, Color2 or sRGB. Zoom Follow these instructions to get a close-up or a longshot view of the monitor’s viewing area. With the menu off, push the menu Push the - button or + button until the Zoom screen is displayed.
  • Page 29 Recall adjustment screen. Push the + button to select Yes. If you don’t want to reset the monitor, use the - button to select No. Note If you have selected “Yes”, all settings listed above will be reset.

  • Page 30: Display Timing

    Note You can see the frequency(user control mode) used by the user, the polarity of the operational signals, the default frequency(default mode) set when you buy the monitor and the resolution level. OSD Lock/Unlock Push and hold in the menu to Lock the OSD.

  • Page 31: Troubleshooting

    The monitor is in PowerSaver mode. Press a key on the keyboard or move the mouse to activate the monitor and restore the image on the screen. Unlock the OSD by pressing the MENU button for at least 10 seconds.
  • Page 32 The signal from the video card exceeds the maximum resolution and frequency of the monitor. Move the monitor away from anything that can create a strong magnetic field. The screen image can appear to shake or vibrate at a particular time of day due to low supply voltage.
  • Page 33 Check the following items if there is trouble with the monitor. 1. Check if the power cord and the cable are properly connected to the computer. 2. Check if the computer beeps more than 3 times when booting.
  • Page 34 Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not leave any remains of the detergent nor scratch the case. Do not allow any water to go inside the monitor.

  • Page 35: Self-Test Feature Check

    4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system;...
  • Page 36 Self-Test Feature Check The location and the position of the monitor may influence the quality and other features of the monitor. 1. If there are any woofer speakers near the monitor, unplug and relocate the woofer to another 1 If th room.

  • Page 37: General Specifications

    Humidity 5% ~ 95%, non-condensing Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.
  • Page 38 This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard.

  • Page 39: Preset Timing Modes

    Preset Timing Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1.

  • Page 40: Service Center

    SILOM ROAD ,SILOM,BANGRAK BANGKOK 10500 TEL : 0-2635-2567 FAX : 0-2635-2556 http://www.samsungelectronics.co.th/ SOUTH AFRICA : Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa Tel : 0027-11-549-1621 Fax : 0027-11-549-1629 http://www.samsung.co.za/ UKRAINE : SAMSUNG ELECTRONICS REPRESENTATIVE OFFICE IN UKRAINE 4 Glybochitska str.
  • Page 41 Mexico D.F. Tel. 01 57 47 51 00 Fax. 01 57 47 52 02 RFC: SEM950215S98 http://www.samsung.com.mx/ IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO S.A. DE C.V. EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD. http://www.samsung.be/ http://www.samsung.nl/ SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO DEL. GUSTAVO A. MADERO C.P. 07700 MEXICO D.F.
  • Page 42 Terms Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm...
  • Page 43 Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL Listed personal computer with similar configuration. Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage rating.
  • Page 44 équipements produisant des interférences au Canada. • MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields. • European Notice (Europe only) Products with the CE Marking comply with both the EMC Directive (89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
  • Page 45 The length of time to reactivate the monitor shall be reasonable for the user. Labelled products must meet strict environmental demands, for example in respect of the reduction of...
  • Page 46 Regulatory TCO Development Unit 1996-11-29 On the page this folder you will find a brief summary of the environmental requirements met by this product. The complere environmental criteria document may be ordered from: TCO Development Unit S-11494 Stockholm Sweden Fax: +46 8 782 92 07 E-mail (Internet): development@tco.se Current information regarding TCO'95-approved and labelled products may also be obtained via the Internet, using the address:...
  • Page 47 Regulatory • TCO'99-Ecological requirements for personal computers (TCO'99 applied model only) Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 48 Regulatory TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire.
  • Page 49 Regulatory . TCO'03-Ecological requirements for personal computers (TCO'03 applied model only) Some of the features of the TCO’03 Display requirements: Ergonomics Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

  • Page 50: Natural Color

    For more information, refer to Help (F1) in the software program. How to install the Natural Color software Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program installation will be executed. Click Natural Color on the initial screen to install the Natural Color software.
  • Page 51 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
