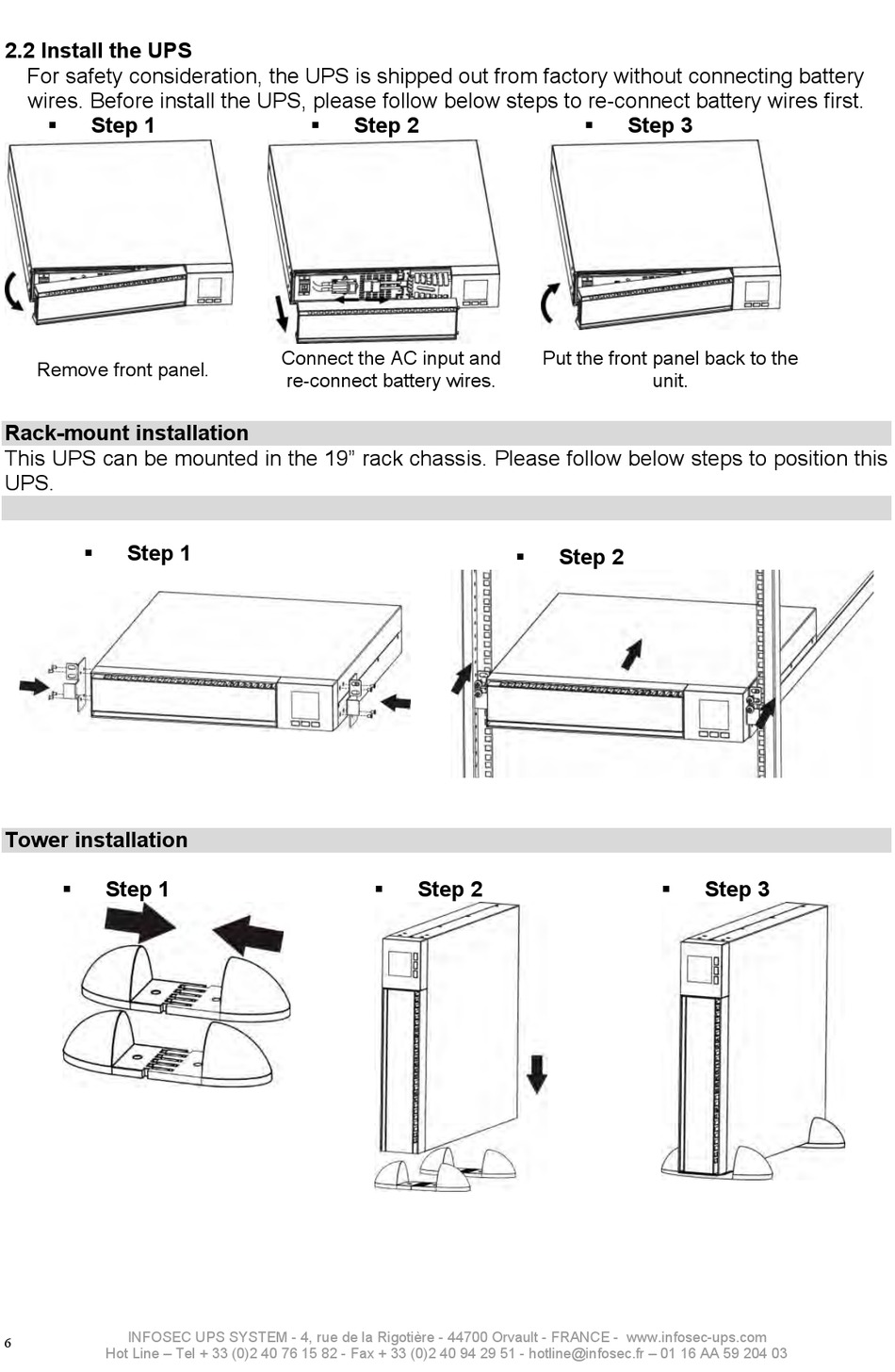

2.2 Install the UPS
For safety consideration, the UPS is shipped out from factory without connecting battery
wires. Before install the UPS, please follow below steps to re-connect battery wires first.
Step 1

Remove front panel.
Rack-mount installation
This UPS can be mounted in the 19" rack chassis. Please follow below steps to position this
UPS.
Step 1


Tower installation

Step 1

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
6
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 01 16 AA 59 204 03
Step 2

Connect the AC input and
re-connect battery wires.
Step 2

Step 3

Put the front panel back to the
unit.
Step 2


Step 3
