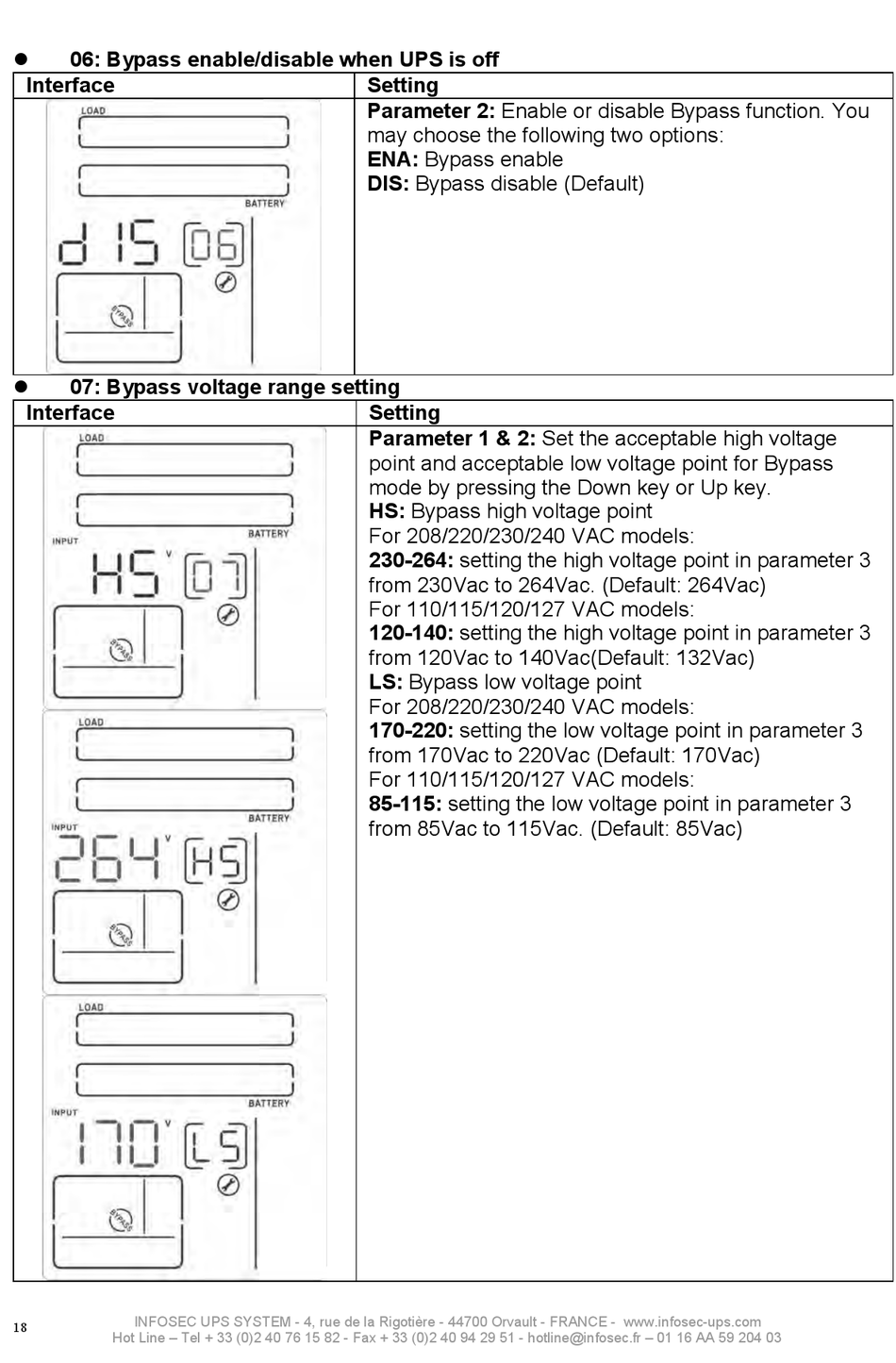

06: Bypass enable/disable when UPS is off

Interface
07: Bypass voltage range setting

Interface
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
18
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 01 16 AA 59 204 03
Setting
Parameter 2: Enable or disable Bypass function. You
may choose the following two options:
ENA: Bypass enable
DIS: Bypass disable (Default)
Setting
Parameter 1 & 2: Set the acceptable high voltage
point and acceptable low voltage point for Bypass
mode by pressing the Down key or Up key.
HS: Bypass high voltage point
For 208/220/230/240 VAC models:
230-264: setting the high voltage point in parameter 3
from 230Vac to 264Vac. (Default: 264Vac)
For 110/115/120/127 VAC models:
120-140: setting the high voltage point in parameter 3
from 120Vac to 140Vac(Default: 132Vac)
LS: Bypass low voltage point
For 208/220/230/240 VAC models:
170-220: setting the low voltage point in parameter 3
from 170Vac to 220Vac (Default: 170Vac)
For 110/115/120/127 VAC models:
85-115: setting the low voltage point in parameter 3
from 85Vac to 115Vac. (Default: 85Vac)
