2 . I N S T A L L A T I O N A N D S E T U P
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. Please keep the original package in a safe place for future use.

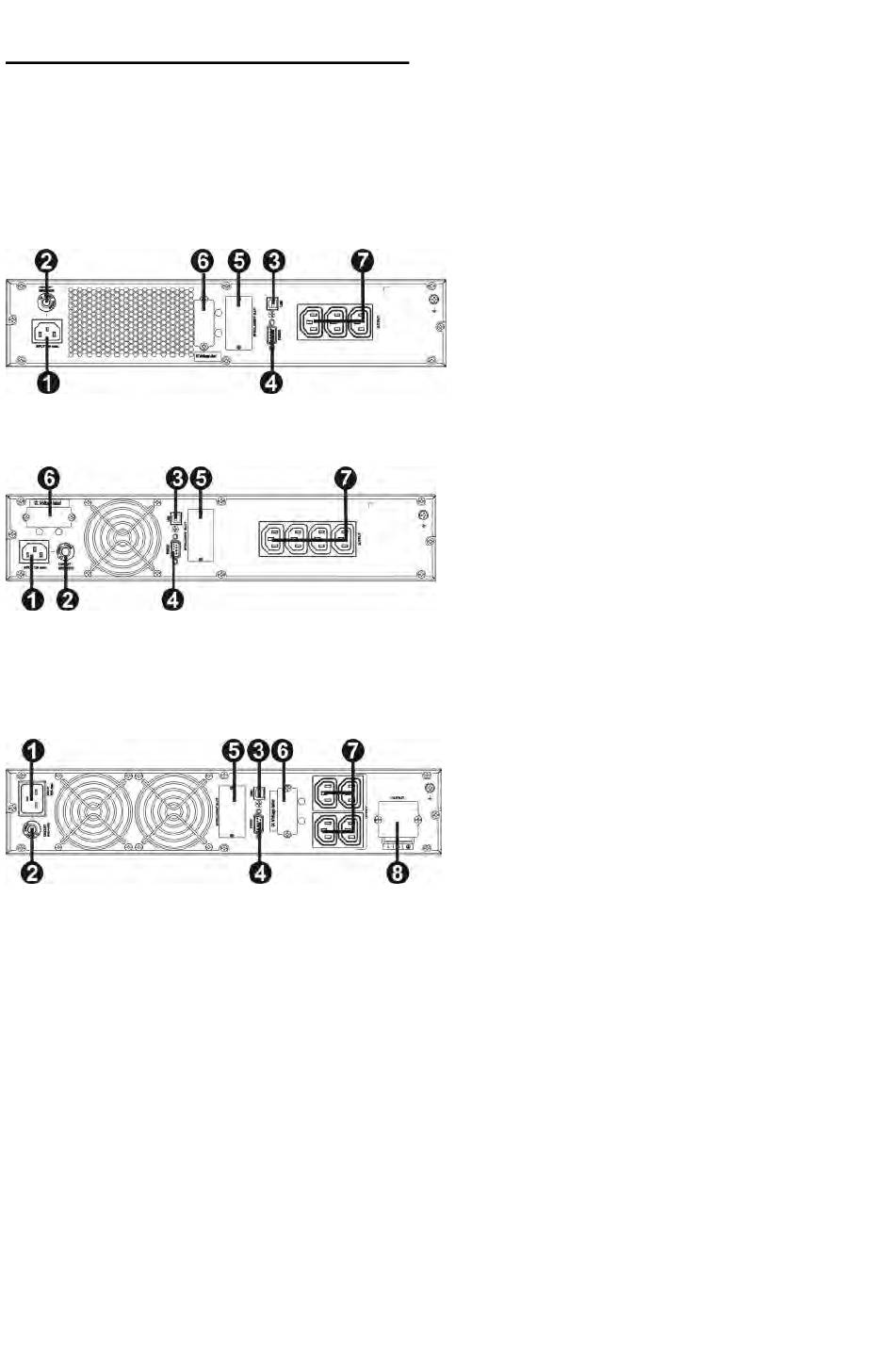

2.1 Rear panel view
E3 PRO 1000 RT
E3 PRO 2000 RT
E3 PRO 3000 RT
1. AC input
2. Input circuit breaker
3. USB communication port
4. RS-232 communication port
5. SNMP intelligent slot
6. External battery connection (option)
7. Output receptacles
8. Output terminal
