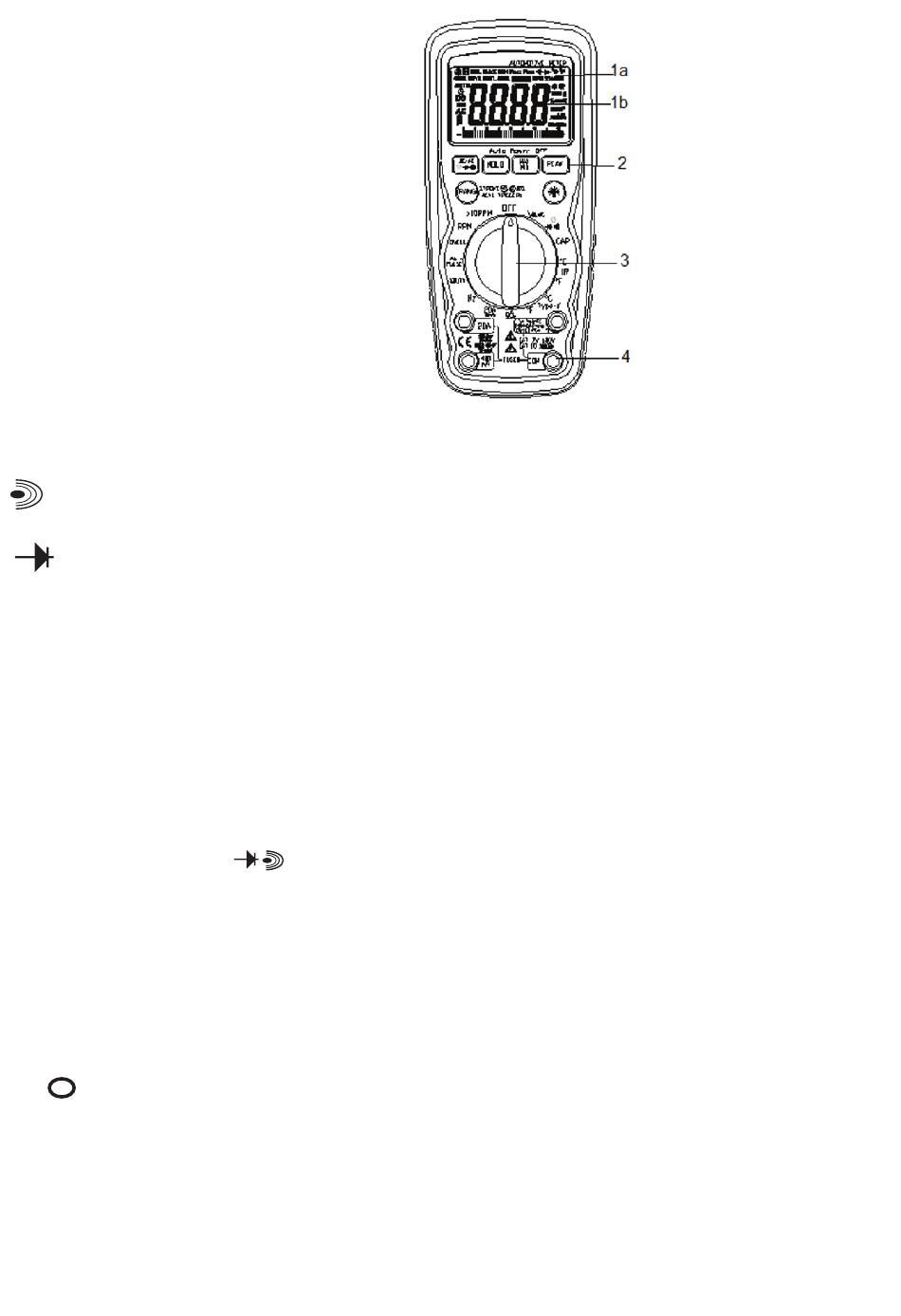

Product Overview
1. LCD Display
a. Symbols to identify function
b. Four-character digital display
2. Function Buttons
3. Rotary Selector Switch
4. Volts Terminal
SYMBOLS USED ON LCD DISPLAY
-8.8.8.8 LCD Display Reading
Continuity
BAT Low Battery
Diode
DATA HOLD Data Hold
AUTO Auto Ranging
AC Alternating Current or Voltage
DC Direct Current or Voltage
n nano (10-9) (capacitance)
µ micro (10-6) (amps, cap)
m milli (10-3) (volts, amps)

BUTTON FUNCTIONS

MODE BUTTON (DC/AC Ω
• Press the MODE button to select DC/AC Voltage, DC/AC Current, Resistance, Diode, Continuity or
Capacitance.
MANUAL RANGE & STROKE (4) (2) DIS #CYL TRIGGER ± BUTTON
• Press this RANGE button to select STROKE 4, 2DIS, Hz, %, ms±, CYL range
& V/A Resistance Manual Range.
• Press the RANGE button to turn on manual ranging.
• " " Will appear when the multi meter has changed modes.
• Continue to press the RANGE button to cycle through the ranges until you select the range you want.
- Range will be indicated by the units and decimal points location.
• Press and hold the RANGE button for 2 seconds to return to auto ranging.
A
k
F
M
Ω
Hz
V
%
oF
oC
IR TEMP
)
Amps
kilo (103) (ohms)
Farads (capacitance)
mega (106) (ohms)
Ohms
Hertz (frequency)
Volts
Percent (duty ratio)
Degrees Fahrenheit
Degrees Centigrade
Infrared Temperature
