- Page 1 P/No. DT150 TRUE RMS MULTIMETER...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference WARNING • The meter’s safety features may not protect the user if not used in accordance with the manufacturer’s instructions. • Keep fingers away from the metal probe tips when taking measurements. •... -
Page 3: Product Overview

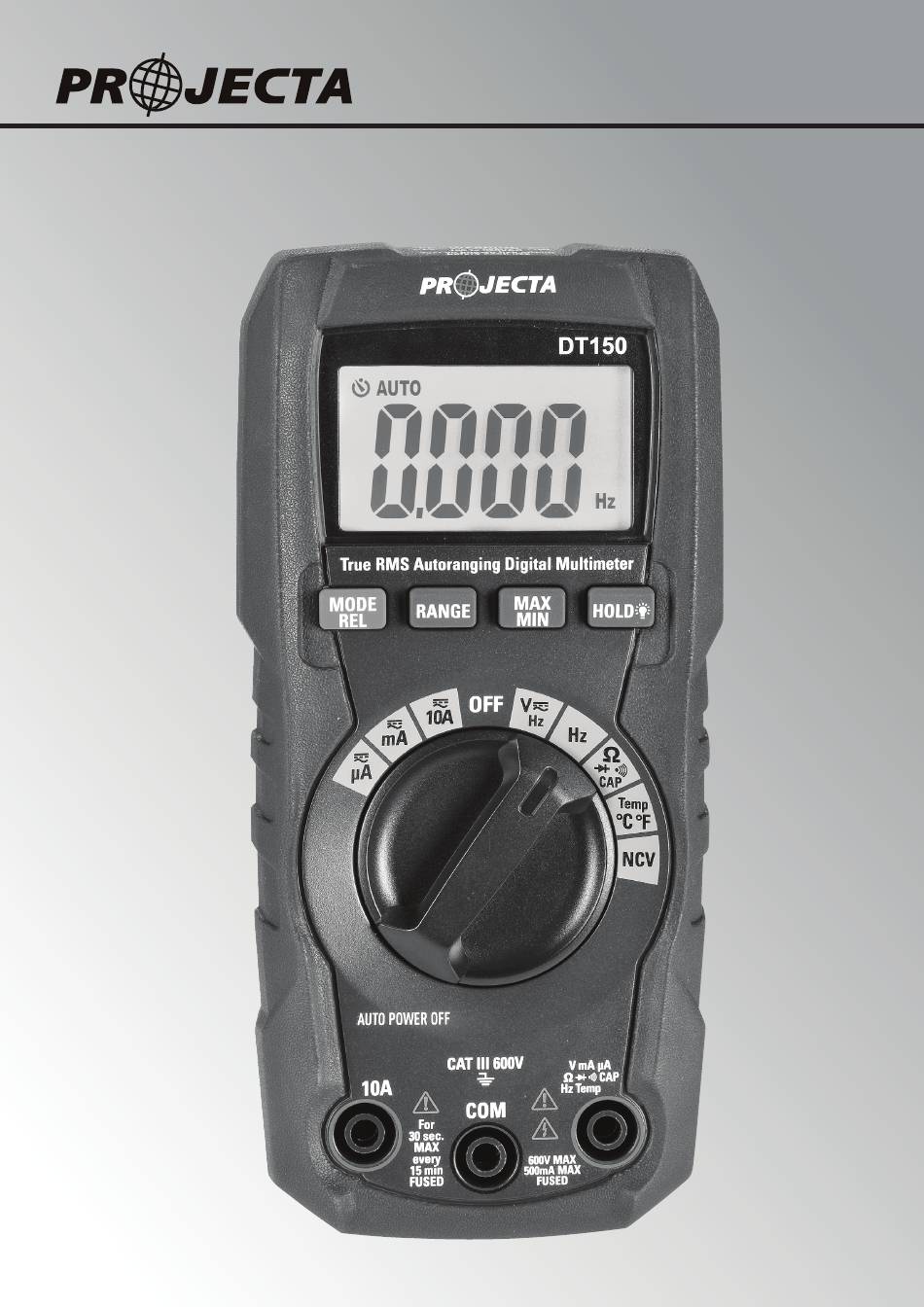

FUNCTIONS TRUE RMS Provides a more accurate measure of AC signals that are imperfect waveforms MULTI-TEST Test everything from voltage and frequency, resistance, and continuity along with the ability to test diodes and temperature NON-CONTACT VOLTAGE DETECTION Safely measure AC live voltage without even touching the circuit LCD DISPLAY An illuminated digital LCD display will ensure clear and precise data PRODUCT OVERVIEW... -
Page 4: Button Functions
BUTTON FUNCTIONS MODE AND REL (RELATIVE) BUTTON • Press the MODE button to select AC/DC Voltage, AC/DC Current, Frequency, Ohms, Diode Test, Continuity or Capacitance, Temperature. • Press the REL button for >2 seconds to turn on or off the Relative function. • The Relative function zeros out the reading difference between the actual measurement and the store reference value. NOTE: REL does not work on Frequency, Diode Test, Continuity RANGE BUTTON • When the meter is first turned on, it automatically goes into Auto Ranging. • This automatically selects the best range for the measurements being made and is generally the best mode for most measurements. - Page 5 AC/DC VOLTAGE (FREQUENCY) MEASUREMENT 1. Set the rotary function switch to the V AC/DC position. 2. To select AC or DC voltage, press the MODE button until the AC or DC symbol appears on the LCD display. 3. Insert the black test lead banana plug into the negative COM Input Jack; Insert the red test lead banana plug into the Positive Input Jack. 4. Touch the black test probe tip to the negative side of the circuit; Touch the red test probe tip to the positive side of the circuit. 5. Read the voltage on the LCD display. 6. Press the MODE Button to indicate Hz. 7. Read the frequency in the display.
-
Page 6: Ac/Dc Current Measurement
AC/DC CURRENT MEASUREMENT 1. Insert the black test lead banana plug into the COM Input Jack. 2. For current measurements up to 10A AC/DC, set the rotary function switch to the 10A position and insert the red test lead into the 10A Input Jack. 3. For current measurements up to 400mA AC/DC, set the rotary function switch to the mA position and insert the red test lead into the Positive Input Jack. -
Page 7: Diode Test
DIODE TEST 1. Set the rotary function switch to the CAP position. 2. Press the MODE button until the symbol appears on the LCD display. 3. Insert the black test lead banana plug into the negative COM Input Jack; Insert the red test lead into the Positive Input Jack. 4. Touch the test lead probes to the diode under test. 5. Forward voltage will indicate 0.4 to 0.7V on the LCD display; Reverse voltage will indicate “OL”; Shorted devices will indicate near 0 and an open device will indicate “OL” in both polarities. CONTINUITY CHECK 1. Set the rotary function switch to the CAP position. -
Page 8: Capacitance Measurement
CAPACITANCE MEASUREMENT 1. Set the rotatory function switch to the CAP position. 2. Press the MODE button until the “nF” symbol appears on the LCD display. 3. Insert the black test lead banana plug into the negative COM Input Jack; Insert the red test lead into the Positive Input Jack. 4. Touch the test leads to the capacitor to be tested, wait until the readings settle before ending the test. 5. Read the capacitance value in the display. TEMPERATURE MEASUREMENT 1. -
Page 9: Non-Contact Ac Voltage Detection
NON-CONTACT AC VOLTAGE DETECTION 1. Set the rotary function switch to the NCV position. 2. Hold the detector close to the AC voltage being tested. 3. If no signal is detected, the LCD will show “EF”, NCV indicator light will not flash and the buzzer will not sound. 4. According to the detected signal strength, LCD displays different horizontal lines. • When the signal is strongest, four horizontal lines with appear on the LCD display. • When the signal is weakest, only one line horizontal line will appear. • Meanwhile, NCV indicator light flashes and the buzzer make a different sound. NOTE: The sensing level varies with the distance between the sensing part and the measured AC power cord. NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. -
Page 10: General Specifications
GENERAL SPECIFICATIONS Insulation Class 2, Double Insulation Diode Test Test current approx.1 mA , open circuit voltage of 2V typical Continuity Test Audible signal if the resistance is <50Ω Low Battery Indication “ ” is displayed Display 4000 count LCD Over Range Indication "OL'' is displayed Polarity Minus symbol"-" is displayed for negative polarity Measurement Rate 3 readings per second, nominal Auto Power Off... - Page 11 FUNCTION RANGE RESOLUTION ACCURACY 400.0µA 0.1µA 4000µA 1µA ± (1.0% + 5 digits) 40.00mA 0.01mA DC Current 400.0mA 0.1mA ± (1.0% + 8 digits) 4.000A 0.001A ± (2.0% + 3 digits) 10.00A 0.01A ± (2.0% + 5 digits) -18 to 1000oC ± (1.5% +5oC) Temperature 0 to 1832oF ± (1.5% + 9oF) 400.0Ω 0.1Ω 4.000kΩ 0.001kΩ ± (1.2% + 5 digits) 40.00kΩ 0.01kΩ Resistance 400.0kΩ 0.1kΩ...
- Page 12 WARRANTY STATEMENT Brown & Watson International Pty Ltd (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of three (3) years from the date of the original purchase by the customer as marked on the invoice. This warranty does not cover ordinary wear and tear, abuse, alteration of products or damage caused by the purchaser. To make a warranty claim the consumer must deliver the product at their cost to the original place of purchase or to any other place which may be nominated by either BWI or the retailer from where the product was bought in order that the warranty assessment may be performed.
