WESTEK TM16DOLB - Heavy Duty Programmable Outdoor Stake Timer Manual

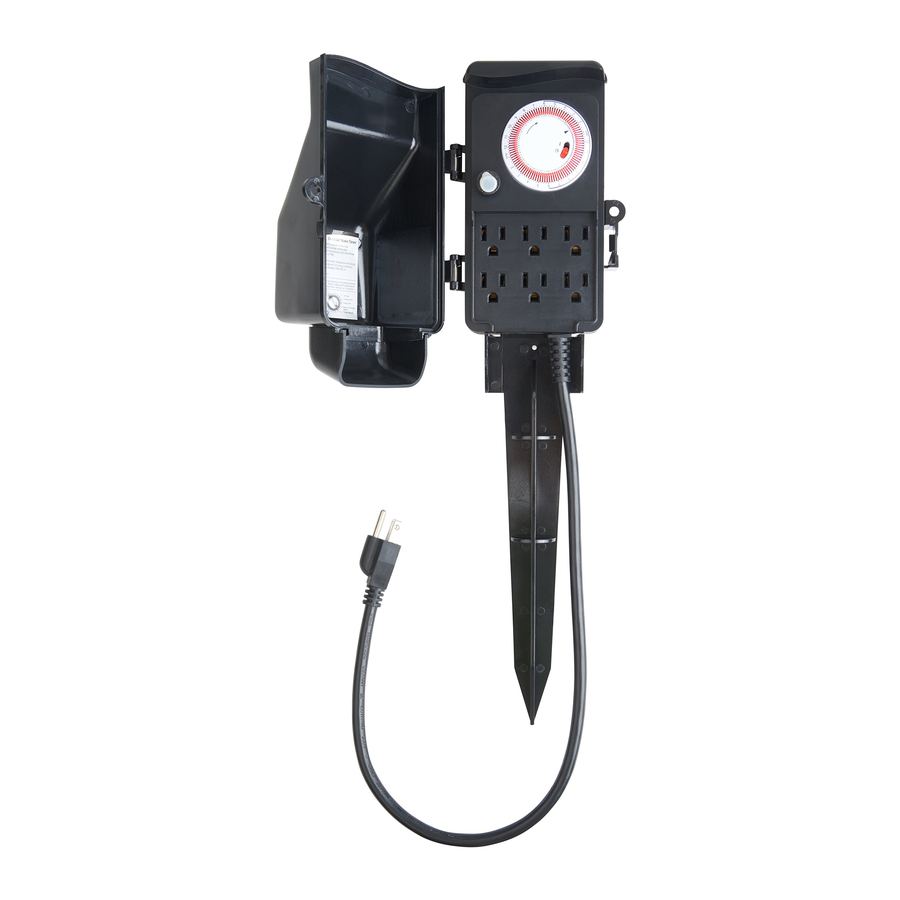

Parts and Controls

Parts and Controls

Getting Started

  1. All six receptacles are controlled by Outdoor Stake Timer.
  2. Outdoor Stake Timer comes with 96 Segment Pins enabling you to turn your lamps/appliances ON/OFF every 15 minutes. Positioning of each segment determines if lamps/appliances are ON or OFF during selected time period.

Programming ON/OFF Times

  1. Move segment pins corresponding to desired ON times toward perimeter of dial.
  2. Move segment pins corresponding to desired OFF times toward center of dial.
  3. Turn dial clockwise one or more complete revolutions until arrow is pointing at present time of day (AM or PM).
  4. Turn lamps/appliances on.
  5. Plug lamps/appliances into timer receptacles. Close and latch Outdoor Stake Timer cover to protect receptacles from moisture. If using outdoors, plug Timer Power Cord into GFCI protected outlet, suitable for wet locations.
  6. Use the Manual Override Switch to select Always ON or Timer Mode operating modes. The Always ON position turns on all lamps/appliances plugged into Outdoor Stake Timer. The Timer Mode position, indicated by clock icon, turns lamps/appliances ON/OFF at desired programmed times.
  7. Reset Outdoor Stake Timer in case of power failure (Step 3).

Circuit Breaker

In the event of overloaded or shorted circuit, Outdoor Stake Timer is equipped with a Circuit Breaker to shut off power to lamps/appliances. If Outdoor Stake Timer does not function properly, Circuit Breaker may have been activated. To reset:

  1. Unplug Outdoor Stake Timer from power source.
  2. Check to make sure that combined load of lamps/appliances does not exceed rated capacity of Outdoor Stake Timer. If so, disconnect items until electrical load is within prescribed limits.
  3. Press Circuit Breaker button to reset. Plug Outdoor Stake Timer back into outlet and test by turning Manual Override Switch to ON. Return to Timer Mode if load is operating properly.

Wall Mounting

  1. If Outdoor Stake Timer is mounted on outside wall or post, it must be at least 3 feet above ground and close enough to be plugged into an electrical outlet receptacle suitable for wet locations.
  2. Drive two 3/4" #6 screws (sold separately) 1-7/8" apart along horizontal line 6" above location of bottom of Outdoor Stake Timer. Leave screw heads 1/4" above mounting surface.
  3. Place keyhole slots over screws and push Outdoor Stake Timer down to lock into place.

Stake Mounting

  1. Align four tabs on stake with four holes on back of timer. Push tabs down, then up, until they lock into place.
    Stake Mounting - Step 1 - Lock the tabs
  2. Stake should be inserted into ground up to lower round Barrier on stake. Do not use hammer or other object to drive stake into ground.
    Stake Mounting - Step 2 - Inserting the stake

Latching Cover

Outdoor Stake Timer door is spring loaded and will automatically close. If the cord(s) plugged into receptacles prevent door from closing, gently grasp door and rear of the timer on opposite side of hinges. Squeeze until door latch engages. Outdoor Stake Timer can be locked to discourage tampering with cords or dial. Simply close Cover and insert lock (sold separately) through loop on Cover and Timer Base.

burn hazardburn hazard
Risk of Fire or Shock

  • Disregarding cautions could result in fire, damage to tools, or cause fatal shock.
  • This product is not intended for use with power tools such as hedge trimmers, weed trimmers and lawn mowers. Use care when operating lawn equipment – cord blends easily into grass and foliage.
  • Always close Cover.
  • Do not modify, splice or repair. Discard if damaged.
  • Keep away from children.
  • Fully extend Power Cord before using.
  • Do not use Outdoor Stake Timer with heaters or similar appliances.
  • Always ensure that plugs of lamps/appliances are fully inserted into Outdoor Stake Timer's receptacles.
  • To clean Outdoor Stake Timer, unplug from wall outlet and wipe with dry cloth.
  • When using with extension cord or devices, do not exceed their rating or 15 amps. (10 amps for incandescant lamps)

burn hazardburn hazard
RISK OF FIRE OR SHOCK. NOT FOR PERMANENT INSTALLATION. USE ONLY WITH A TOTAL OF 10 AMPERES MAXIMUM FOR CHRISTMAS TREE OR OTHER SEASONAL LIGHTING PRODUCTS. DO NOT INSTALL OR USE THIS PRODUCT FOR MORE THAN A 90 DAY PERIOD.
IF USING AN OUTDOOR-USE CORD SET FOR AN EXTENDED PERIOD OF TIME (GREATER THAN 90 DAYS), PLEASE CONSIDER HARD WIRING A PERMANENT OUTDOOR USE RECEPTACLE RATED FOR YEAR-ROUND USE IN THE AREA THAT POWER IS NEEDED. PLEASE CONTACT A LICENSED ELECTRICIAN FOR PROPER INSTALLATION OF PERMANENT WIRING. IF USING CHRISTMAS TREE OR SEASONAL LIGHTING PRODUCTS THAT ARE NOT MARKED WITH AN AMPERE RATING, CONNECT NO MORE THAN 85 SCREW–BASED LAMPS (C7 OR C9) OR 10 STRINGS WITH MIDGET (PUSH IN) LAMPS TO THIS TIMER.

  • WHEN EXTENSION CORD IS USED, A 3/14 OR 3/12 GAUGE CORD SUITABLE FOR OUTDOOR USE IS REQUIRED.
  • MAXIMUM LENGTH OF EXTENSION CORD CANNOT EXCEED 50 FEET.
  • SUITABLE FOR WET LOCATIONS AND DIRECT EXPOSURE TO RAIN, NOT FOR WATER IMMERSION. STORE IN A DRY LOCATION WHEN NOT IN USE.

Limited One Year Warranty

AmerTac warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. AmerTac's obligations are limited to repairing or replacing any defective unit and are effective only if such units are returned within one year of the purchase date to AmerTac, 250 Boulder Drive, Breinigsville, PA 18031. Warranty void if damage is due to misuse or improper installation. In no circumstance will AmerTac be liable for consequential or incidental damages relating in any way to this product.

Specifications

Model TM16DOLB
120V~, 60 HZ
10 amp (1200 W)Tungsten
15 amp (1800 W) Resistive
Type 1.C Time switch for inline cord control

Questions? 201.661.9944
©2010 AmerTac
250 Boulder Drive

Breinigsville, PA 18031
www.amertac.com

Made in China
